Calibration equipment for apples, Poltava region.

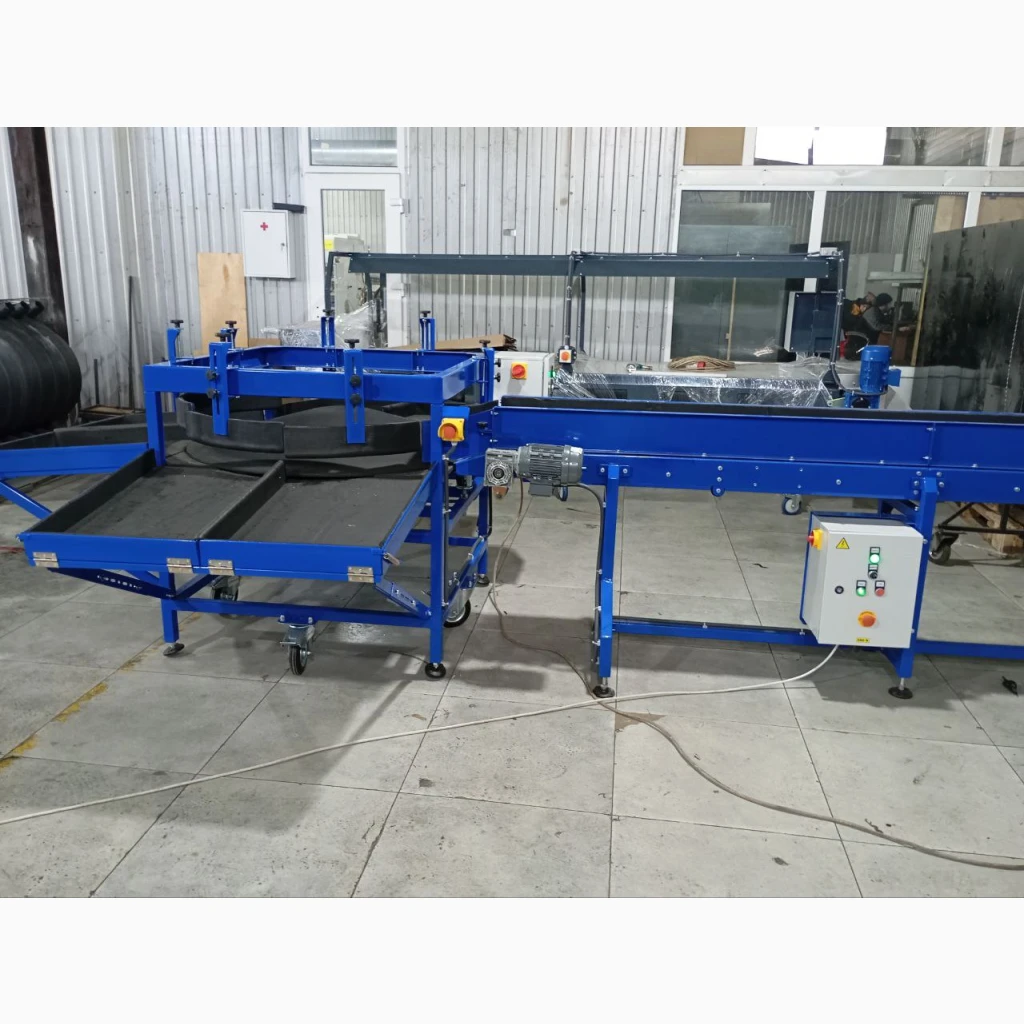

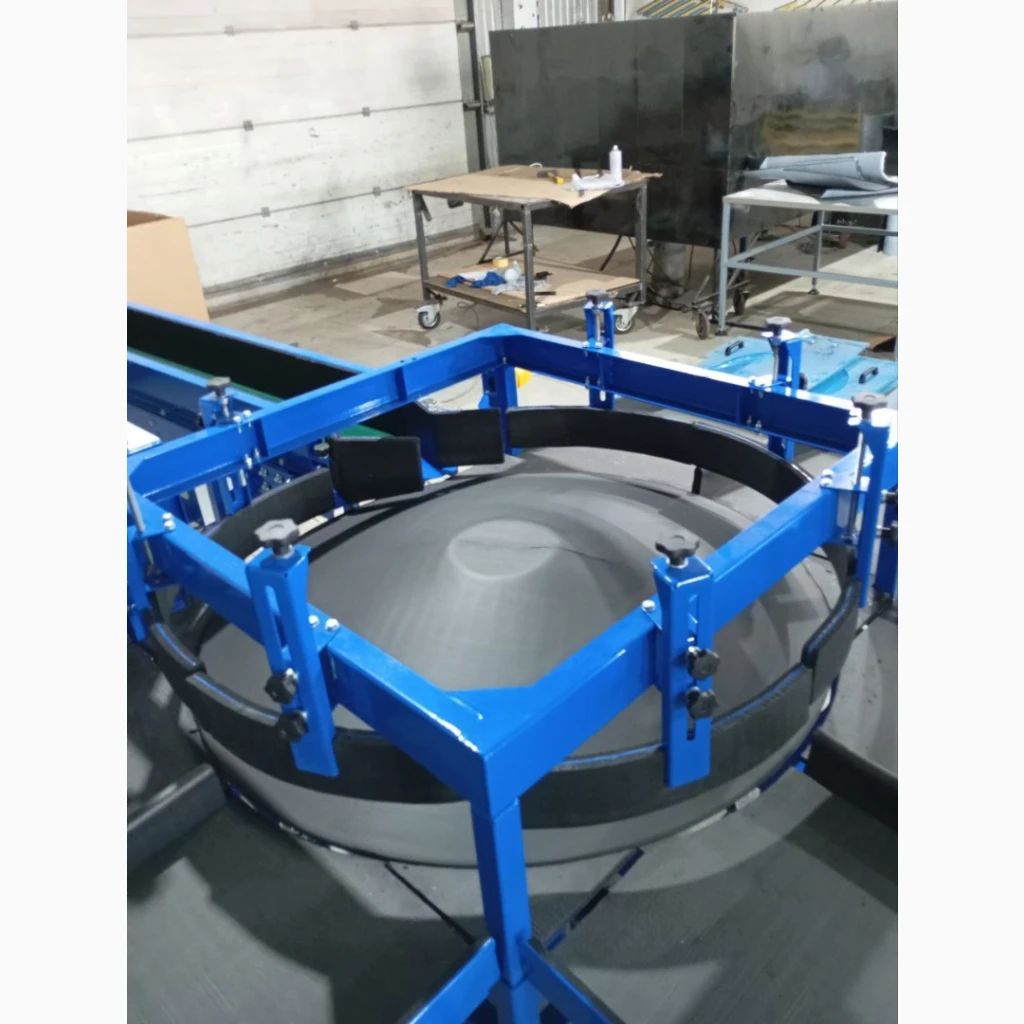

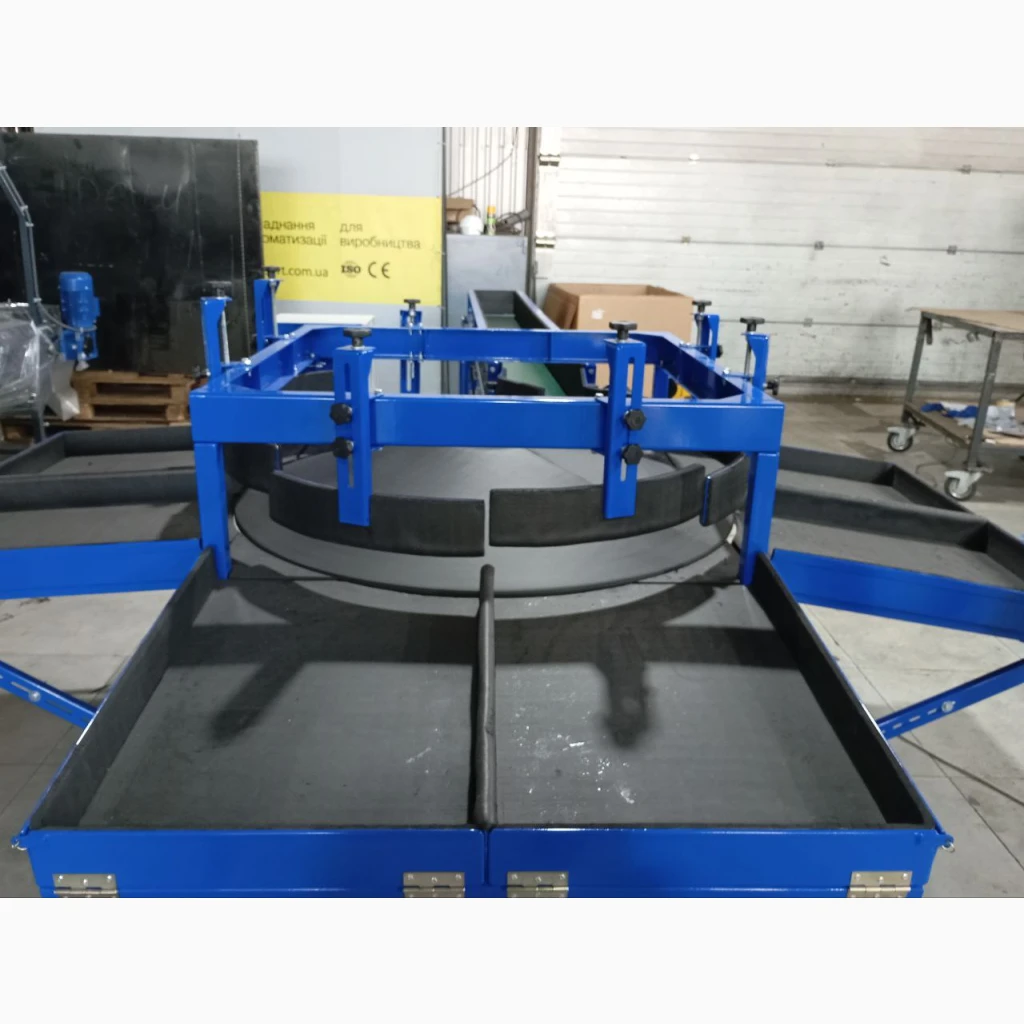

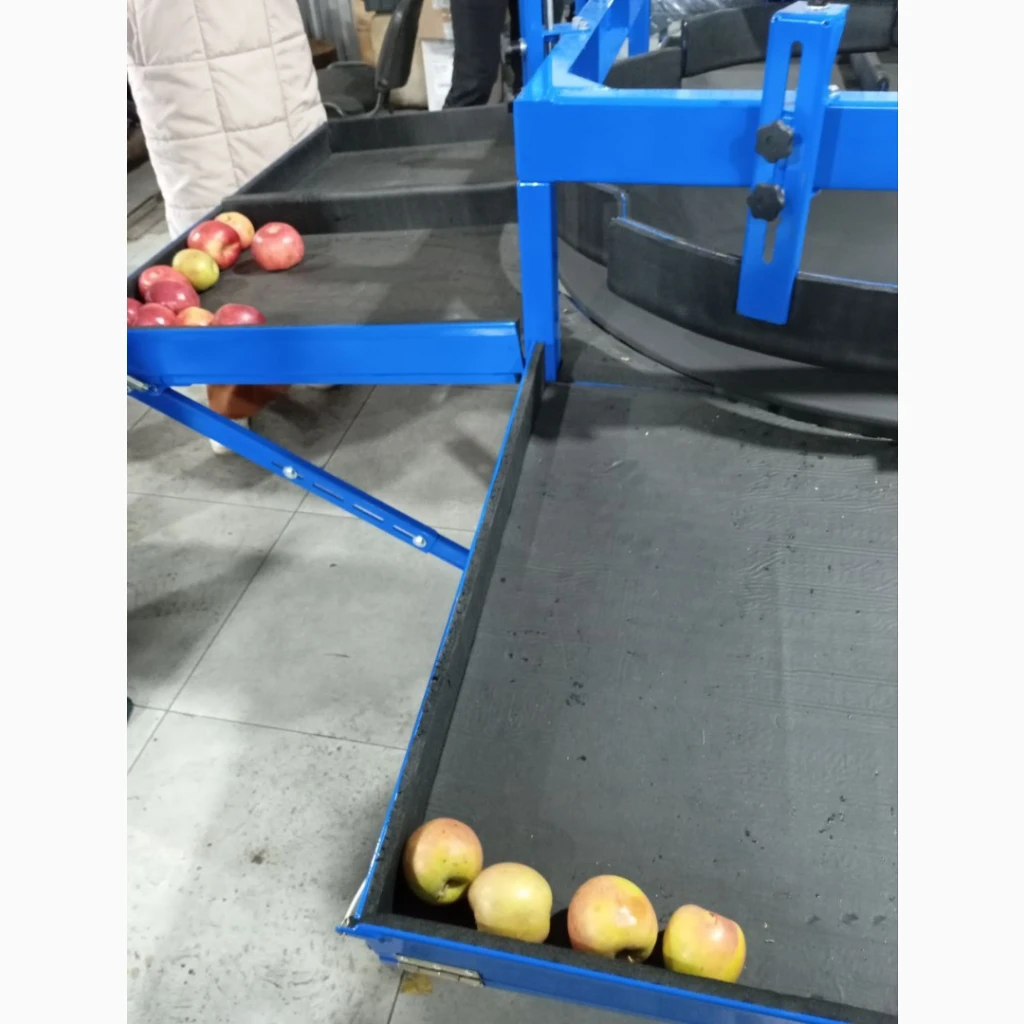

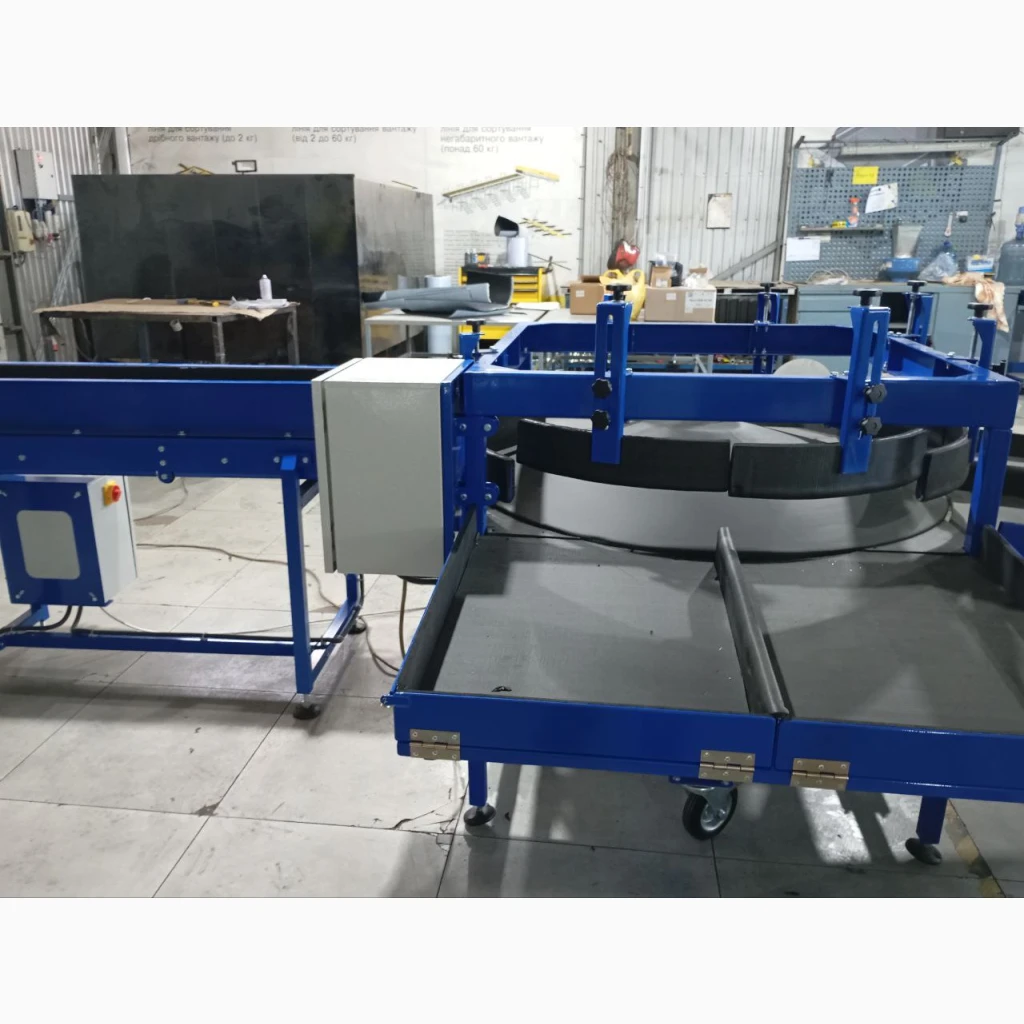

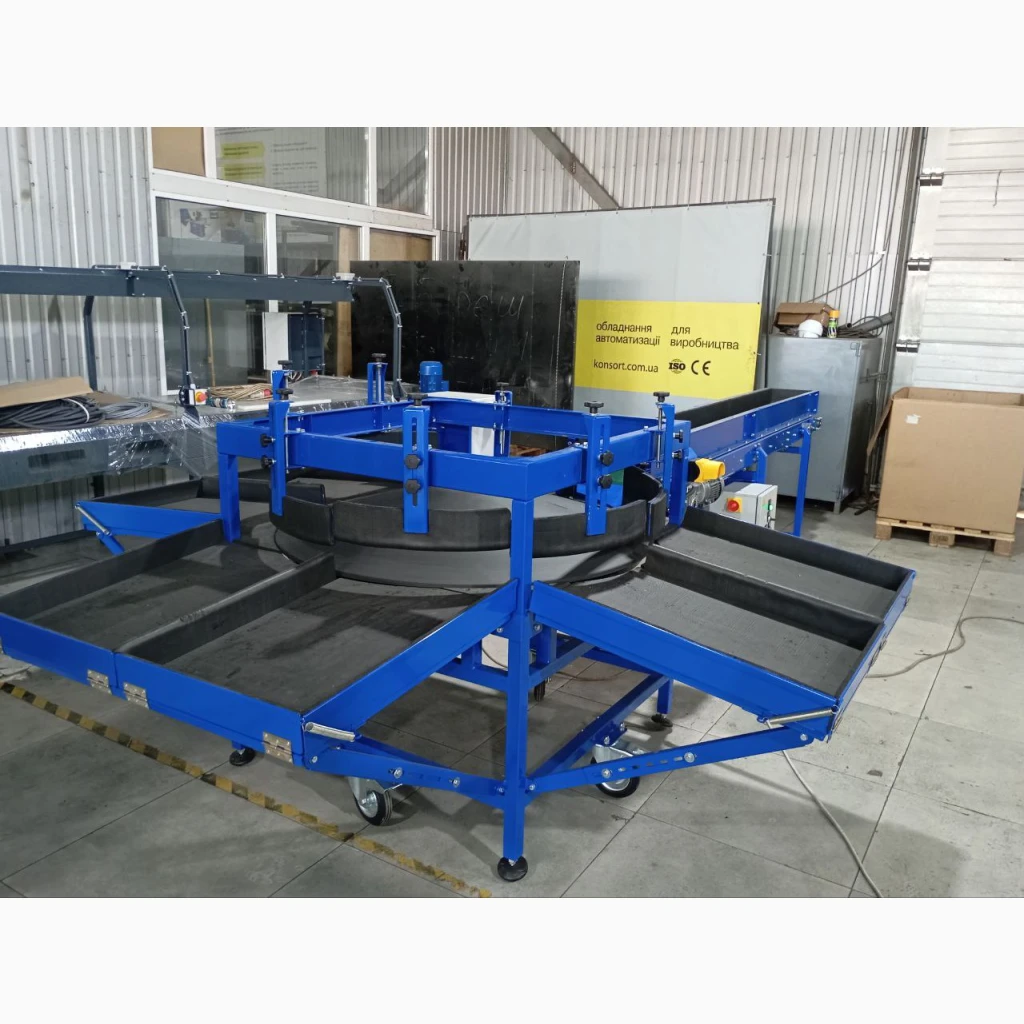

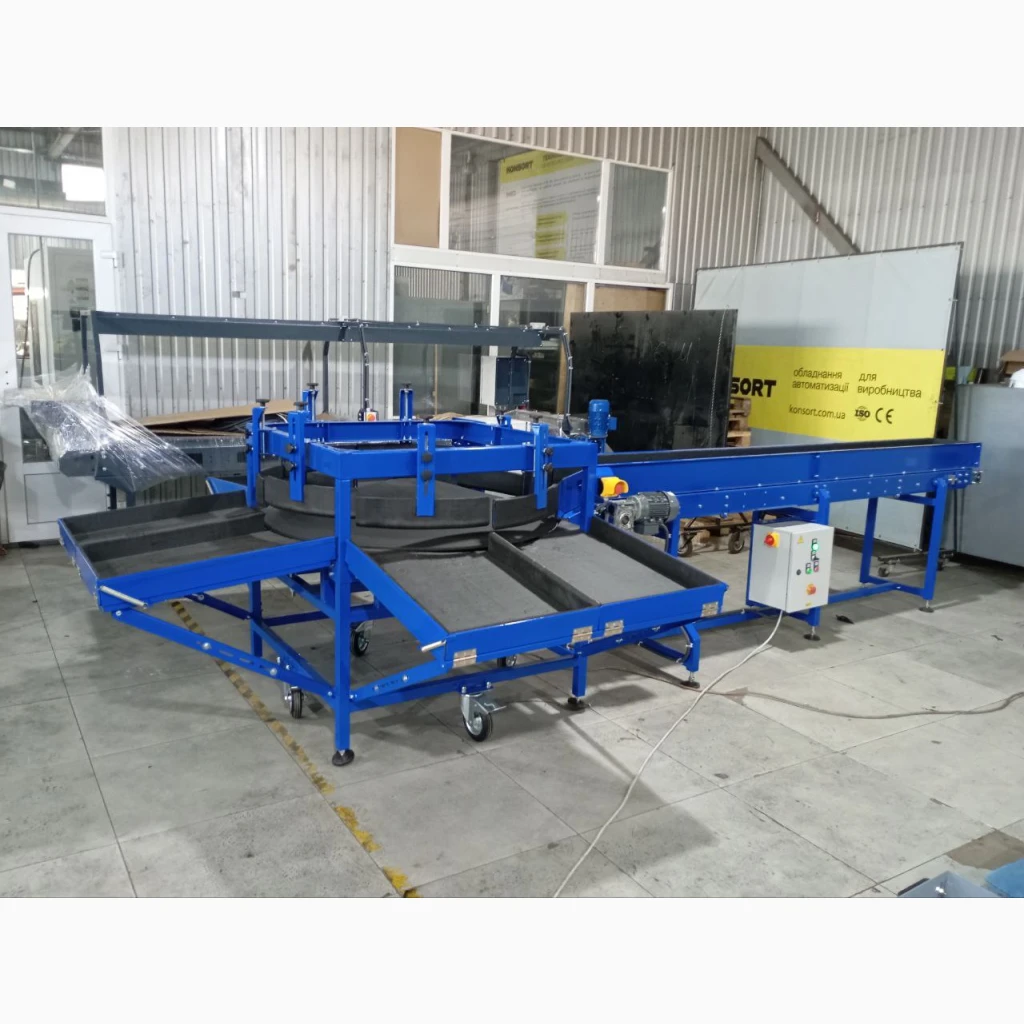

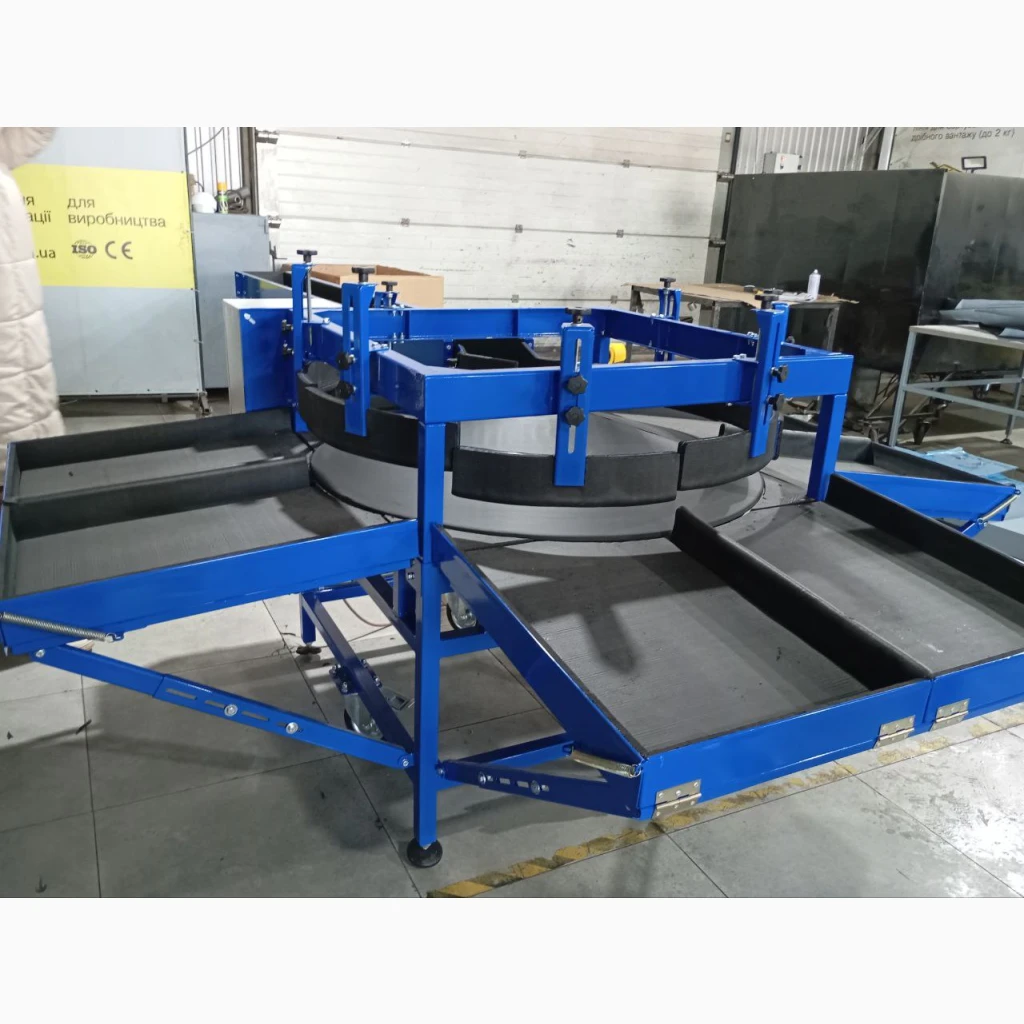

Calibrator forapples + feeding belt conveyor for sorting apples by size

Product description:
We offer a calibrator for apples complete with a feeding belt conveyor. The equipment is designed for automatic sorting of apples by caliber with uniform and careful supply of products. Ideal for horticulture, sorting lines, warehouses and fruit processing plants.

The design ensures accurate calibration, reliable operation and gentle handling of the product thanks to soft contact surfaces.

Technical characteristics of the calibrator:

Dimensions: 2500 × 2500 × 1260 mm

Input tray: 850 mm

Number of fractions: 6

Sizes of fractions: 60, 70, 80, 90, 100, 100+ mm

Frame material: steel, painted RAL 5005

Contact surfaces: coated with food grade rubber 10 mm

Gear motor: power 0.55 kV
(//tractor-service.com)
Height adjustment: +-50 mm

Control cabinet: IP54

Technical characteristics of the conveyor:

Type: tape, horizontal

Length: 3000 mm

Tape width: 250 mm

Loading height: 850 mm

Material: painted steel

Ribbon color: green

Productivity: 10-50 starts/h

Purpose: supplying apples to the calibrator

We can also equip this equipment with a container tipper for feeding onto the conveyor.
