Nws2 screw-type weighing dispenser - dosing into bags, cardboard boxes, Kyiv

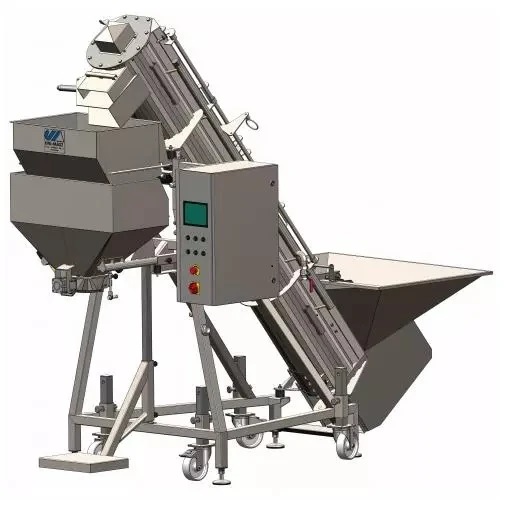

WEIGHT DOSER OF SCREW TYPE - DOSING INTO BAGS, CARDBOARD BOXES

The device is designed for semi-automatic weighing of frozen fruits and vegetables and filling in bags and cardboard boxes.
Supplying the product to the intermediate weighing hopper using a screw conveyor.
Weighted product: frozen fruits and vegetables such as strawberries, cherries, currants, blueberries, raspberry crumble and vegetable cubes. The product is supplied by a closed screw conveyor.
The device is especially recommended for small products such as raspberry groats, pellets/balls and fruit and vegetable cubes (high precision and hygiene).

The specially formed discharge chute of the screw conveyor provides rough and accurate weighing.
Intermediate weighing hopper with a pneumatically controlled closing tilt system.
Manual placement of packages under the unloading hopper.
Simple communication through the touch control panel, real-time visualization and control of the device (type of packaging, setting of weighing parameters,weight reading in real-time, etc.).

Intelligent control software that allows cooperation with external devices (bag installation robot, bag removal conveyors, bag sewing machine)
(//tractor-service.com)
The possibility of washing the device in a closed system using spray nozzles with an external connection to water.

Weighing range ............ 30 kg.
Dosing accuracy ............ +/- 0.04 kg (raspberry crumb)
Portion weight ........... (5 - 25) kg
Productivity ............ (3-5) pcs./min.
- for bags of 25 kg, max. productivity ............ 4.5 t/h
- for boxes (10-15) kg, max. productivity ...... 3 t/h
Operating temperature ............ (from -10 to + 40)°C;
Dimensions (height / width / length) ............(approx. 2650 / 1430 / 2950) mm
Feeding height / output height ...........1000÷1150 / 1100÷1250 mm
The structure is mounted on adjustable legs, transportwheels for easy positioning
Power supply ...........~380 V AC, 50 Hz
Stainless control panel mounted on selected side
THE ENTIRE MACHINE IS MADE OF FOOD-GRADE STAINLESS STEEL.
