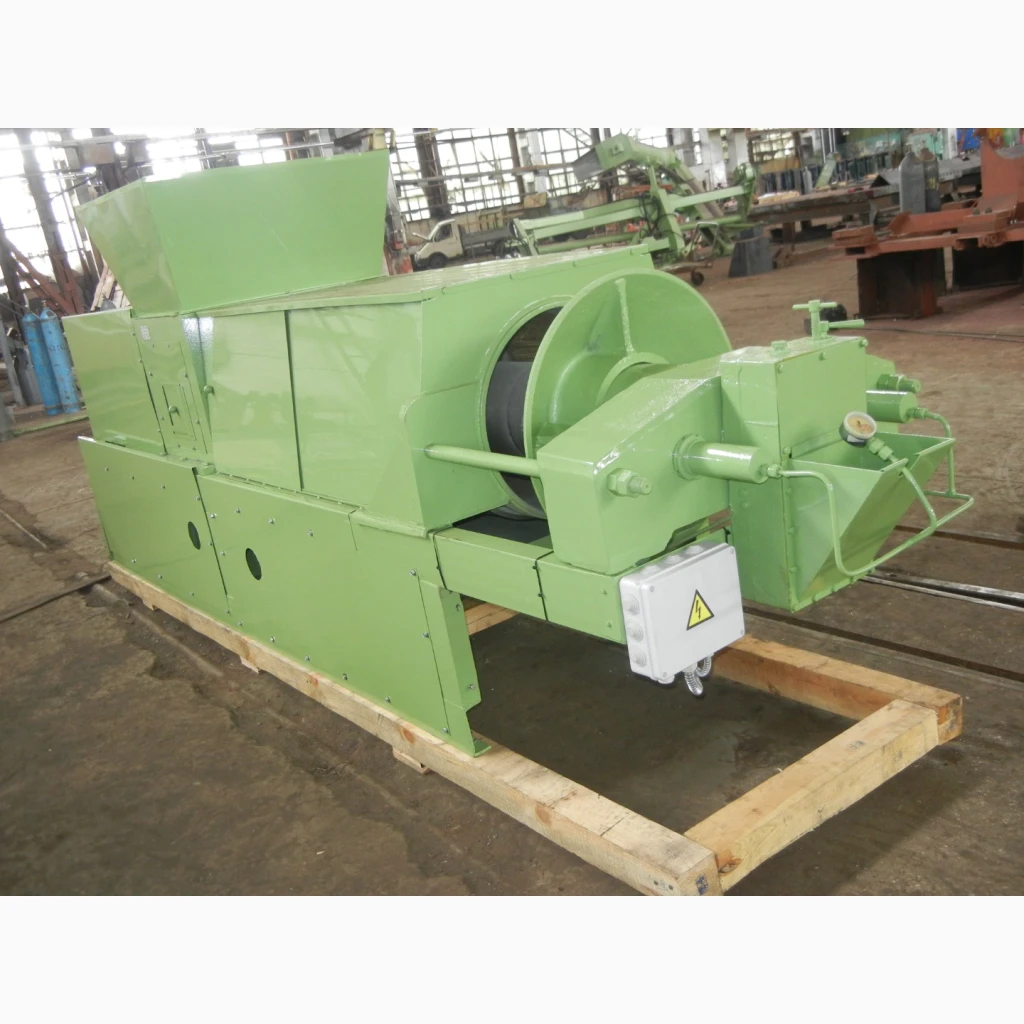

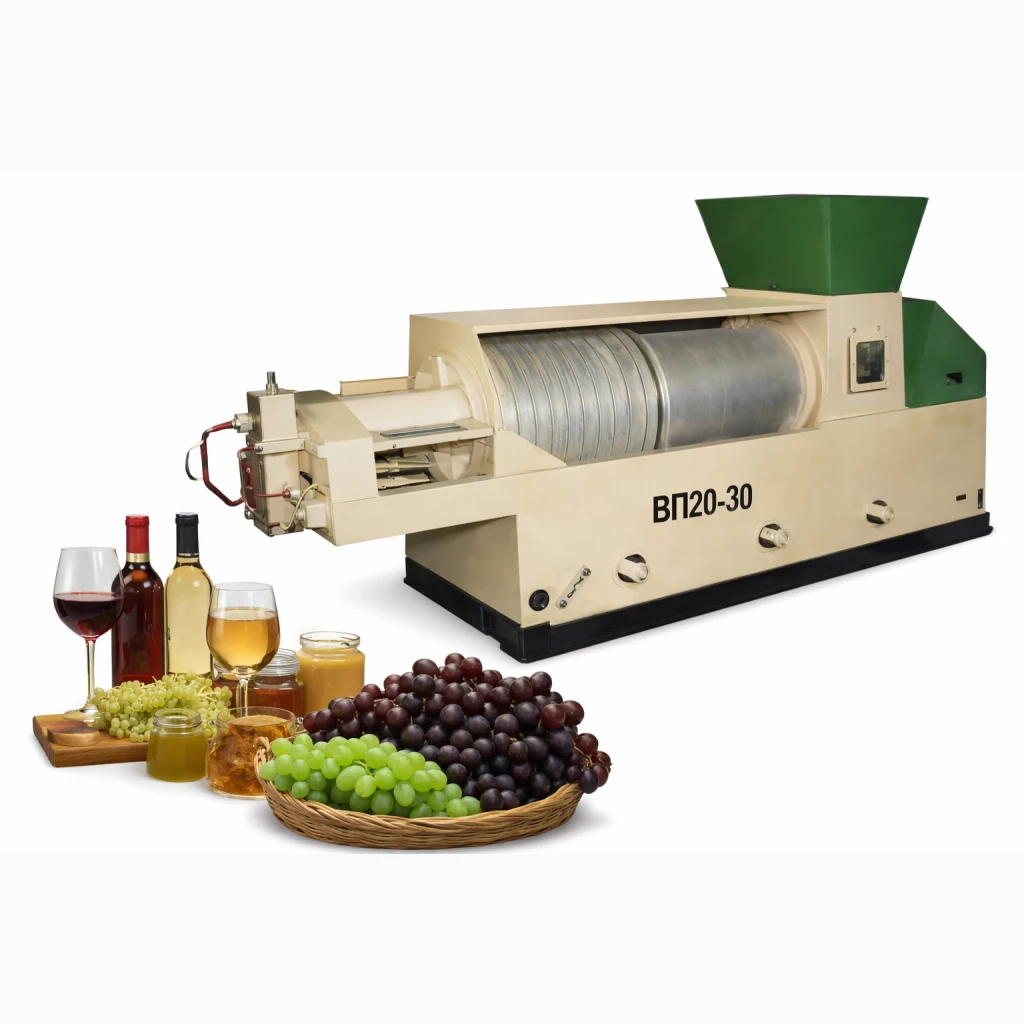

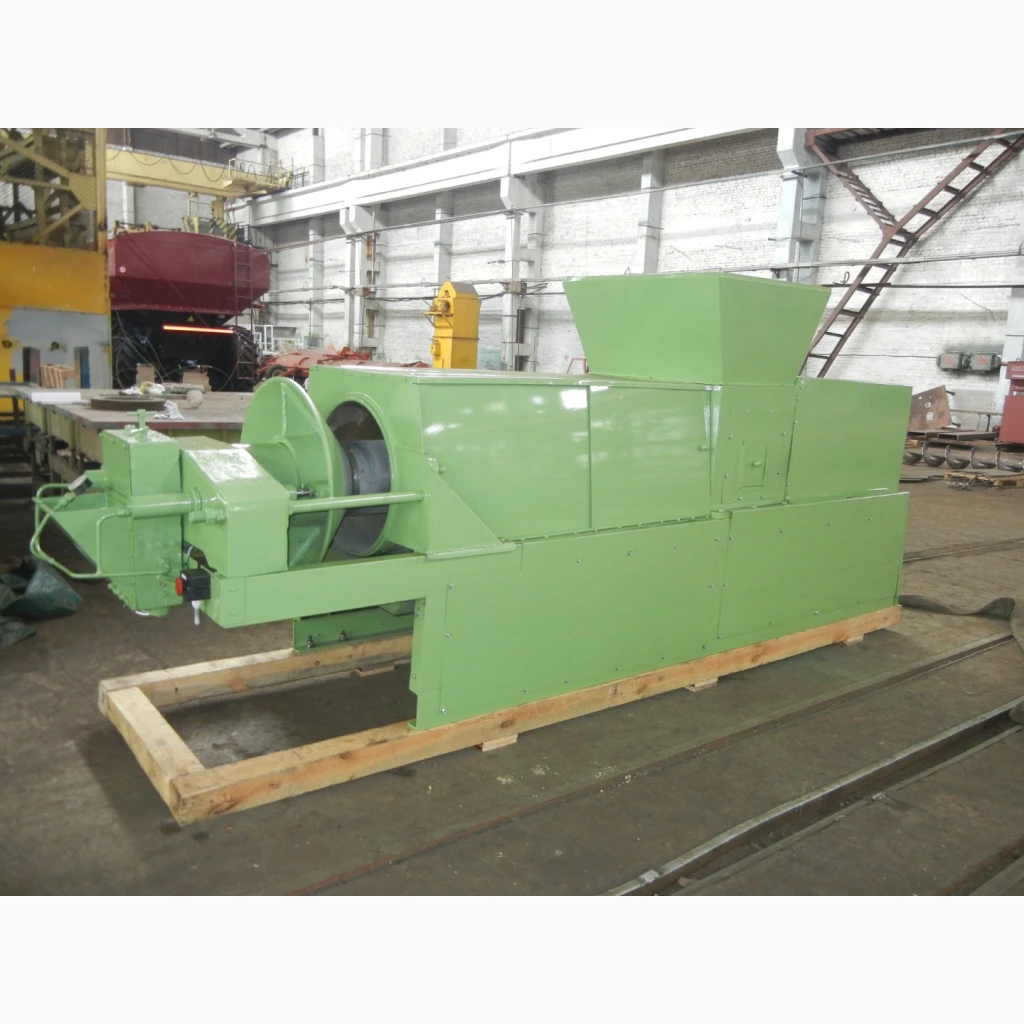

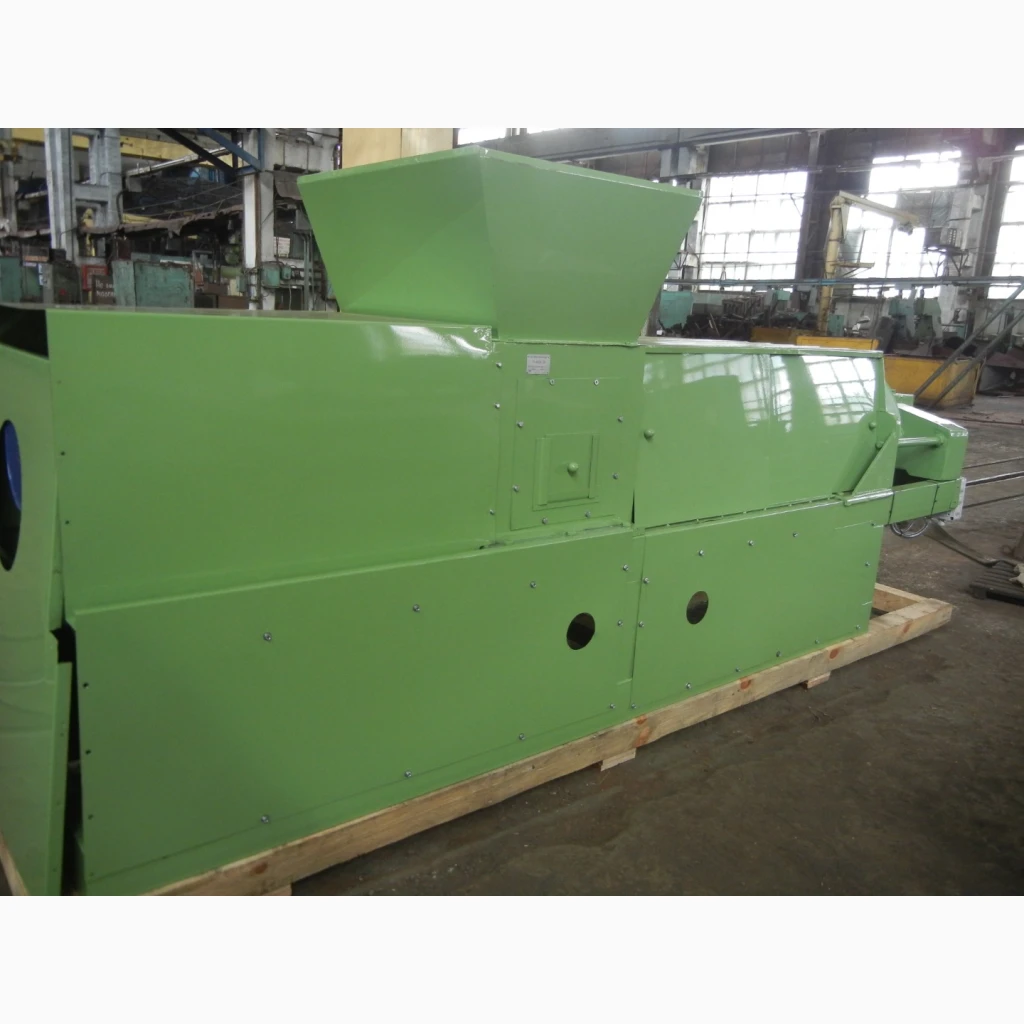

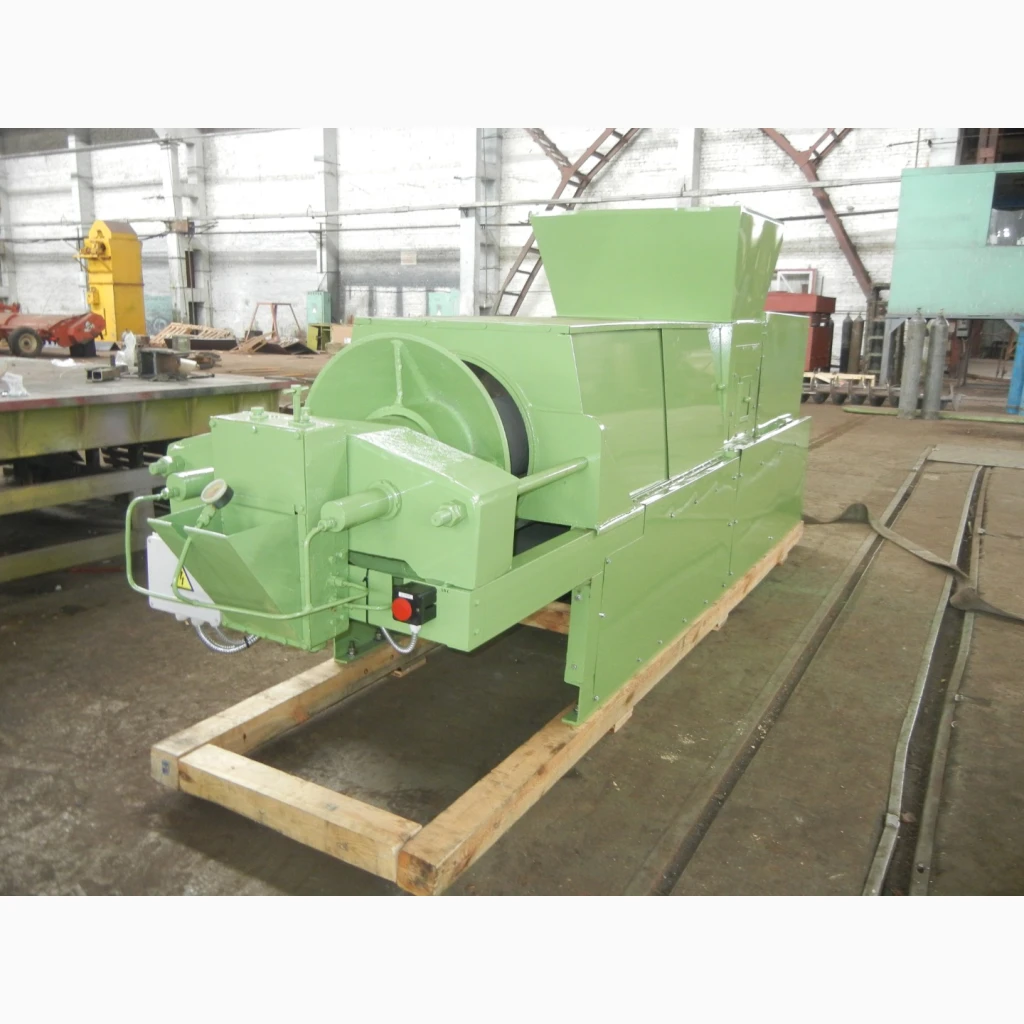

Press VP 20-30 for processing grape pulp, Chernihiv region.

Such presses are actively used in industrial conditions for pulp processing without major mechanical damage, with a good yieldjuice.

The screw press T1-VP20-30 is intended for the selection of pressed fractions of must from grape pulp in flow lines of grape processinggrapes when installed after the decanter, on which 50–55 dal of must were previously selected from one ton of grapes.
The press can also be used in other industries: starch and molasses, fodder preparation, fertilizer production and other branches of the processing industry.

Technical characteristics of the press T1-VP20-30:
Productivity — 30 t/h.
The moisture content of the pomace removed from the press is 56%
The radial clearance between the screws and the seer cylinder is 1.5 mm(//tractor-service.com)
Pressure regulation in the pressing chamber is hydraulic.
The maximum pressure in the pressing chamber is 1.4 MPa (14 kgf/cm²)
The yield of wort is 22.5 dal/t
Mass concentration of suspended substances in wort — 95 g/dm³
Enrichment of wort with phenolic substances - 0.6 g/dm³
The engine is 4АР160М6У3
The power of the electric motor is 15 kW
Rotational frequency — 105 s⁻¹ (1000 rpm)
Overall dimensions — 3850 × 1050 × 1620 mm
Weight — 3000 kg
