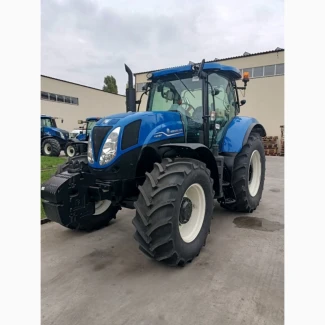

Tractor New Holland T6090 Classic 165 hp, Zhytomyr region.

Working volume (cm³) 6728
No. of cylinders / air supply / no. of valves / environmental standard 6/ turbocharging /4/ Tier 3 MD1
Nominal power - ISO 14396/EC R120 (kW/hp) 121/165
Maximum power - ISO 14396/EC R120 (kW/hp) 148/201
Nominal engine speed (rpm) 2200
Maximum torque - ISO TR14396 (Nm) 710 at 1400 rpm
Maximum torque with ERM power control - ISO 14396- ЕСЕ R120 (Nm) 778 at 1600 rpm
Coefficient of torque reserve (%) 35/28
Fuel tank capacity (l) 285
Frequency of maintenance (motor/h) 600
Transmission - 18x6 Range Command SPS
Bridges
Front axle with drive
Dynamic front fenders with a width of 420 mm.
Angle of rotation, base. front axle / front axle with Terraglide™ suspension (°) 55/55
Turning radius, bases. front axle / front axle with suspension (mm) 5450mm
Hydraulic system
With a closed circulation circuit and automatic oil flow regulationoil flow (CCLS)(//tractor-service.com)
Productivity / working pressure of the mainpump (l/min / bar) 113 / 210
4 pairs of hydraulic outlets (2 configured and 2 not configured)
Electronic adjustment of traction force for hydraulically adjustable center rods and right-hand brace (EDC)
Hinged system
Max. load capacity on layer tips - hydraulic cylinders 100 mm (kg) 8257
Max. load capacity (610 mm by layer tips) - hydraulic cylinders 100 mm (kg) 6616
Load capacity of the front hinged system on layer tips (kg) 3568
GDP
Automatic smooth start of GDP controlled by position sensor
Engine speed (rpm) at: 540 / 540E / 1000 (rpm) 1969 / 1546 / 2120
External control of GDP and hinge on the rear wing

Cabin
Horizon cabin with four racks, glazing area, m2 5.85
Air conditioner

Circulating cabin air filters

Nominal noise level in the cabin - EC 77/311 (dB(A))
