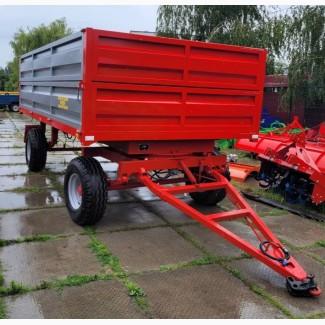

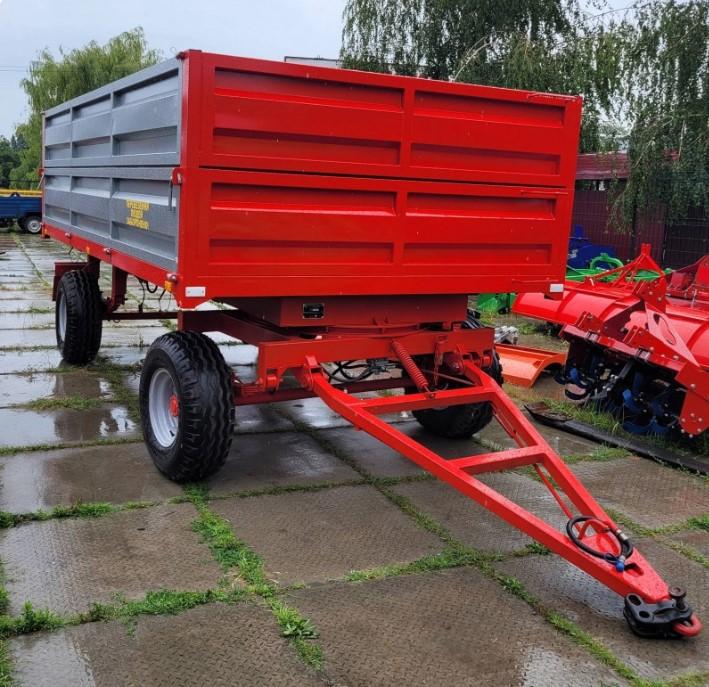

Tractor trailer 2PTS-6, 5 extension sides, Kyiv

Two-axle tractor trailer model 2PTS-6.5 with a carrying capacity of 6.5 tons with all-metal additional sides, used with tractors of class 1.4 and more.

The purpose of the trailer is to transport various agricultural and industrial loads on public roads, highways, and field roads.

The design of the trailer includes three-way cargo unloading, a rotating wheel mechanism, working disc brakes on all four wheelswheels, a powerful frame, high-quality painting of all elements, 12 W electrical equipment.

Main characteristics:

The weight of the transported cargo is 6500 kg.

The weight of the equipped trailer, no more than 1950 kg.

The maximum load on the front axle is 4390 kg.

The maximum load on the rear axle is 4060 kg.

The total weight of the trailer is 8450 kg.

The internal dimensions of the platform are 4400x2200 mm.

The height of the sides of the trailer is 500+500 mm.

The tilting angle of the platform is 50 degrees.

The maximum speed is 35 km/h(//tractor-service.com)

The height of the load on the floor is 1115 mm.

The height of the load on the main sides - 1615 mm.

Tyres - 11.5/80 - 15.3 (139A8)

Spring suspension

Wheelbase-2990 mm.

The track width is 1930 mm.

Working brake system – Pneumo-hydraulic single-wire with pad brakes on two axles

Disc brake mechanisms

Parking brake system-mechanical with manual drive

Unloading the trailer - to the sides and back.

The lifting mechanism of the platform is a telescopic hydraulic cylinder.

Production-Ukraine

Warranty-12 months
