Diesel generator set MTU 2500 kW, 50 Hz, 11 kV, 2025 in Kyiv

Diesel-generator set MTU 20V4000 DS4000 (nominal power 2500 kW, 50 Hz, 11 kV,diesel fuel) 2025.

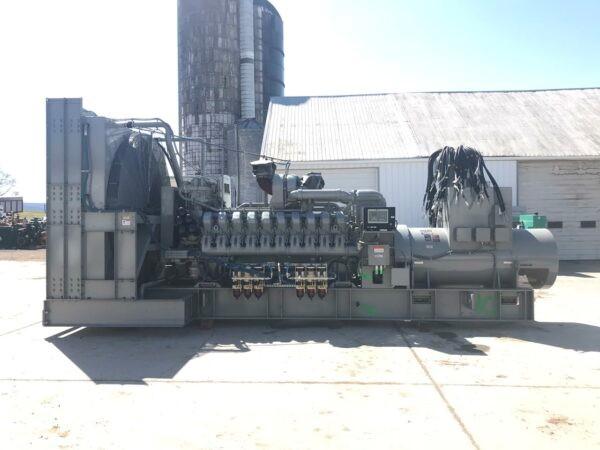

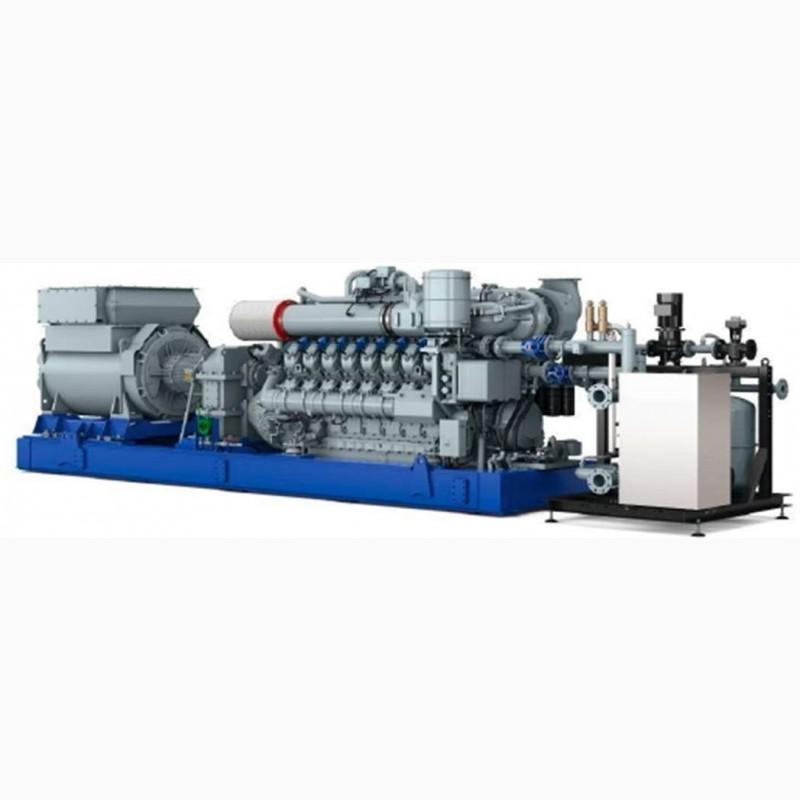

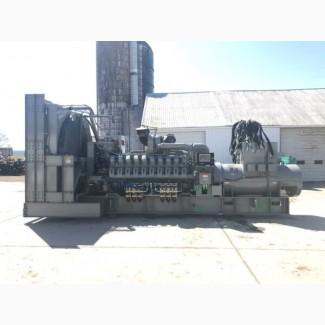

Diesel generator set MTU 20V4000 DS4000

400 V - 11 kV/50 Hz/standby power supply/optimized fuel consumption 20V4000G94LF/charge air water cooling

Product Key Features:

Benefits

— Approved for renewable fuels (eg HVO)

— Low fuel consumption

— Optimized possibility of system integration

— High reliability

— High power availability

— Long maintenance intervals

Support

— Global product support is offered

Standards

— The engine-generator set is designed and manufactured at enterprises certified according to ISO 2008:9001 and ISO 2004:14001 standards

— The generating set complies with the ISO 8528

standard — The generator complies with EC 60034-1, ISO 8528-3 standards; IEC 60044-1;

Rated power

— Nominal characteristics of the system: 3950 kVA - 4000 kVA

— Accepts rated load per step per NFPA 110*

— The generating set corresponds to G3 according to ISO 8528-5

— Generator set exceeds load steps according to ISO 8528-5*

Full range of accessories available

— Control panel

— Power panel

— Fuel system

— Fuel connections with a shut-off valve mounted on the support frame

— Starting/charging system

— Exhaust system

— Electric radiators

— Alternating current generators of medium and high voltage

— Low voltage alternating current generator

Certifications

— CE certification option

— Unit certificate according to VDE-AR-N 4110
(//tractor-service.com)
Application data:

Engine Manufacturer MTU

Model 20V4000G94LF

Type 4-stroke, Complete set 20V

Volume:  95.4 L

Cooling system/radiator

Coolant consumption (high temperature circuit): m3/h 80

Coolant consumption (low temperature circuit): m3/h 44

Connecting

The engine system automatically collects and transmits engine data to the manufacturer from time to time. The data is used by the manufacturer to develop and improve products, as well as to optimize service.

Power Shield - Electrically Driven 45kW to 75kW

Fuel system

Flexible fuel connectors mounted on the support frame

Fuel filter with water separator Fuel filter with water separator for heavy duty conditions

Switched fuel filter with water separator Switched fuel filter with water separator for heavy duty conditions

Separate fuel cooler

Fuel cooler integrated into cooling equipment

Starting/Charging System

Starter 24 V Back-up starting system

Starter batteries, cables, rack, switch (lockable)

Battery charger, generator

Mounting system

Welded support frame

Strong mounting of the engine and generator

Modular design of the support frame

Fixing the support frame to the foundation/base plate using clamping brackets

Exhaust System

Exhaust bellows with connecting flange

Exhaust muffler with 10 dB(A) sound reduction.

Exhaust muffler with 30 dB(A) sound reduction.

 Exhaust muffler with 40 dB(A) sound reduction.

Y-shaped connecting pipe

Size: 6343 x 1810 x 2421 mm

Weight (dry/without tank) 20,810 kg

12-month warranty.

The company carries out turnkey installation and maintenance of equipment.
