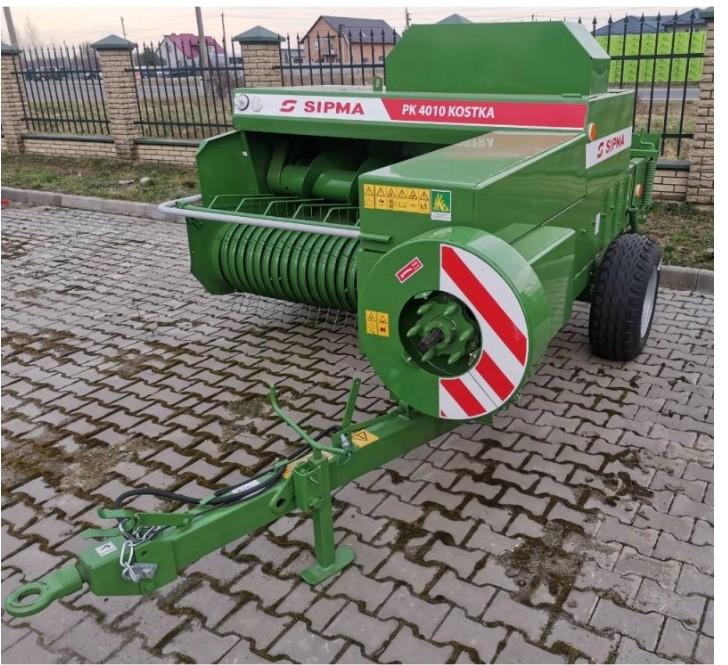

Bale baler SIPMA PK 4010 KOSTKA, Kyiv

Sipma PK 4010 KOSTKA bale press Z-224/2 with hydraulic pick-up adjustment - intended for collecting straw, hay with further pressing into rectangular packages.

It is used with tractors with a capacity of 40 liters or more.

The Sipma baler is equipped with two tying devices, which quickly and carefully bind the bales formed by the press.

The designof the baler chamber enables adjustment of the degree of compression (up to 180 kg/m³), setting the length of briquettes from 0.3 to 1.3 m, and setting bales falling in different planes.

The SIPMA PK 4010 baler is equipped with a friction unidirectional clutch on the flywheel (900 Nm), which protects the drive shaft.

Behind theflywheel additionally is installed the main automatic clutch that protects the entire machine (six disc springs). Cut screws protect the needles and binding device. In addition, the heater and pick-up are equipped with overload clutches.

The cord store, in the knotter version, ensures a continuous supply of cord to the tying device.

The warranty for baler pressesbale machines is 1 year

Technical characteristics:

The width of the pick-up is 1780 mm.

The width of the pressing chamber is 460 mm.

The height of the pressing chamber is 400 mm.

Bale length - smooth adjustment - 300 - 1300 mm

Degree of compression ≤ 180 kg/m3

Rearranging the pick-up-hydraulic(//tractor-service.com)

Rearrangement of the press-mechanical drawbar

Revolutions of PTO-540 rpm.

The required power is 28.5 kW (38 hp)

Recommended twine parameters:

- nominal linear weight of sisal twine-4500 - 6700 tekc.

- nominal linear weight of polypropylene twine - 300 ― 400 m/kg.

Equipment:

articulated and telescopic shaft - is

guide chute for bales - there is

towing device for press and trailer - yes

Dimensions:

Length-4900 mm

Width-2500 mm

Height-1600 mm

Weight-1555 kg
