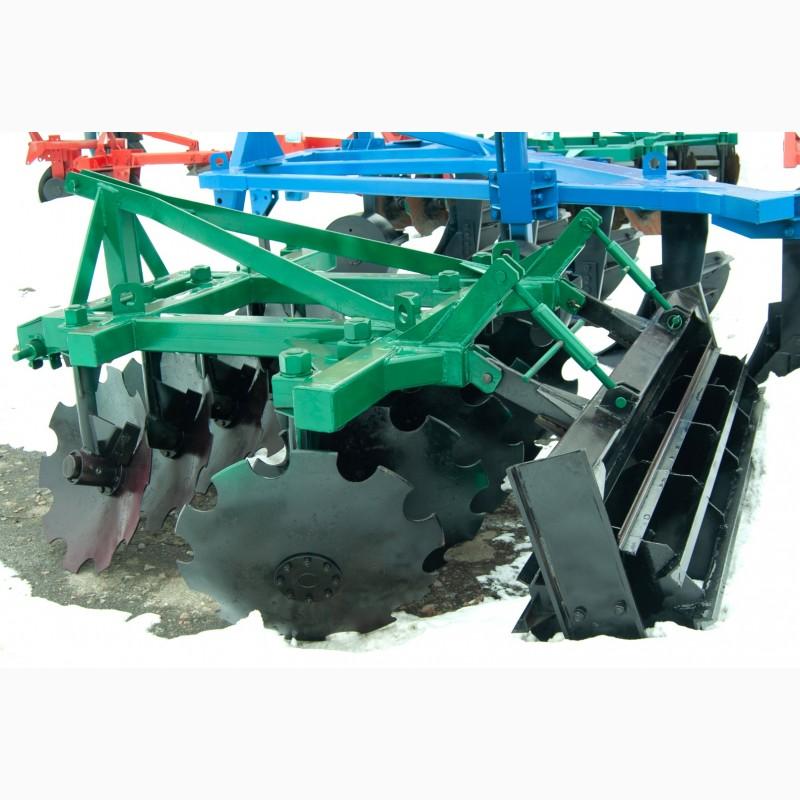

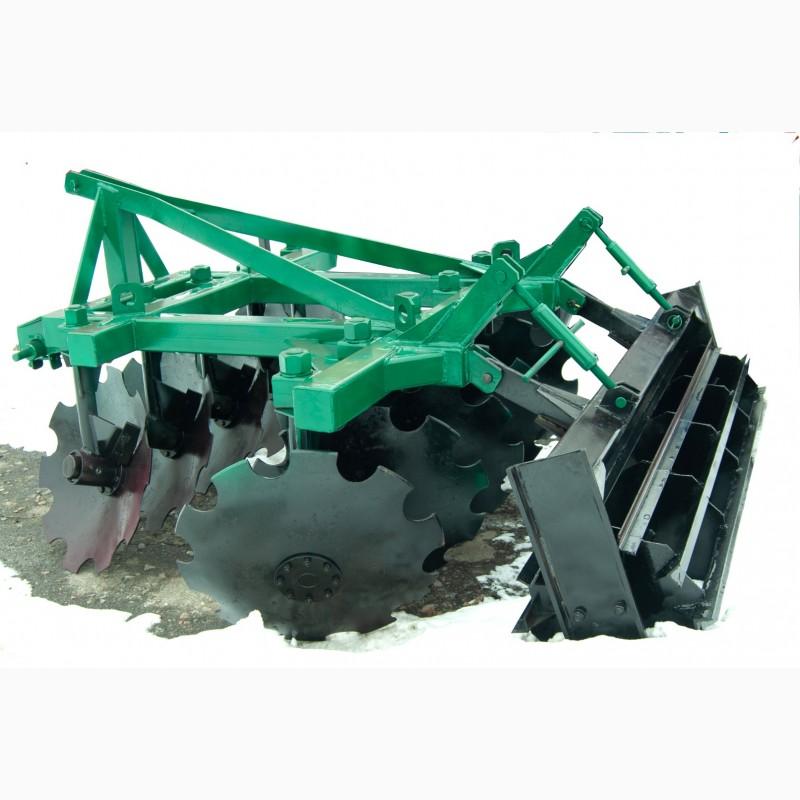

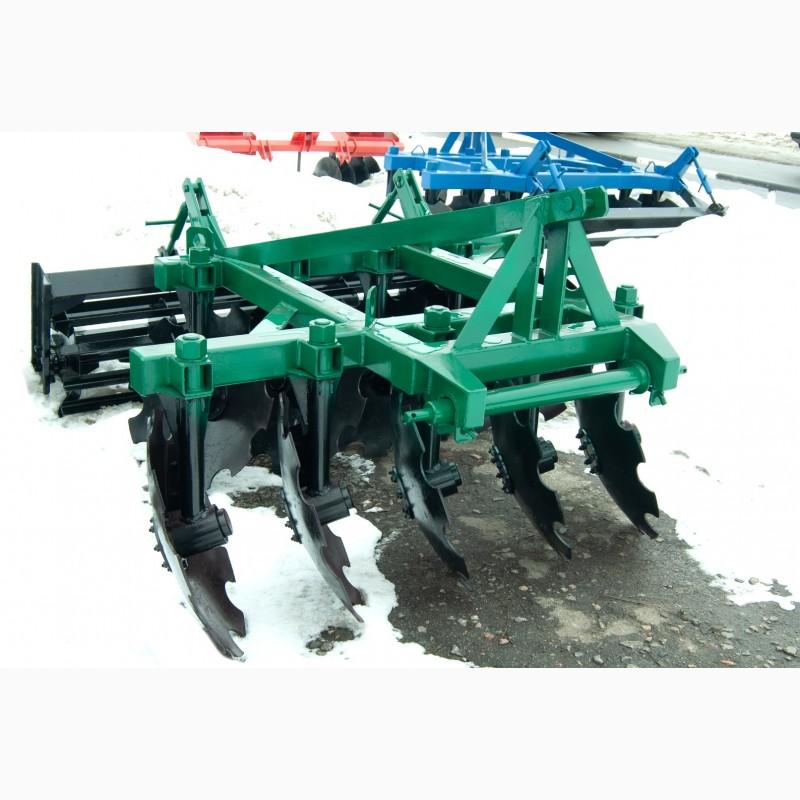

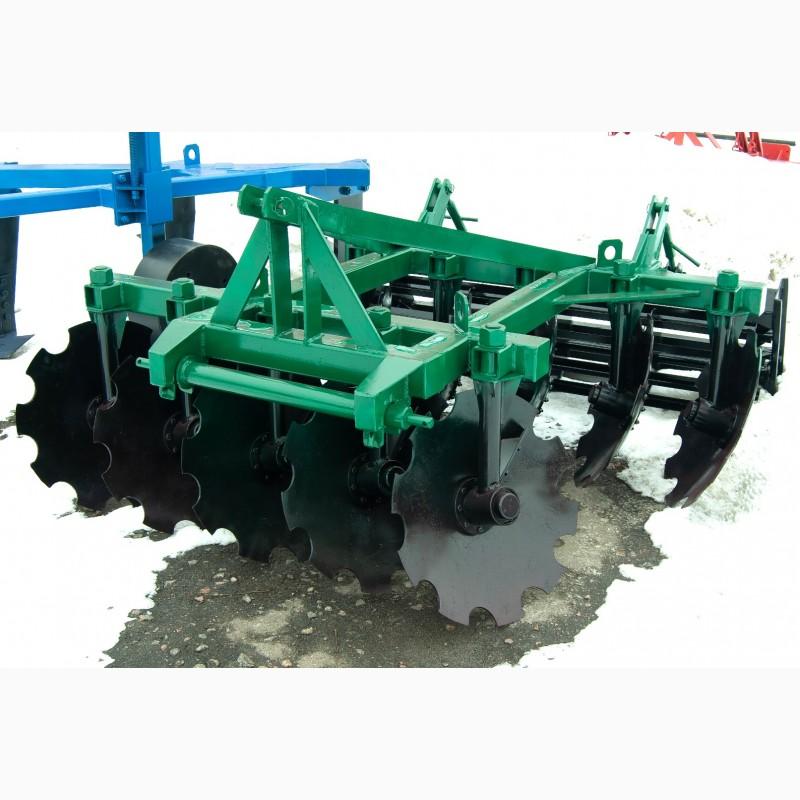

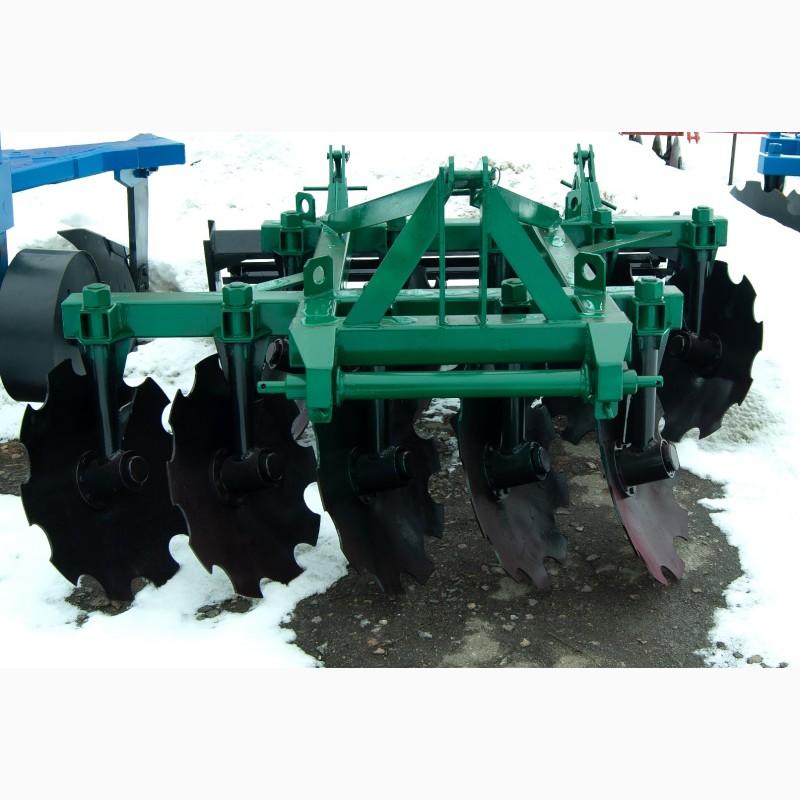

Hinged cultivator KNG-1, 8 for soil cultivation, Poltava region.

Differentmechanical composition. The unit effectively grinds and digs plant residues into the soil, providing plowless cultivation to a depth of 8-18 cm. The cultivator works by the shuttle method, without forming furrows and ridges, and at the same time levels the surface of the soil and compacts it.

Technical characteristics of KNG-1.8:

Type: Mounted
Working width: 1.8 m
Number ofdisks: 10 pieces
Cultivation depth: 8-18 cm(//tractor-service.com)
Productivity: 1.6-2.0 ha/h
Fuel consumption: 5.6-6.0 l/ha
Working speed: 8.0-12.0 km/h
Transport speed: up to 20 km/h
Ground clearance: 300 mm
Dimensions: 2300x2100x1190 mm
Weight: 720 kg
It is aggregated with tractors: T-40A, YMZ-6L (40-60 hp)
