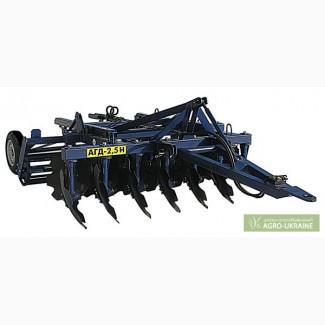

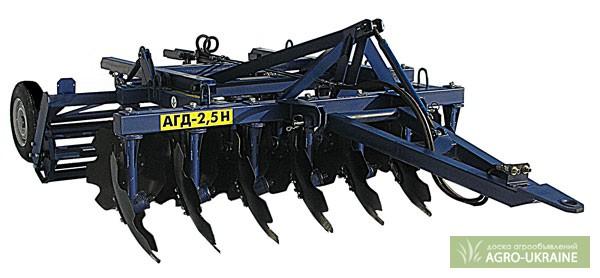

Harrow disc AGD-2.5H trailed, Kharkiv region.

Disk harrow АГД-2.5Н trailed The unit is intended for cultivating soils of different mechanical composition with crushing and embedding of plant residues in the soil under the following conditions:
- the hardness of the soil is no more than 3.5 MPa,
- soil moisture is not more than 27%,
- height of harvest and plant residues up to 30 cm.
The unit is designed for work with tractors of the 14 kN class (1.4 ts)
The unit can be operated in all soil and climatic zones.
TECHNICAL CHARACTERISTICS
Trailer type
Construction width, m 2.5 minus 0.1
Productivity ha / time, 1.8...2.2
Depth of soil cultivation, cm 8...18
Working speed of movement, km/h 8.0...12.0
Transport speed, km/h 20(//tractor-service.com)
Weight of the product (without accessories), kg 1160 minus 50 Dimensions, mm, no more
length 4800 minus 150
width 2800 minus 150
height 1000 minus 150
Ground clearance, mm, not less than 300
Service personnel, people (tractor driver) 1
Guaranteed resource, 1240 ha.
Transfer to transport and working position hydraulic.
Options for using AGD-2, 5H:
- as a trailed unit, it is attached to the tractor with the help of a trailing device;
- as an intermediate option, half-mounted;
- as a mounted tool, the towing device will be moved to a vertical position,
disconnect the wheel drive, hang the unit on the three-point system of the tractortractor;
