Seyalka propashnaya Vesta 8, Dnipropetrovsk region.

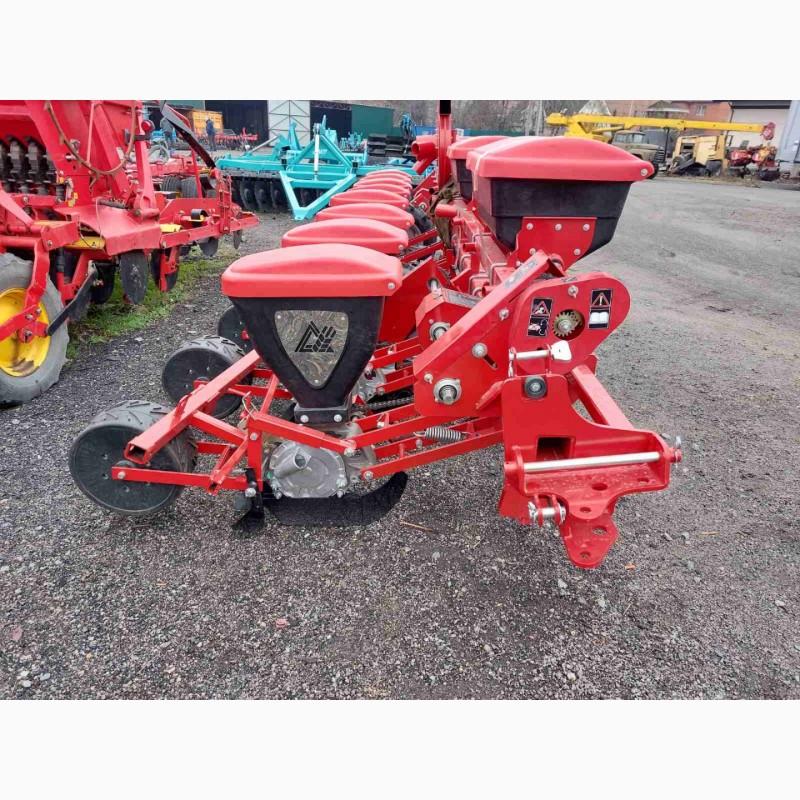

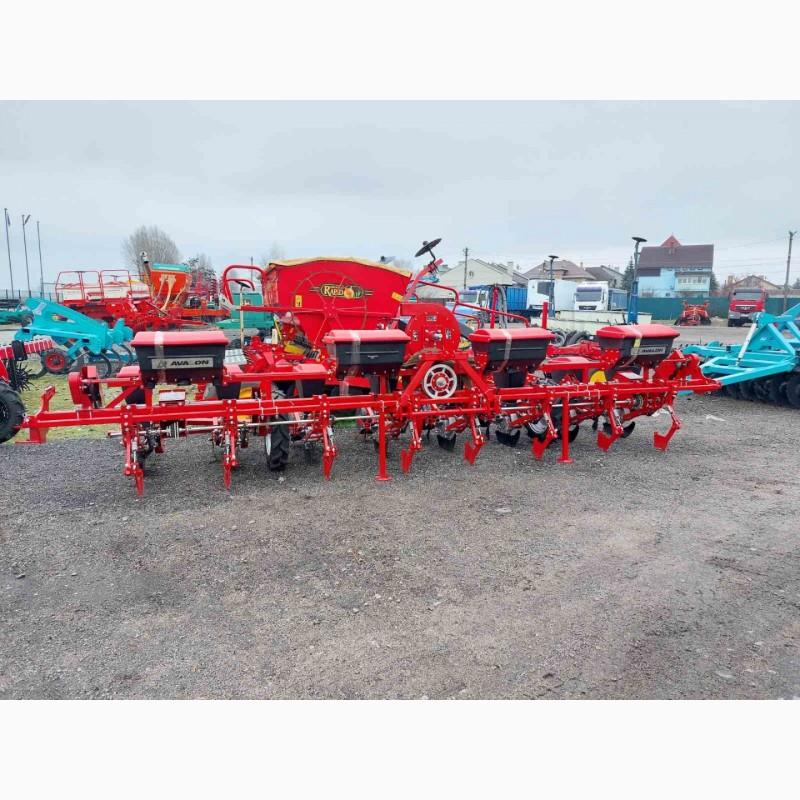

Row seed drill UPS-8 pneumatic are intended for dotted sowing of calibrated and uncalibrated seeds of corn, sunflower, with simultaneous application of granulated mineral fertilizers separately from the seeds and rolling of the soil in the rows.

Precise seed drills provide sowing to the final density, in addition to the use of manual labor when forming the necessary interval between plants.
Pneumatic sowing devices of precision sowing seeders reduce the percentage of seed crushing by 10 times compared to mechanical ones.
All drive shafts of grain and fat seeders are mounted on rolling bearings.
Due to the location of the axis of the drive wheels on the same line as the grain coulters, simultaneous copying of the field relief is achieved by both the frame and the sowing section.
A tread with soil grips on thetires of the support-drive wheels reduces their slippage, which ensures the specified interval between the seeds.
Planters have a strong hydrofed marker with a larger diameter disc that has the ability to change the angle of attack for a highly visible trail.

The semi-automatic hitch ensures quick and safe connection of the planter to the tractor.

To create a uniform rarefaction, which is necessary when sowing heavy seeds of leguminous crops (soy, etc.), the fan is equipped with an additional air duct. The beam of the seeder frame is the receiver of the pneumatic system of the seeder, which reduces the pulsation of the air flow, which allows you to obtain uniform sowing on each section.
The fan has an overrunning clutch that protects the belt transmission from increased wear.

UPS indicators 8
The type of machine is mounted.
Working width m 5.6(//tractor-service.com)
Number of rows approx. 8
Row width mm 450, 600, 700, 900
450x900, 600x1200
Working speed km/h 3.6-9
Productivity ha/h 2-5.04
Hopper capacity (total) dm3
- for seeds 200
- for fertilizers 192
Sowing norms
- for seeds pc/p.m. 2-43
- for fertilizers kg/ha 50-250
Seed wrapping depth mm 40-120
Overall dimensions mm
- in working position 1700х6250х1430
- in transport position 6800x2300x3010
Mass kg 1278±3%
It is aggregated with tractors hp. (ts) 80(1,4)
