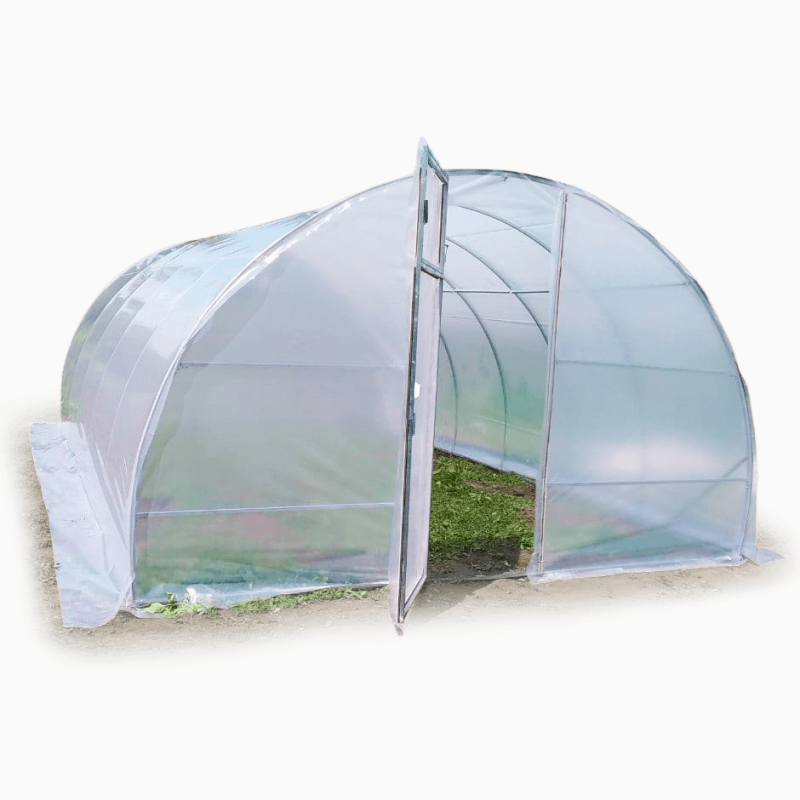

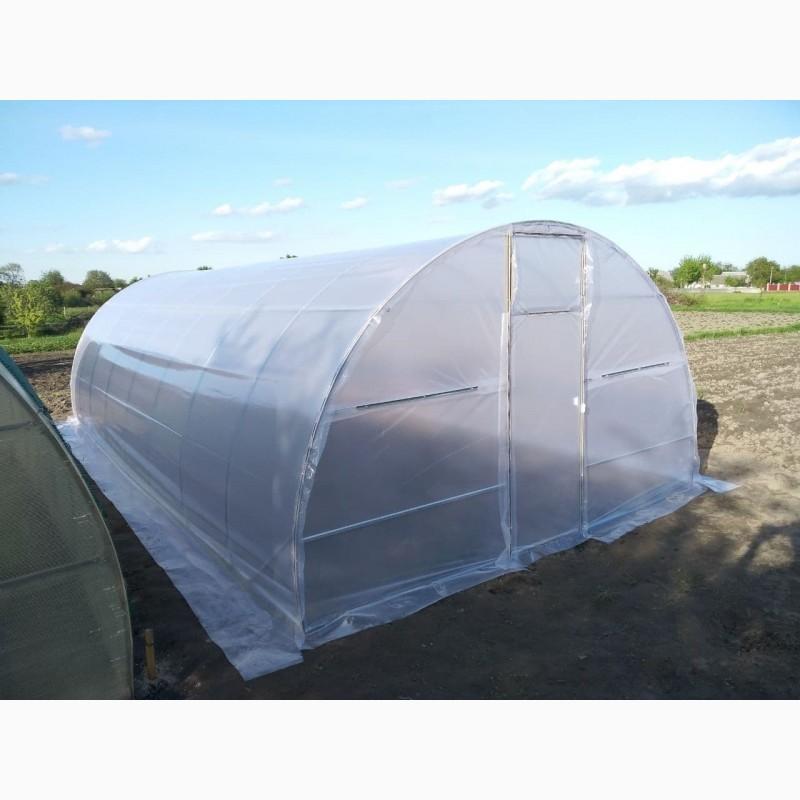

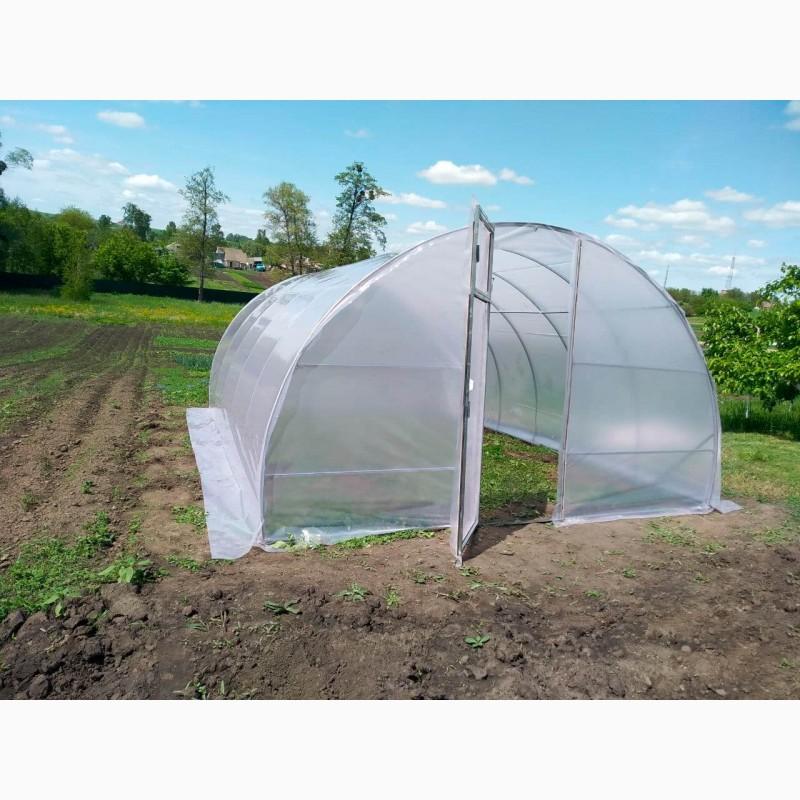

Greenhouse "Vegan" 4 m wide from galvanized pipe with film, Kiev region.

The assortment includes the following types of greenhouses:
Greenhouse "Vegan" 4×6 made of galvanized square pipe with 120 micron film - UAH 10,610
Greenhouse "Vegan" 4x8 made of galvanized square pipe with a film of 120 μm - UAH 12,500
Greenhouse "Vegan" 4×10 from galvanized square pipe with 120 micron film - UAH 14,170
Greenhouse "Vegan" 4x6 made of galvanized square pipe with a film of 150 μm - UAH 11,260
Greenhouse "Vegan" 4×8 made of galvanized square pipe with 150 micron film - UAH 13,330
Greenhouse "Vegan" 4x10 from galvanized square pipe with a film of 150 microns - UAH 15170

Greenhouse frame "Vegan-Titan" is made of galvanized square pipe 20x20x1. The term of operation of the greenhouse is from 10 years.

In the standard configuration of the greenhouse, the film is attached to the frame with pressure bars. In the extended configuration (+ UAH 2,100), a zigzag profile is used to fasten the film.

Galvanized frame
The frame of the "Vegan" greenhouse is made of galvanized square pipe 20x20x1 mm. Frame parts are galvanized inside and out by hot-dip galvanizing. The distance between the arches is 1 m. The 4 m wide frame has 5 longitudinal rows.

Greenhouse frame made of galvanized square pipe
Simple installation
Installation of the greenhouse does not require welding. Frame elements are connected to each other by connecting two pipe ends (telescopic connection) or with the help of corners and are tightened with bolts. The greenhouse kit includes detailed video instructions and a simplified printed version.

Anchors for the stability of the greenhouse
Anchors for stability
The greenhouse kit includes T-shaped anchors. Anchors are attached to the ends of each arch and to the door jambs. Anchors are dug into the soil to a depth of 20-25 cm, which ensures the stability of the frame. When installing the frame on a concrete foundation or a wooden beam, the greenhouse set is supplemented with anchor bolts.

Heating film
The greenhouse is equipped with a light-stabilized film. The life of the film is 3 years (manufacturer's warranty).The thermal film performs the following functions:

Transmits the light necessary for the rapid growth of plants;
Retains harmful ultraviolet rays for plants;
Protects plants from rain, snow, wind, etc.
Clamping bar for attaching the film to the greenhouse
Fixing the film. Pressure bars
In the standard configuration of the greenhouse, the film is attached to the frame with the help of metal clamping bars 40 cm long. Each bar has 2 holes for bolts. The edge of the film is placed on the frame element, pressed with bars and tightened with bolts.

Fixing the film. Zigzag profile
In the extended configuration of the greenhouse, the film is attached to the frame using a special fastener - a zigzag profile. The zigzag profile consists of two elements — a metal U-shaped profile that is attached to the frame, and a metal zigzag that clamps the edge of the film inserted into the profile.(//tractor-service.com)

Doors and apartments

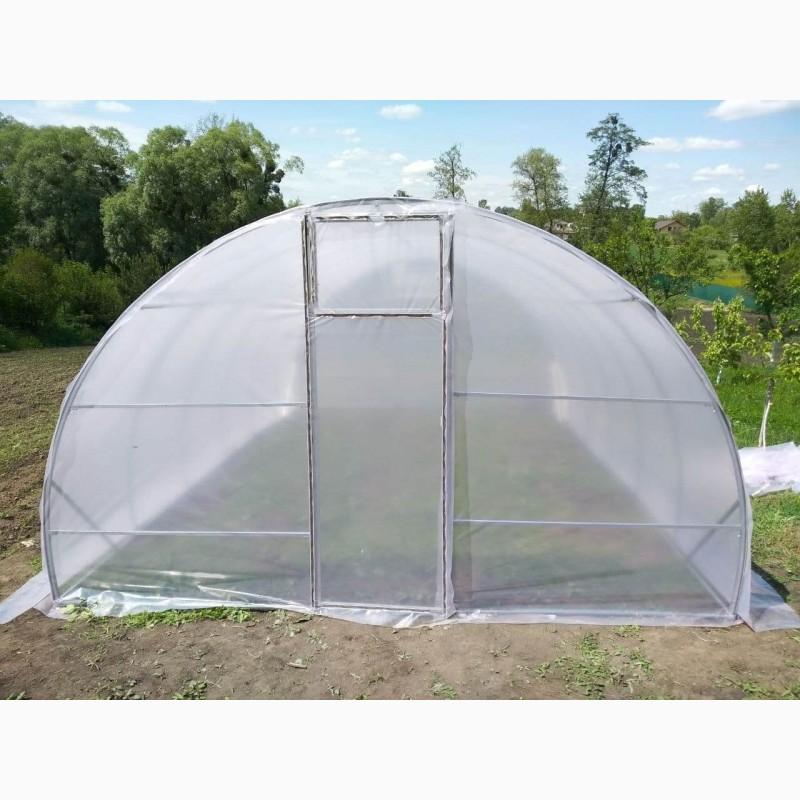

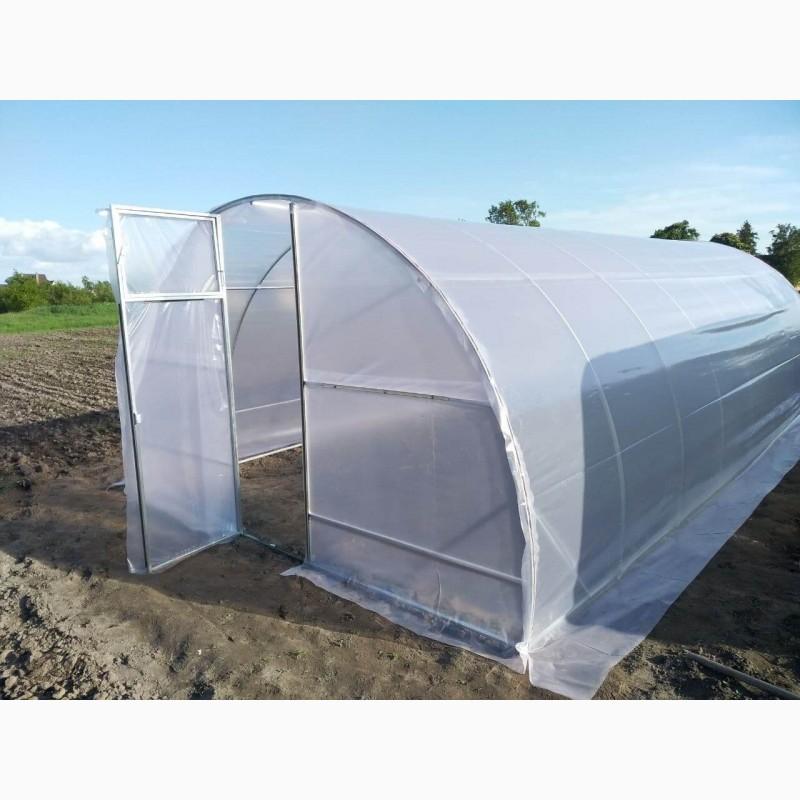

"Vegan" greenhouses in the standard configuration have a door with a window on one end and a window on the opposite end. The second door can be ordered as an option. Doors and windows are fastened with hinges, have handles and latches to prevent accidental opening. The size of the door is 75x223 cm.

Kit for mounting a greenhouse under a film
Complete set
The greenhouse kit contains everything you need for its installation: detailed installation instructions (video, PDF and printed version), metal frame elements, doors with a panel, a panel, anchors, film, film fasteners, a fastening kit consisting of angles, bolts, nuts, etc.

Recommended conditions of operation and installation of a greenhouse
The greenhouse must be installed on a flat site;
The greenhouse should be installed on the most shaded side of the house;
The greenhouse around the entire perimeter should be dug into the ground to a depth of 20-25 cm;
All metal elements of the frame must be fixed and tightly tightened;
In winter, the frame is subjected to a significant load due to precipitation. To avoid deformation of the frame, the plaque must be removed.

High-quality film
3-year warranty, high degree of UV protection.

Door
One door with a door on one side of the greenhouse and a door on the other side (the second door can be ordered as an option)

Complete set
Detailed installation instructions, frame elements, 1 door with a window (the second is optional), window, handles, film, film attachment, anchors, fastening kit consisting of corners, bolts, etc.

The length of the greenhouse
6 m, 8 m, 10 m

The thickness of the greenhouse film
120 µm, 150 µm

Arch of the frame of the greenhouse
20*20 mm

Film mount
Press bar, Zigzag profile
