Photo trap with transmission SMS data, Ivano-Frankivsk region.

New photo traps are available
of a well-known company, SUNTEK HC-900M
with data transmission by SMS.

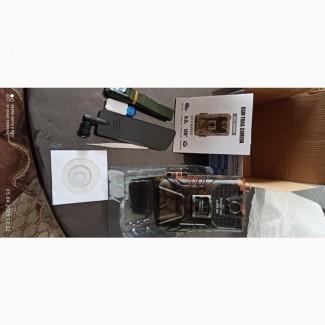

Complete set of photo trap HC 900 M:

1. Photo trap Suntek HC-900M

2. Antenna 2G

3. Belt for fastening to a tree.

4. USB cable

5. Flex adapter

6. Pliers

7. Software disk

Forest camera-photo trap Suntek HC-900M (another name is Filin JET MMS 2G or Photo-Hunter JET MMS) - an inexpensive 2G photo trap from the manufacturer Suntek with delivery by mail or MMS.

The HC-900M model combines all the advanced functions of the Suntek model line: high speed of operation (only 0.3 seconds), 2G module, low energy consumption, as well as a fairly fast speed of sending photos to e-mail or the owner's phone, decent moisture protection.

Manufacturer: Suntek
Brand: Suntek (the so-called "Owl")
Country of manufacture: China
Overall dimensions: 150 × 90 × 65 mm
Weightpackages: 500g
Number of pcs. in a package: 1
Warranty period: 1 hour
Operating temperatures: From -20 to +70 C
Interfaces: A/V Out (NTSC/PAL), USB
Connector for an external power source: Yes
Type of motion sensor: PIR, 3 degrees of sensitivity.
Memory card: up to 32GB
Trigger range: 25 m
Range of IR illumination: 20 m
Operating mode: day/night Yes
Viewing angle: 120°(//tractor-service.com)
Physical size of the sensor: 5 MP
Number of batteries: 8 pcs., AA or external power supply
Trigger speed: 0.3 sec
Scheduled entry: Yes
Maximum photo size: 16 MP
Sound recording: Yes
Number of backlight LEDs: 40
Invisible night light: Yes
GSM module: yes, 2G
Simultaneous photo and video recording: Yes
GSM module - 2G. Trigger speed - 0.3 sec. Works from 8 AA batteries - up to 5 months. Shooting in night mode - up to 20 meters. Video recording in Full HD format. Sending photos to mail is available.

Image resolution: Photo trap Filin JET MMS (HC-900M) can take pictures with a resolution of 16MP, 12MP, 8MP. If the connection is unstable at the place of installation of the trap, for example, in the forest, it is recommended to reduce the size of the photos to be sent.

Sending photos: the built-in GSM module allows you to send photos to the phone and mail with the optimal resolution, provided that there is a network at the place of installation of the trap.

Lens with a maximum viewing angle: the viewing angle is 120 degrees. The camera can take wide-angle photos both during the day and at night. At the same time, a "fish-eye" effect is present on photographs.
Photo size: The built-in 2G GSM module allows you to send pictures to the phone and mail with optimal resolution, provided that the trap catches the network at the place of installation.

Time-Lapse function: the user can configure the forest camera in such a way that it works every day at a certain time with a certain interval. This is an excellent solution for construction or botanical research.

SMS control: the camera can be controlled remotely from the phone, using SMS commands. By sending special SMS commands to the camera, the user can request a photo at any time, change the operating mode of the forest camera or reconfigure it remotely.

Low energy consumption: in working mode, the camera consumes only 0.1 mAh.

HC-900M (Owl JET MMS) does not need to be updated.

Setup

1) Install a SIM card without a password. Check the possibility of sending and receiving MMS using the phone.

2) Install batteries and SD card from 4 to 32 GB - 10 class. Go to "Test" mode. Dial the trap number. You should hear beeps.

MMS setting:

Insert the CD from the photo trap kit into your computer's drive. Insert the SD card into the card reader of the computer. Open the "MMS_Setup" file located on the CD-disk. The photo trap settings application will load:

Enter a cell phone number (eg 06755577**) for MMS messages.

Specify the e-mail address on which MMS messages will be duplicated. Then click "save" and then click the "upload" button to save the information to the SD memory card. Now you can take out the SD card and insert it into the photo trap.
