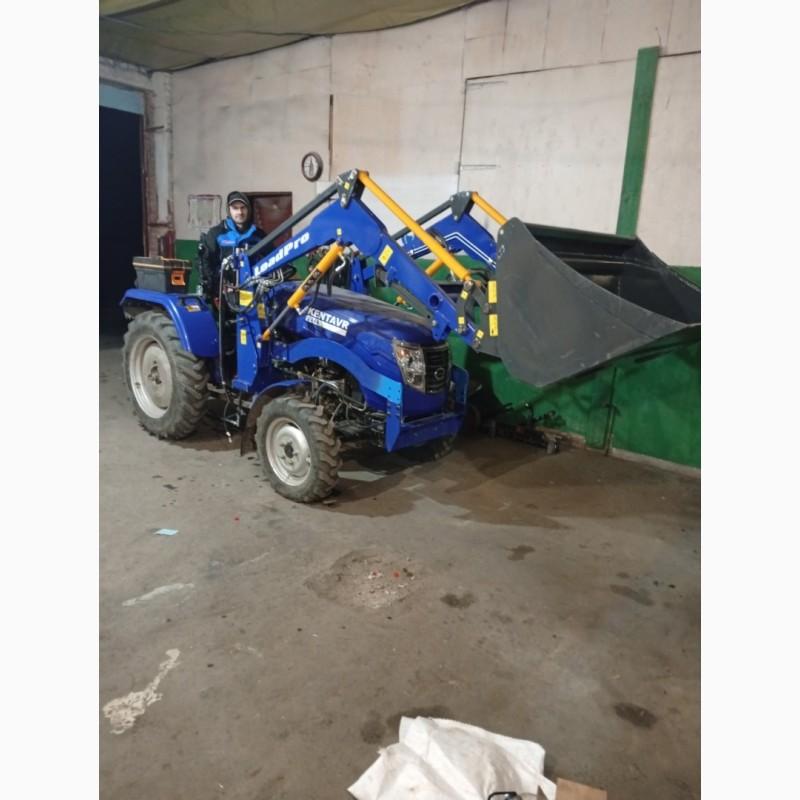

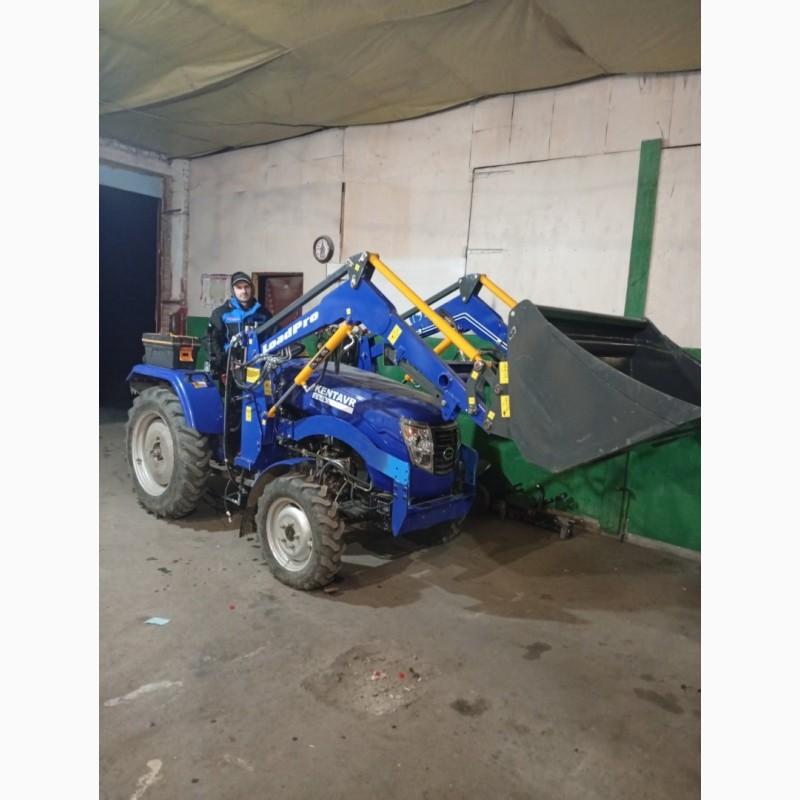

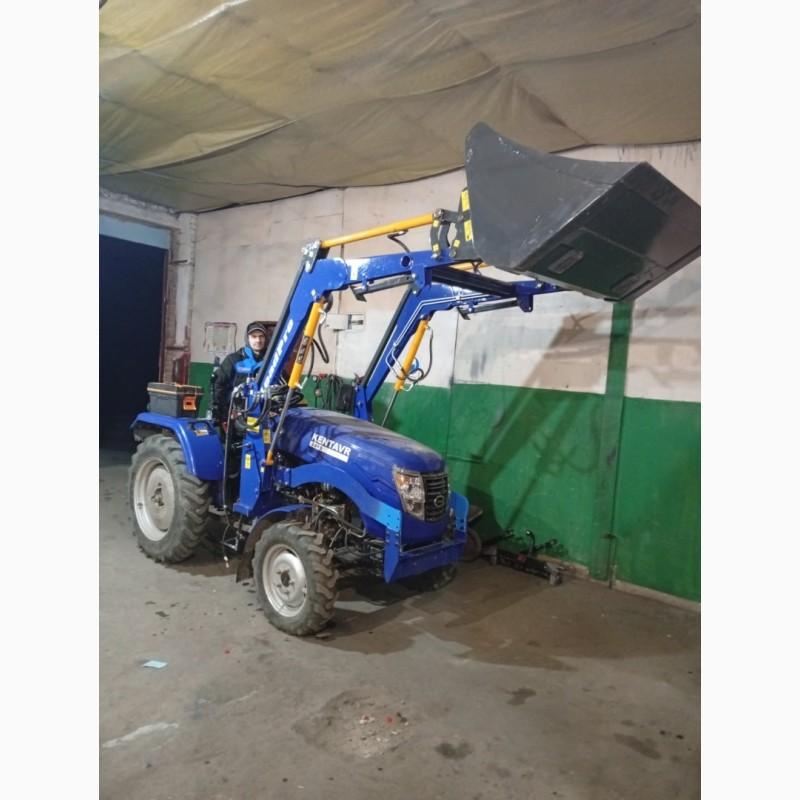

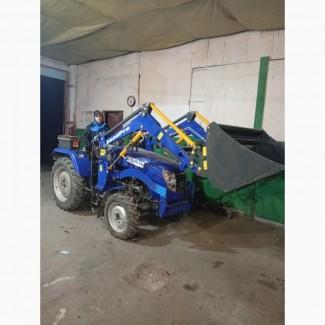

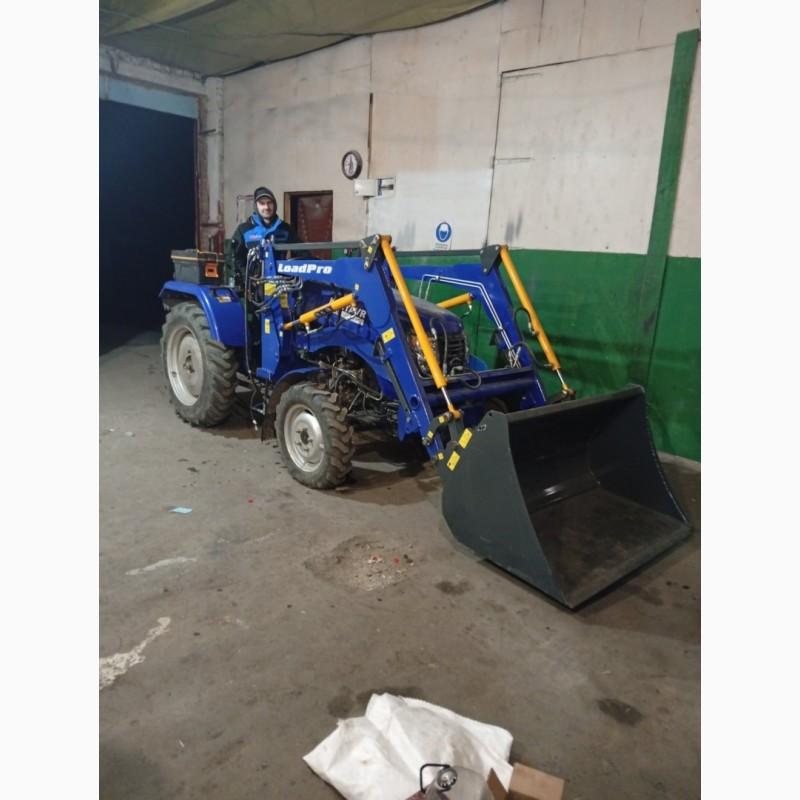

KUN loader for a mini-tractor, Zaporizhia region.

Aggregation: with minitractors with a capacity of 24-40 k.s.

Type of equipment: front skid steer

Hanging / installation: hanging quick-removable

Drive: from the hydraulic system of the tractor / joystick

Bucket width (mm): from 1250

Knife thickness (mm): 10

Nominal load capacity (kg): 500

Unloading height (m): 2.2

The weight of the structure is no more, kg: 560
(//tractor-service.com)
Bucket volume (m3): from 0.24

The thickness of the lifting frame, mm: 4

Type of hydraulic installation: open type

Hydraulic cylinders, rod diameter: for lifting the boom - 30 rods; on the inside of the bucket - 28 rods.

Service personnel: 1

Algorithm for making a loader on atractor
Loaders for all mini-tractors are made according to an individual program. Therefore, we take the tractor to our factory. We pick up free of charge and issue a responsible storage agreement. We individually take all measurements from the tractor, make a loader and install it on the tractor. After all the actions, experts check it for the quality of work. And when all the inspection stages have passed, we deliver it to your farm.

According to a similar algorithm, our plantproduces loaders for imported tractors.

Our advantages: European quality Maximum load capacity Decent working height Warranty and post-warranty service Warranty for our factory's products is 1.5 years. Any form of payment.

Payment.
We accept any form of payment. Terms of payment as agreed, possible options (prepayment in full, partial prepayment, payment after the fact, postpayment).
