Product code: Membrane level signal SUM-1
Sum-1 membrane level indicator, 2025-2024 years of release.

Passed pre-sale preparation and verification of technical and metrological characteristics.

Warranty - 12 months.

Price: 1320

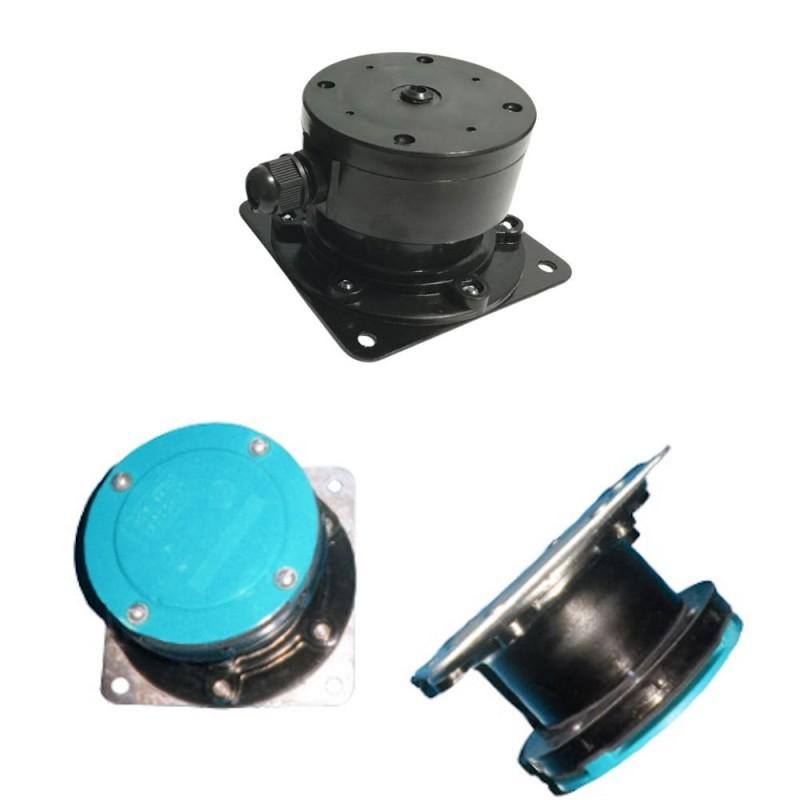

Membrane level sensor SUM-1 sensor of bulk substances is intended for monitoring the level of grain, sand, cement, crushed stone and similar bulk products in bunkers, tanks and other containers and gravity flows.

SUM1 sensors can be operated both indoors and outdoors.
The СУМ-1 level indicator sensor is the most common sensor that is used to determine the upper, lower, and intermediate levels of bulk materials in bunkers, silos, and other containers. The sensor is most widely used in the grain processing industry as well asсилосах и других емкостях. Наиболее широко датчик нашел свое распространение в зерно-перерабатывающей промышленности а также grain warehouses,elevators, KHP as a grain level sensor SUM-1 U2.

It is also possible to use the SUM-1 level indicator for other loose materials, such as sand, gravel, pellets, granules, and similar materials that do not stick to vertical surfaces.

The SUM-1 U2 level indicator sensor is installed on the vertical wall of a container or hopper. To do this, a hole is made in the wall of a certain diameter according to the size of the membrane of the sensor. The SUM-1 level sensor itself is installed on the outside of the bunker. When the container is filled with bulk material to a certain level at which the sensor is installed, the physical material acts on the membrane of the sensor, which, under the pressure of the product, moves the stem of the microswitch included in the design of the sum-1 level alarm. Under the influence of product pressure on the stem of the microswitch, its toggle contact is closed or opened, and thus a signal is sent to the automation or signaling circuit that controls the technological process associated with storage, loading and unloading of bulk materials.
When the membrane is released from the pressure of the product, when there is a discharge or another decrease in the level of the material under the action of the return spring, the reverse operation of the microswitch occurs, when the opposite contacts close and open, which worked when the SUM-1 sensor was turned on.
(//tractor-service.com)
Design of the SUM-1 alarm:

The simplicity of the design ensures the reliability of the CUM 1 sensor. Structurally, the CUM1 sensor is made in a cast carbolith housing in which a microswitch with a toggle contact is installed. The stem of the microswitch is connected to a metal membrane through a system of levers. In front of the metal membrane, there is also a membrane made of rubber fabric, and the product itself acts on this membrane. Also, a return spring is installed between the metal membrane and the microswitch, the force of which can be changed using the adjusting bolt.
The supply of signal cables and wires is made through a hermetic cable entry, which ensures the degree of protection of the shell of the sensor of bulk materials SUM-1 U2 against the effects of dust and moisture at the IP-65 level. The load on the contacts of the microswitch, which is connected to the grain level sensor, should not exceed 2 Amps. If there is a need to connect a load of a larger rating, the connection is made through
intermediate relays, starters or through other devices that amplify contacts.

Technical characteristics of the SUM 1 level sensor:

Parameters of Norma
Нагрузка на контакты:
Alternating current voltage, V 220
Current, A 2
Current frequency, Hz 50
Activation effort, H 0.5 - 2
The probability of failure-free operation for 2000 hours of operation is not less than 0.94
Installed trouble-free operation, cycles not less than 30000
Average service life, years 10

You can buy the SUM-1 level signal at the price indicated on the site http://contragent.com.ua/produktsiya/meritel-sit/item/signalizator-urovnya-sum-1
To do this, use the place an order button.
Membrane level signaling device SUM-1a = UAH 1,320 with VAT/pc. t.: (098) 842-82-06 (viber); LLC "FIRMA KONTRAGENT", Kharkiv.
