Ecotec two-level grain sampling system "SAMPLER ZONE", Dnepropetrovsk region.

The innovative Ecotec SEPARATE ZONE system of separate grain sampling allows you to take not only a general sample, but also a sample from the lower part of the body when taking grain samples with an automatic grain sampler. The height of the selection of the lower grain layer is determined by the operator.

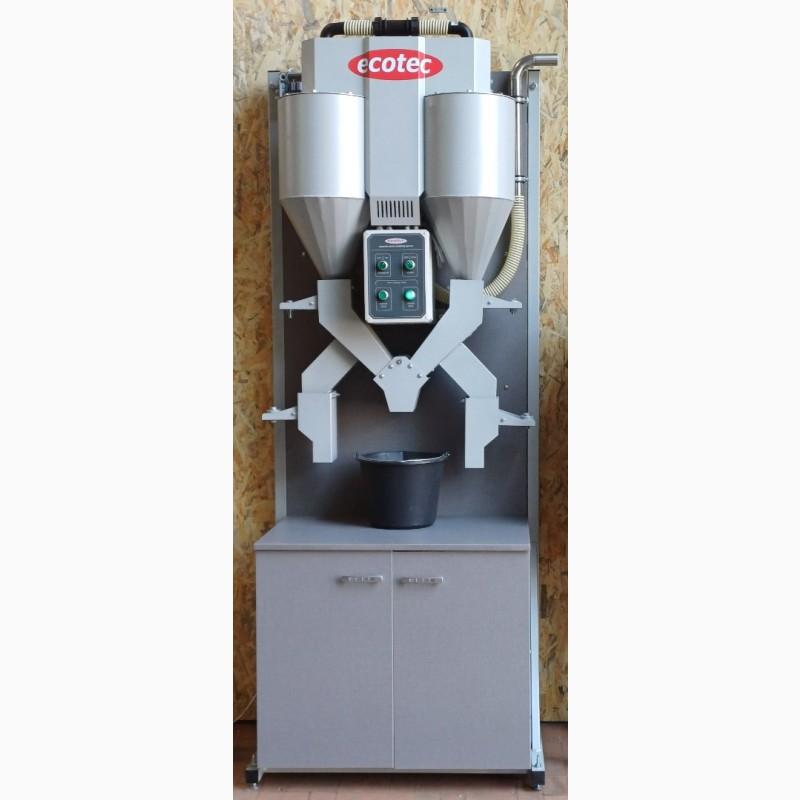

The Ecotec SEPARATE ZONE system consists of two receiving hoppers and an automation system. One hopper works in regular mode, taking a sample of grain from the entire embankment of the car body. The second hopper accepts only a grain sample from the lower part of the body. Thus, when comparing samples from two bunkers, it is easy to determine whether there is a lining of low-quality raw materials on the bottom of the body.
The Ecotec SEPARATE ZONE system can be installed on all automatic samplers of all manufacturers without disrupting technological processes. It also does not matter which probe the automatic sampler is equipped with for grain selection, single-flow, two-flow (logging), screw or slot.
The installation of the Ecotec SEPARATE ZONE sampling system consists in replacing the standard reception hopper with this system. The power supply of the system is 230V. When installing a separate sampling system, it is not necessary to introduce the sampler into the electrical circuit. The Ecotec SEPARATE ZONE system is completely autonomous and requires the operator to press only one button at the time of taking a grain sample from the lower zone of the body.

Uniqueness and effectiveness of the system of separate sampling of grain.

The uniqueness of the Ecotec SEPARATE ZONE grain sampling system is that it has no analogues in Ukraine and the world, it is the company's own innovative development of Ecotec Technolozhdi.
The effectiveness of this system is unconditional and due to the possibility for the visual laboratory to conduct a more qualitative and in-depth grain analysis. The system allows, during normal sampling, to additionally take a sample of grain only from the bottom bottom layer of the car body with grain. The restoration of this system makes it possible for the enterprise to protect itself from such a negative factor as placing low-quality grain on the bottom of the car body.(//tractor-service.com)
Most often, grain laboratories conduct analysis of a grain sample based on the average indicators per machine from the total sample taken in one bunker. Thanks to our system, the receiving laboratory has a unique opportunity to expose the grain supplier in dishonesty and the supply of low-quality raw materials.
The installation of the "Ecotec SEPARATE ZONE" system is absolutely justified at all enterprises processinggrain crops. Since the products produced by them directly depend on the quality of incoming raw materials. Such enterprises include:

 Oil extraction plants;
 Combined feed factories;
 Distilleries;
 Flour milling enterprises;
 Combines of bread products;
 Commercial elevators that work withDavalny grain;
 as well as other grain processors.
