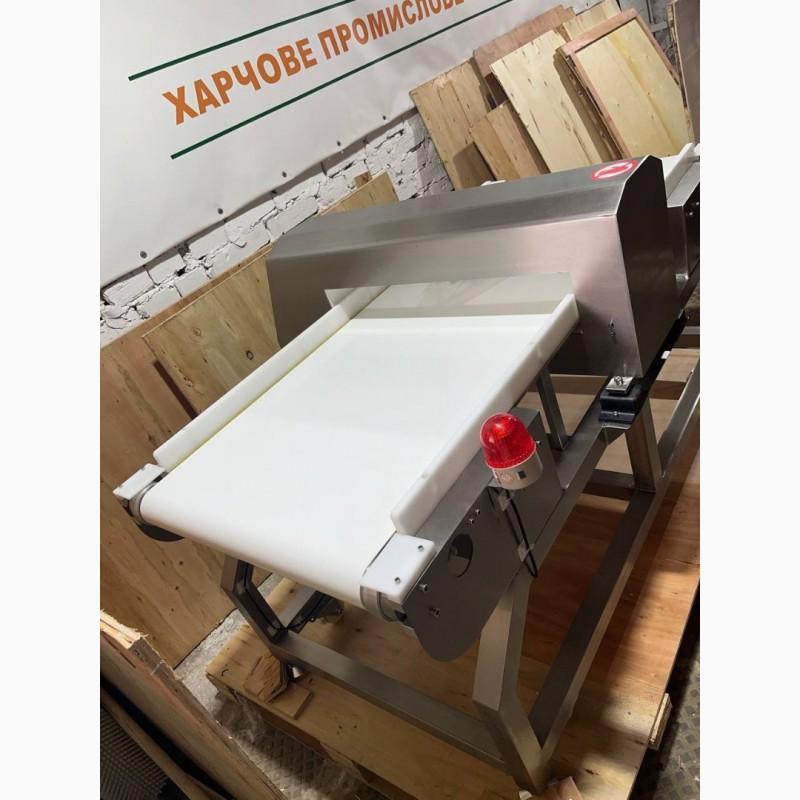

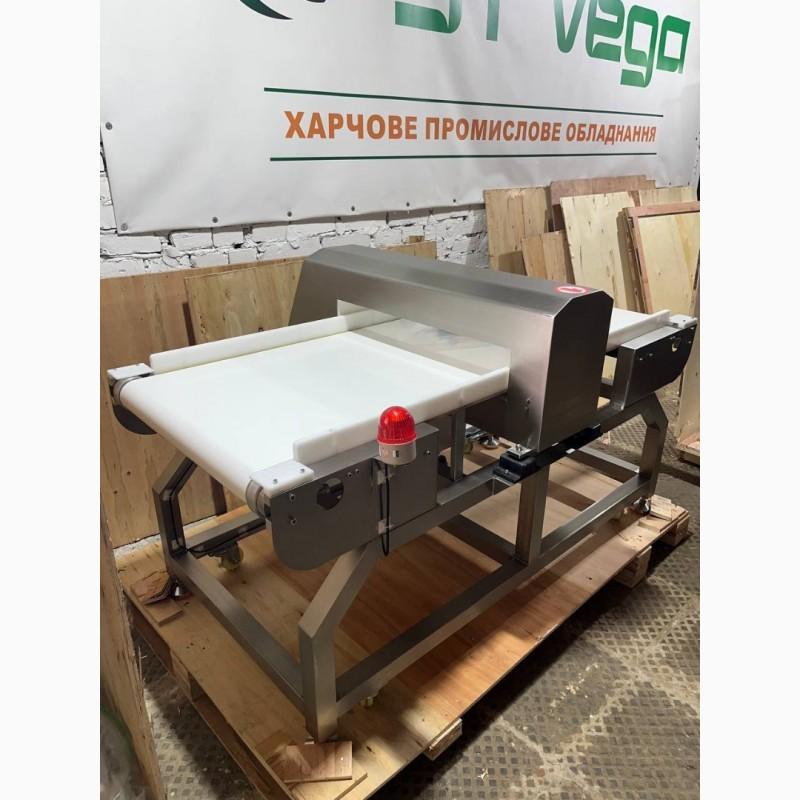

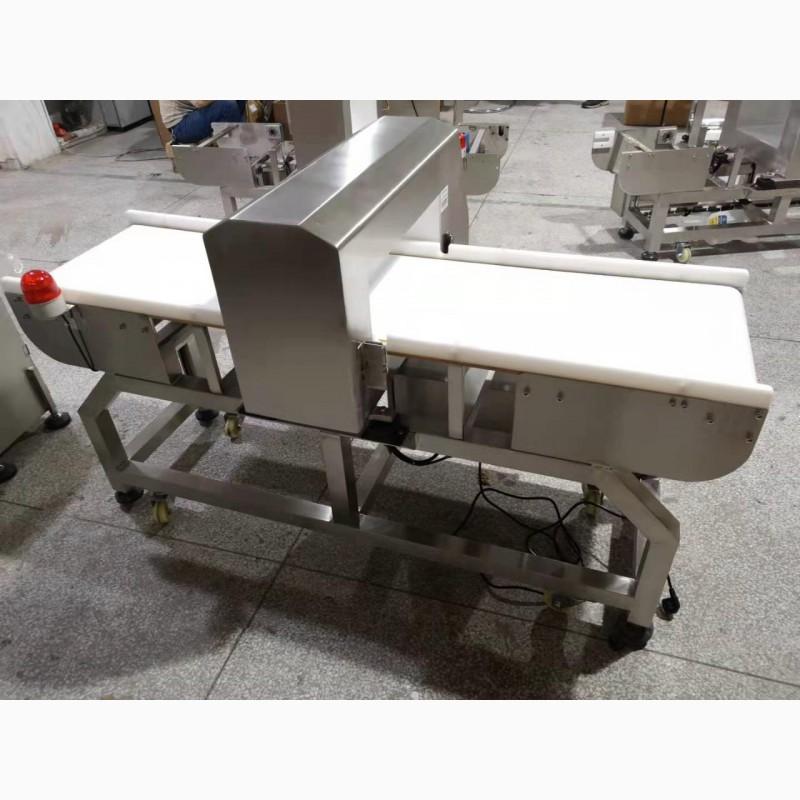

Conveyor metal detector for food production highly sensitive STvega MD-P, Kyiv

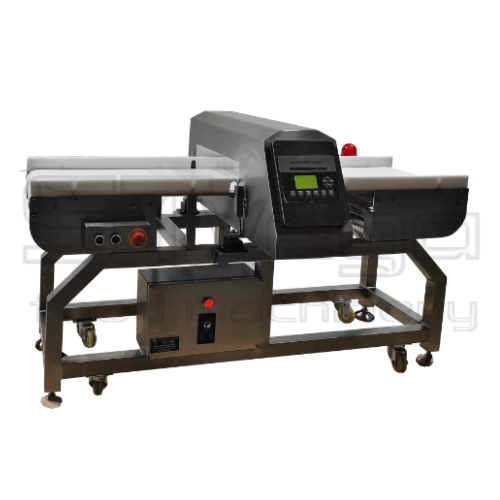

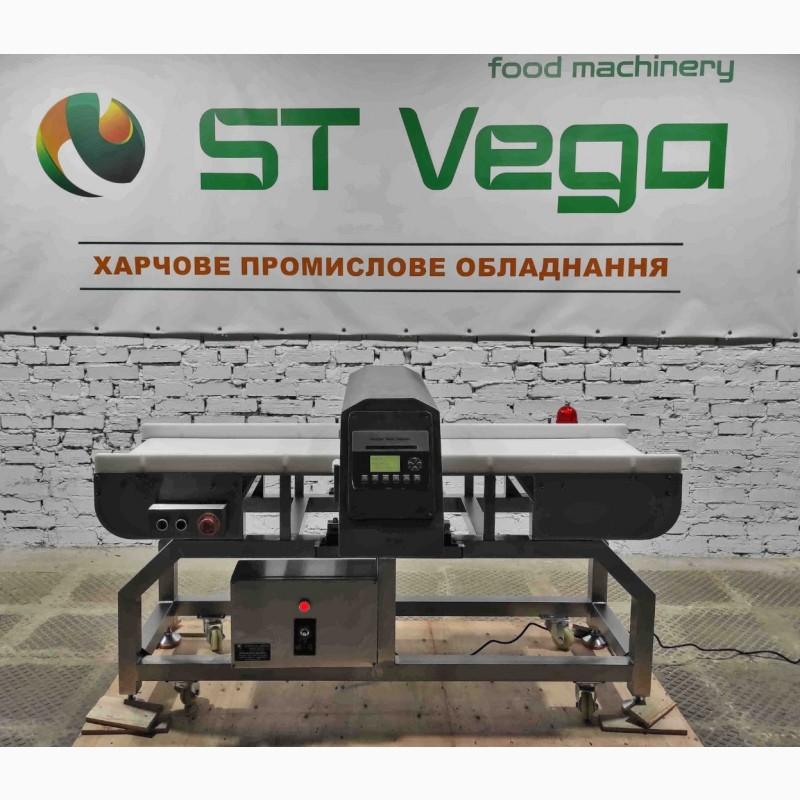

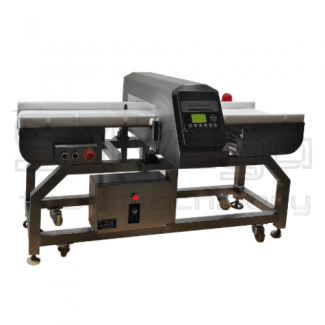

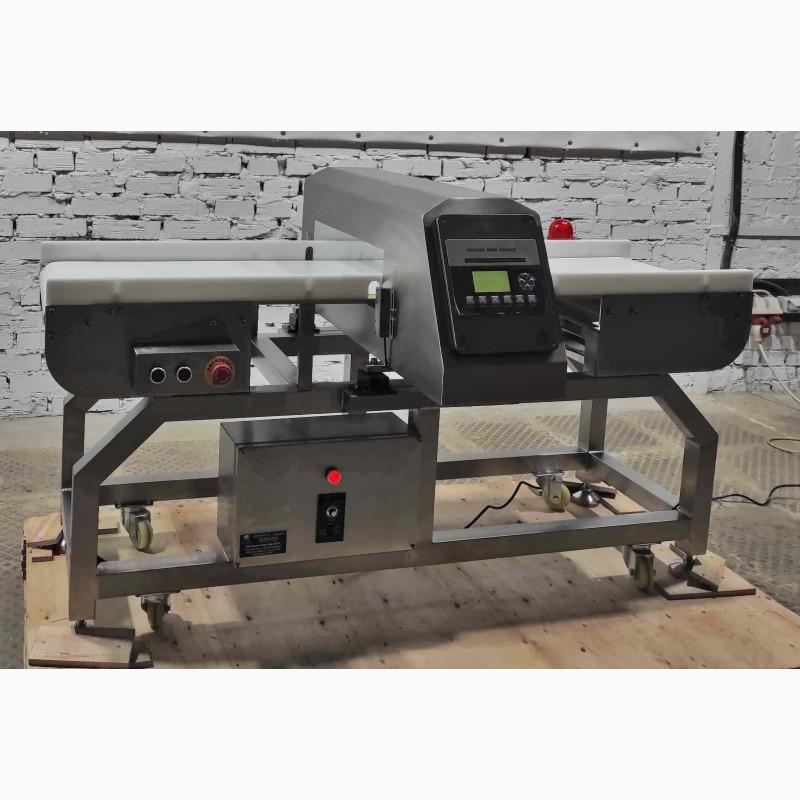

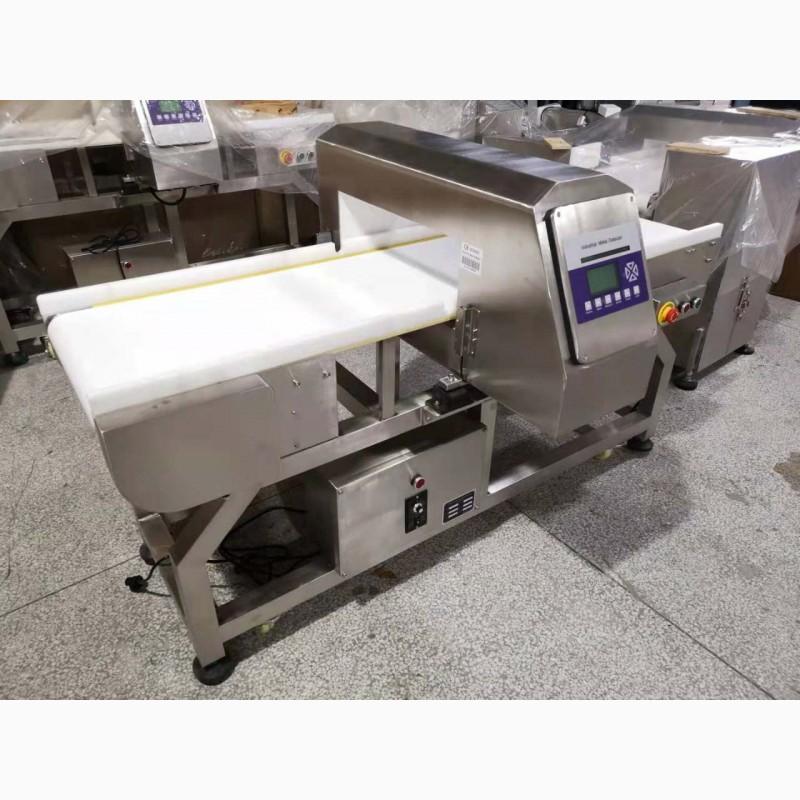

STvega MD-P metal detector - a series of conveyor-type digital metal detectors with high sensitivity. The metal detector is designed to detect foreign objects in unfrozen food products. It uses advanced signal processing technologies, including DSP, DDS.

Suitable for foods including water-rich foods (fresh leafy salads, greens,vegetables andfruits,berries), extruded foods, high salt content, etc. It is used in conditions of high and low temperatures (up to -20 C), high humidity, and dust. The metal detector is manufactured in accordance with the requirements of HACCP, QS, ISO9000 certification.

Advantages of equipment:

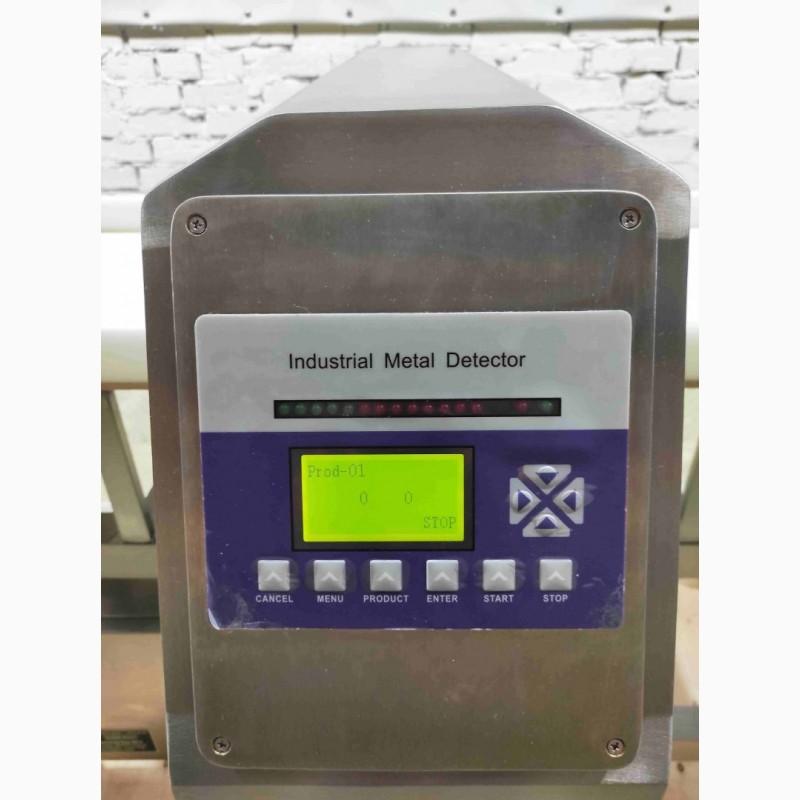

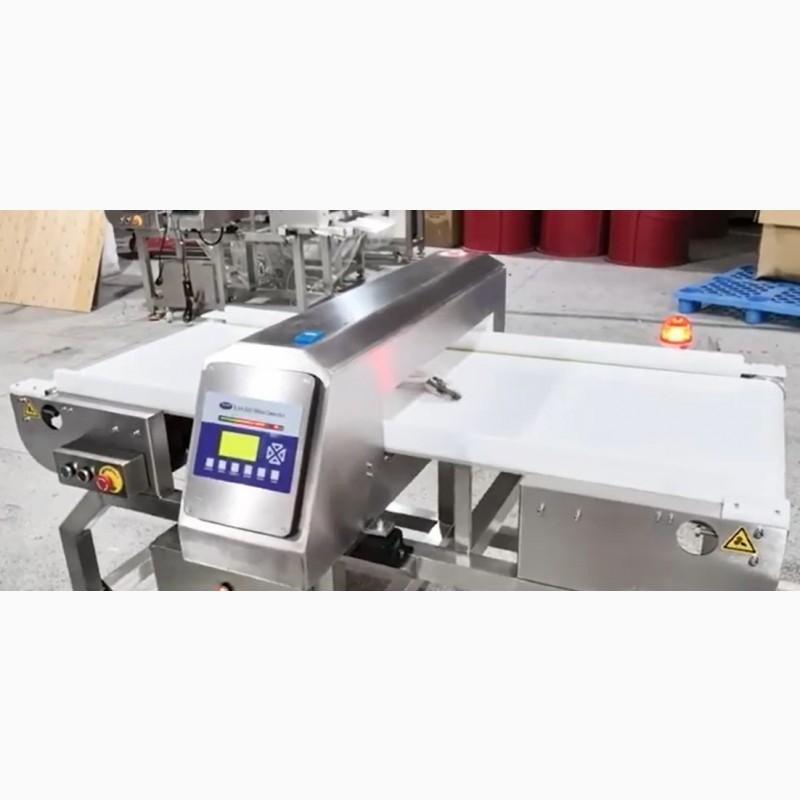

• Simple menu operations - all settings and use are simple and convenient, without adjustment for operators, LCD control display.
• When a foreign body is detected, the sound and light alarms are automatically triggered.
• Stable operation detects iron, stainless steel, copper, aluminum and all kinds of metal shavings mixed with food.
• Up to 99 types of different products can be recorded (commonly used product detection parameters).
• Easy to disassemble for maintenance and cleaning.
• High detection sensitivity and accuracy.

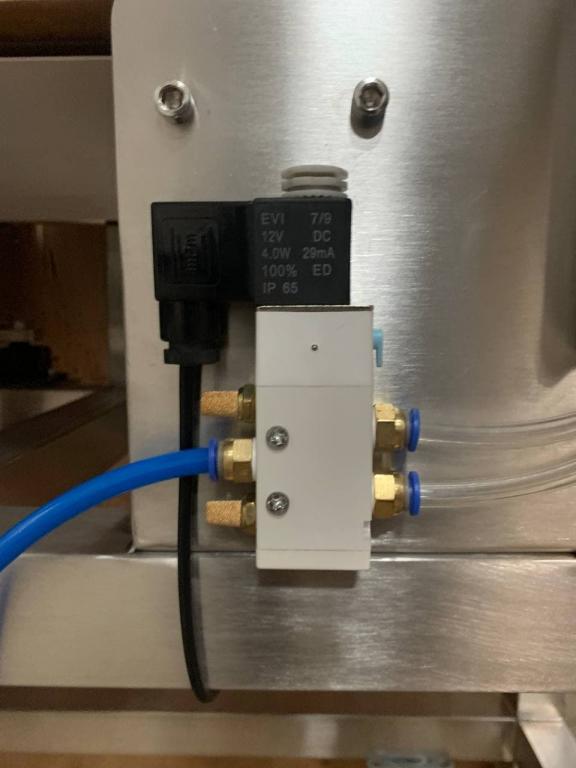

• Additionally, it can be equipped with a pusher (when a foreign object is detected, the product rejection system is automatically activated, the product is dumped into a plastic tray).

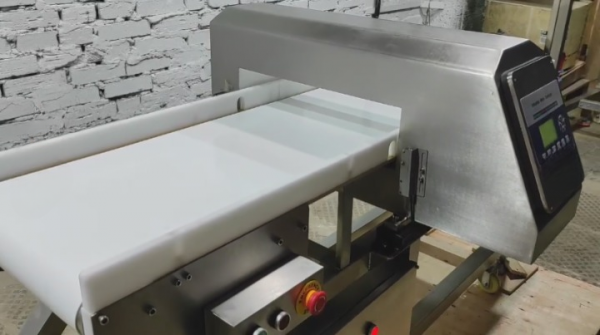

Note: The sensitivity of the metal detector depends on the size of the window for product passage - the larger the window, the lower the sensitivity.
There can be many variants of the machine according to the dimensions of the input window for the product, as well as according to the sensitivity to different types of metals.

Features:
Dimensions: 1600*800*1100 mm
The length of the conveyor belt: 1600 mm
Conveyor belt width: 350 mm
The size of the window for product passage (WxH): 400*200 mm(//tractor-service.com)
Width of the passage window: ≤380 mm
Height of the pass-through window: ≤180 mm
Height of the conveyor belt from the ground: 700+100 mm (due to height adjustment)
Conveyor belt movement speed: 10-40 m/min.
Power: 90 W
Voltage: 110/220 V
Frequency: 50/60 Hz
Signal system: buzzer with signal lamp
Driving route: from left to right
Screen language: English
Detector material: stainless steel SUS 304
Frame material: stainless steel 201
Tape material: food-grade polyurethane.
Weight: 300 kg
