Gas generator 100 kW, fuel wood chips, wood chips, SMART-NRG - 100 kW, Kyiv

Gas generator 100 kW, fuel wood chips, wood chips - Pyrolysis Energy installation SMART-NRG - 100 kW.

The main fuel is wood chips.

Humidity is not more than 20%.

Technical parameters:

Electric power - 100 KW.

Fuel consumption (cod) - 160 kg/h.

Output of charcoal - 48 kg/hour

Output of wood vinegar - 32 kg/hour.

Weight data of cod converted into gas - 80 kg/hour.

Internal electricity consumption - 21.4 kWh.

The size of the block of meters (L*W*H) – 17*3.5*5.5

Gas generators have CE certification.

The specific consumption of fuel chips with a moisture content of 20% is from 1.3 to 1.6 kg/per 1 kWh. electrical energy.

There is an opportunity to integrate a secondary heat exchange circuit for heating and obtain useful heat energy - cogeneration.

In our equipment, the initial fuel or raw material is cod, from which we obtain a number of products on our equipment.

One of which is generator gas.
(//tractor-service.com)

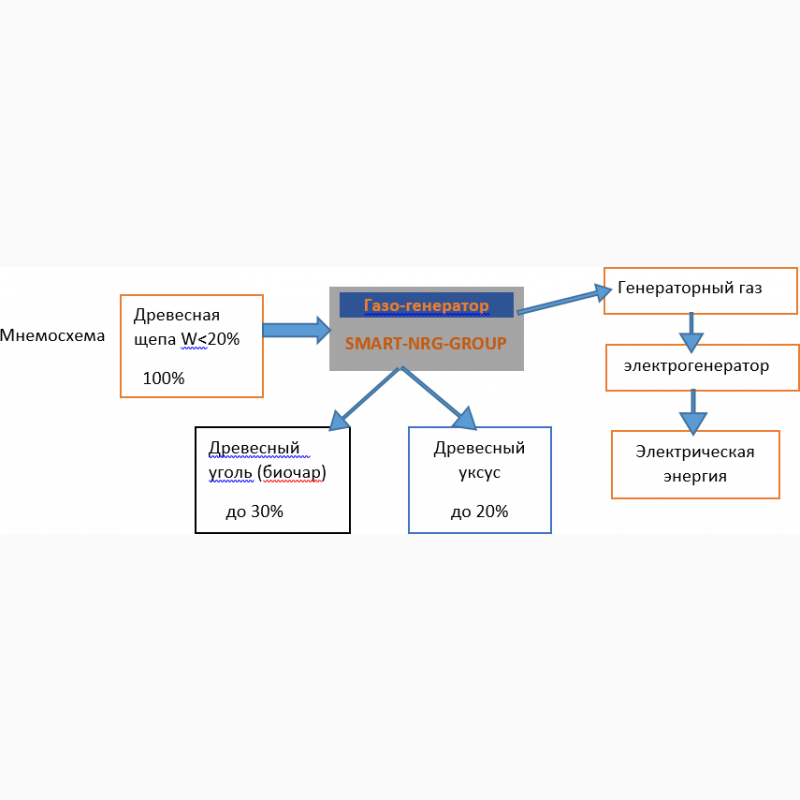

In the process of processing, we get 3 products.

Three different products in different aggregate states:

Gaseous: generator gas - used to generate electrical energy on a gas-piston electric generator.

Solid -charcoal (or biochar), quality charcoal has a market value of $0.4/1 kg.

Liquid - condensed liquid of a dark color - wood vinegar is a valuable raw material forinsecticides and others. chemical industries.

We have succeeded in structuring the gas generation process in such a way that the generator gas can be obtained and successively purified to the required purity, so that it can be fed to gas-piston generators with subsequent stable production of electrical energy.

In our gas generators, the descending fluidized method of gasification with atmospheric air at low rarefaction is realized.

The magic word PYROLYSIS is also found in certain layers of the reactor - gasifier. After the gas is obtained and purified, it is fed as fuel to aelectric generator - a gas piston engine.

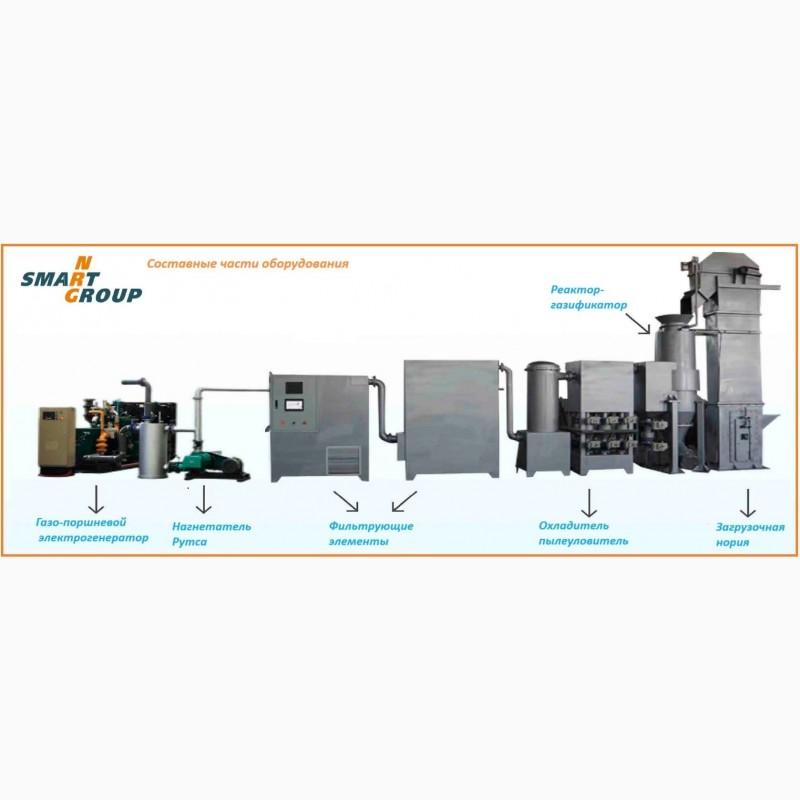

The entire line of equipment gas generators is equipped with appropriate gas-piston engines.

Gas-piston engines undergo mandatory adjustment at our enterprise.

Gas generators have water cooling and are equipped with appropriate cooling towers and use water in a closed circuit.

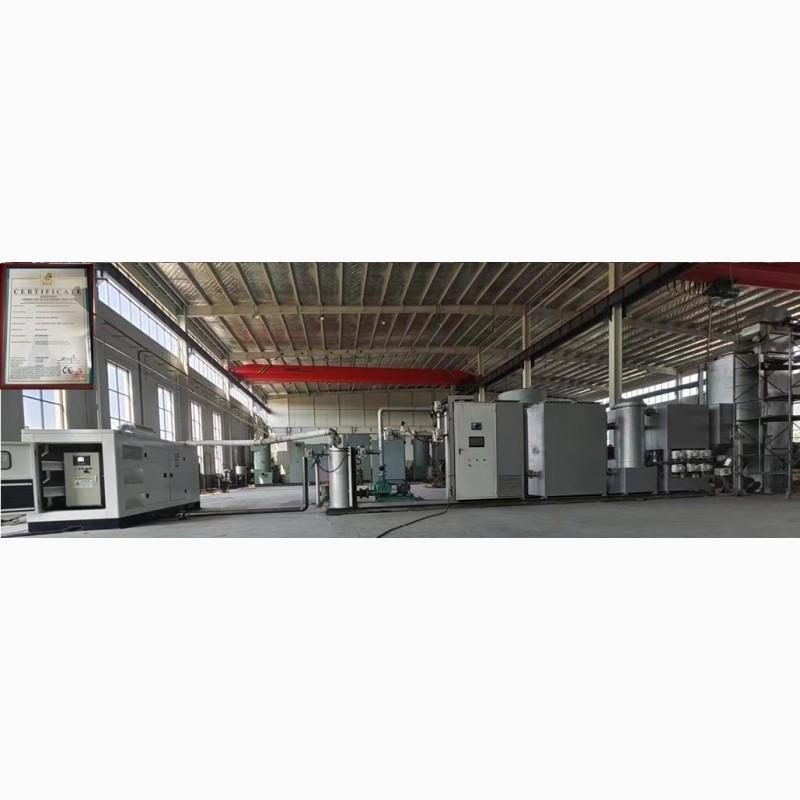

After ordering and manufacturing the corresponding equipment components, each generator is assembled and tested in the factory on a single platform, which is then shipped with the equipment to the customer, ensuring quick installation at the point of use.

All processes take place in automatic mode. The control system has a modern interface and the software allows for remote monitoring and commissioning.

All of the above, the energy crisis and the desire to receive electricity not from the grid, but our own, forced us to organize all our knowledge, efforts and skills into a logically built, repetitive industrial cycle and create equipment for the production of alternative and controlled electrical energy.

The equipment manufacturing period is 60 working days.

The warranty for the equipment is 1 year from the day of its commissioning.

The company carries out chief installation and commissioning of equipment with training of the Buyer's personnel.
