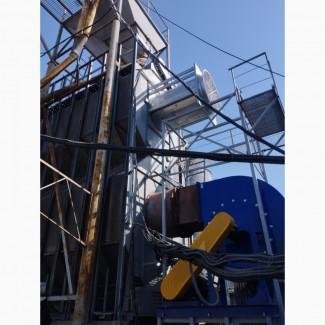

Grain dryers. Gas burner for grain dryer, Kirovohrad region.

We manufacture efficient gas burners for grain dryers of the modular (column) type of American, Turkish and domestic production. We convert suchgrain dryers to work from natural gas to propane-butane and vice versa. In addition, we install such burners instead of heat generators that usedfirewood and other types of fuel.

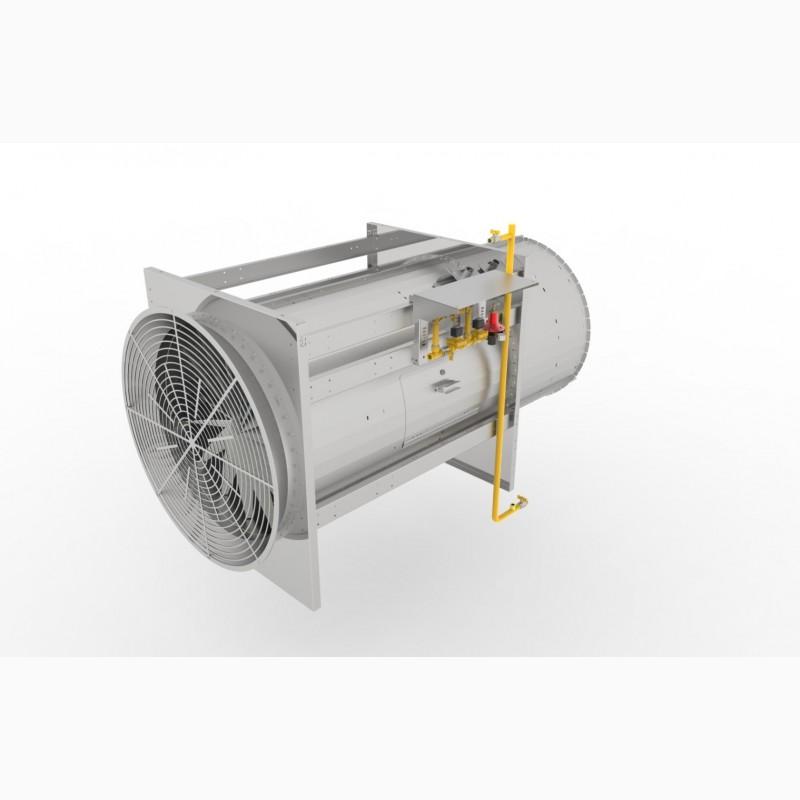

The 1500 mm long outer bell of the burner unit provides stable air supply to the burner located in the 1000 mm long internal mixing chamber. This arrangement allows you to avoid heating the outer chamber and minimize heat loss.
Diffusers of gas burners are made of heat-resistant (1300 C) stainless steel brand AiSi 310-S. In the process ofgrain drying, the burners work automatically, maintaining the necessary temperature of the drying agent in the chamber of the grain dryer, ensuring economical use of gas.
A high-quality electronic ignition and flame control system guarantees stable operation of the burner. The use of such burners allows you to save up to 15% of gas consumption.

Delivery set.
- socket (body) of the burner made of galvanized steel;
- a fan with the ability to adjust the angle of attack produced by Multi-Wing;
- fan electric motor;
- burner diffuser - construction of high-temperature stainless steel AiSi 310-S
European production;(//tractor-service.com)
- flame control sensor;
- ignition electrode;
- propane-butane liquid phase vaporizer (for the PB series);
- gas main (valves, faucets, Italian-made gas pressure regulator);
- gas riser;
- air temperature sensor in the drying chamber in the housing;

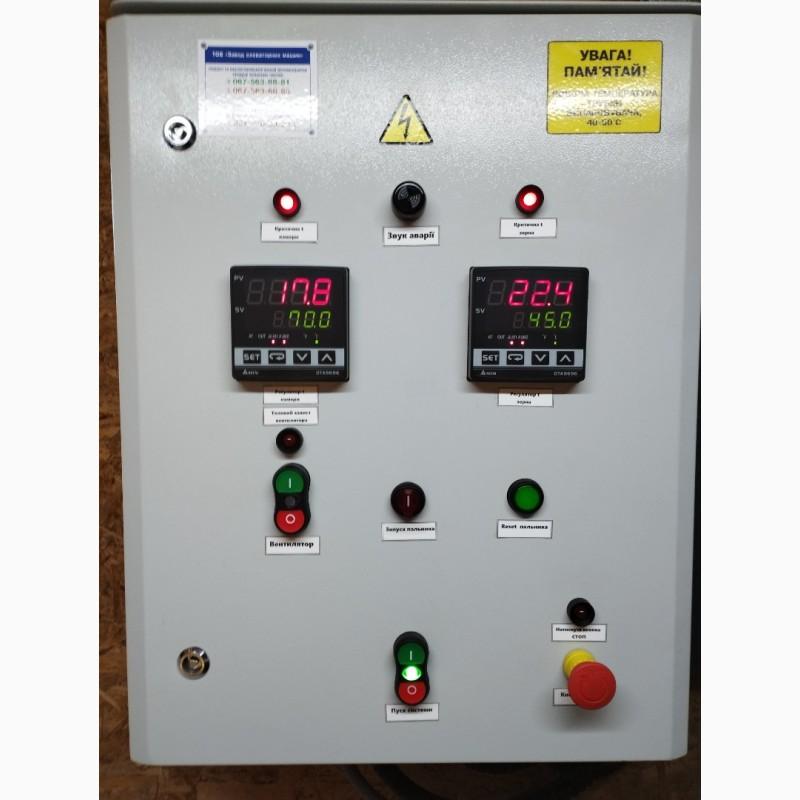

- burner control cabinet:
Delta DTA thermostat with a digital indicator of the temperature of the drying agent, which allows you to select and control the working and critical parameters of the burner;
Siemens burner control unit;
start-up protection block of the Shnieder fan electric motor ;
intermediate relays, buttons, Shnieder light and sound indication.
Delivery Installation. Start-up. Warranty and post-warranty service.
