Diesel generator CUMMINS C 100 D (100 kW), in a casing, Kyiv

Technical parameters:

Nominal power, kW 100

Nominal power, kVA 125

Maximum power, kW 110

Maximum power, kVA 138

Output voltage, V 230/400

Output current frequency, Hz 50

Fuel tank capacity, l 250

Weight of the diesel generator (without fuel), kg 1750

Fuel consumption at 100% load, l/h 34

Fuel consumption at 75% load, l/h 25

Fuel consumption at 50% load, l/h 15.5

Engine speed, rpm 1500

Rated engine power, kW at 1500 rpm 120

Engine volume, l 5.9

Oil system capacity, l 16.4

Cooling system capacity, l 26.4

Included:

Synchronous alternating current generator

An automatic fire extinguisher of the Sprut-1o type is installed inside the gas station.

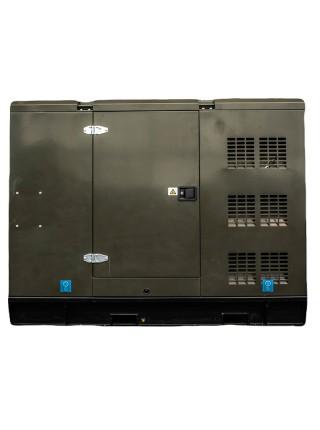

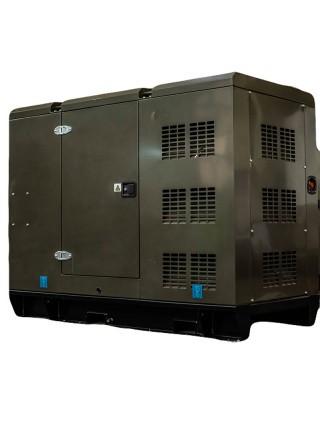

DSU in a noise-absorbing casing IR23

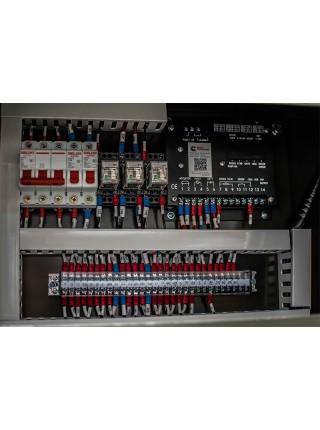

Control panel with interface in Ukrainian.

The fuel tank built into the frame of the DSU

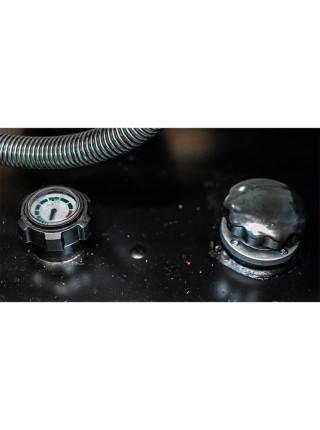

The fuel level indicator on the control panel of the diesel generator, which allows you to determine the fuel level without the need to open the casing of the diesel engine.

Coolant

Accumulator battery (AKB)

Automatic battery charger

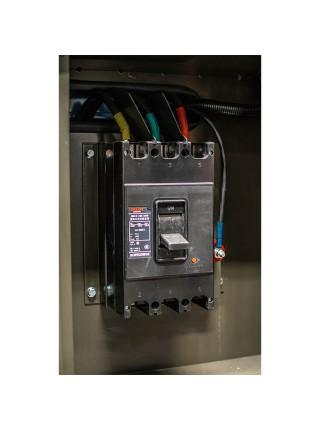

Three-pole automatic switch

Muffler

Emergency stop button

Motor oil

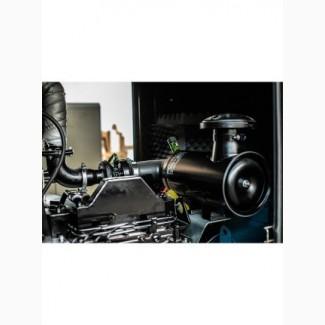

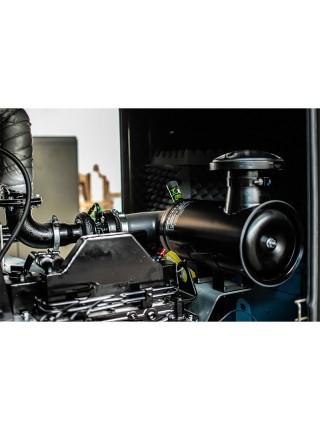

A set of filters (air, fuel, oil) on standard places

Operating instructions

Reference dimensions (L x W x H) 2810X1120X1630 (mm)

Noise level, dB 70

Weight of the diesel generator (without fuel), kg 1750

Main technical characteristicselectric power station:

- Automatic engine stop when the control parameters reach the limit values.

- Automatic voltage regulator.

- Control of frequency, voltage and current.

- Correct sine wave at the output.

- Electronic microprocessor control panel.

- Counter of engine hours.

- Emergency stop button.

- Remote monitoring and control of equipment.

- Automatic heating of the coolant.

- Recharging the battery in standby mode.

- Control panel interface language - Ukrainian

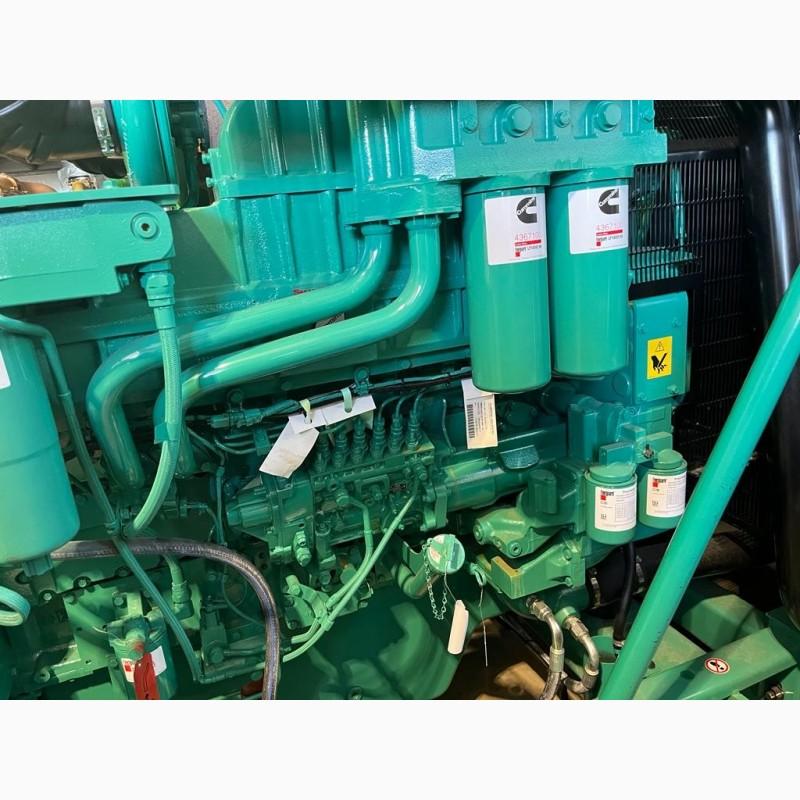

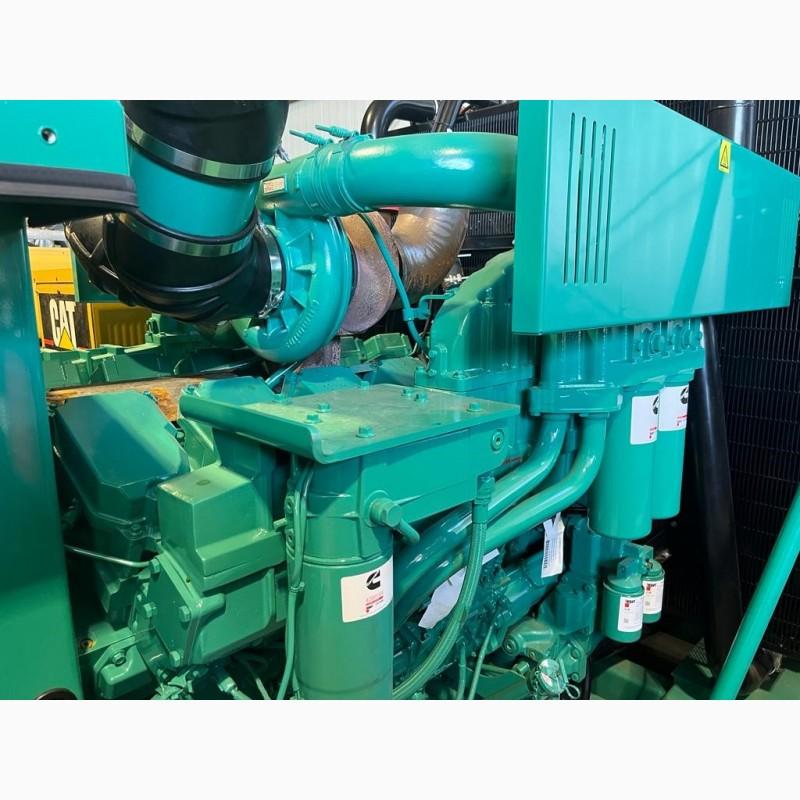

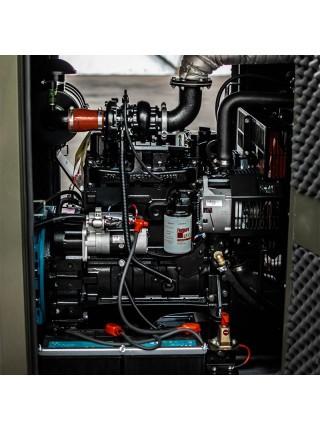

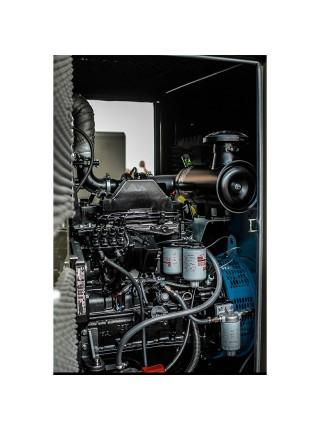

Engine model Cummins 6BTАА 5.9-G2

Engine related power (kW) 120

Engine power in standby mode (kW) 130

4-stroke turbocharged engine

Volume (l) 5.9

Compression ratio 17.3 : 1
(//tractor-service.com)
Method of starting Electrostarter, AVR

Speed control: ^5%

Environmental standard EURO 4

Speed mode - Electronic speed control

Fuel consumption at 75%-100% load, l/h - 25-34

Fuel consumption at 75%-100% load, l/kW - 0.25-0.34

Working time at 75% load - 12 hours

Fuel system model BYC A/Electronic speed controller

Fuel tank volume (l) 250

Cooling method - Closed water cooling

Oil system capacity (l) 16.9

The capacity of the cooling system is 10 l.

Reference engine weight (kg) 411

Alternating current generator model - STRUM

Nominal voltage (V) 380

Nominal frequency (Hz) 50

Nominal speed (rpm) 1500

Power utilization factor 0.8

Phase and wiring - Three phase, Y-shaped configuration

Efficiency (%) 95.19

Excitation method - Brushless excitation

Insulation class - H

Protection level - IP23

Reference weight of the alternator (kg) 470

Control of working parameters

Coolant temperatures

Fuel level sensor

Oil level - visually (dipstick)./sensor

Minimum ambient temperature, 0С -35

Maximum ambient temperature, 0С +50

The need to perform in a noise-proof all-weather jacket.

and requirements for it - Execution in a noise-proof all-weather casing (metal parts are covered with an electrostatic coating and painted with a resistant paint that excludes corrosion during the set period of operation; the presence of thermal insulation of the exhaust system)

Noise reduction equipment - Industrial muffler

Requirements for refueling with working fluids - The product is supplied filled with oil and coolant designed for an ambient temperature of -35°С to +50°С.

Warranty obligations:

Warranty – 24 months or 2000 engine hours.

- Warranty period of operationdiesel power plant 24 months

- Warranty period of operation of the battery is 24 months.

Additional services:

- Commissioning and debugging works

- Training of the Customer's service personnel

High-class equipment from one of the best European manufacturers. Reliable, technological, at a reasonable price, much lower than competitors.

Generators with American CUMMINS engines, economical and with a large motor resource.

The manufacturer's representative offers minimum prices and convenient terms of equipment supply.

The generators have a heater that will help to use the generator in the winter and simplify cold start-up. (If the customer needs, it is possible to install a WEBASTO heater, which will make it much easier to start the generator at a temperature below 0*С)

Due to the constant recharging of the battery from the generator, you will not have to worry about its discharge.

Diesel generator warranty service for 2 years or 2,000 engine hours, whichever comes first. (provided by qualified specialists).

Professional engineering and technical staff with 10 years of work experience.

Service center in Kyiv.

Delivery throughout the territory of Ukraine (except temporarily occupied).

DIESEL GENERATOR CUMMINS C 100D (125 kVa) in casing, 100 kW

Purpose and mode of operation - To work as a backup power source and ensure continuous operation 24 hours a day.

Equipment - Diesel power plant on a frame in a casing for stationary installation;

- Battery with cables and terminals;

- Lubricating/technical fluids for the first start and one replacement;
