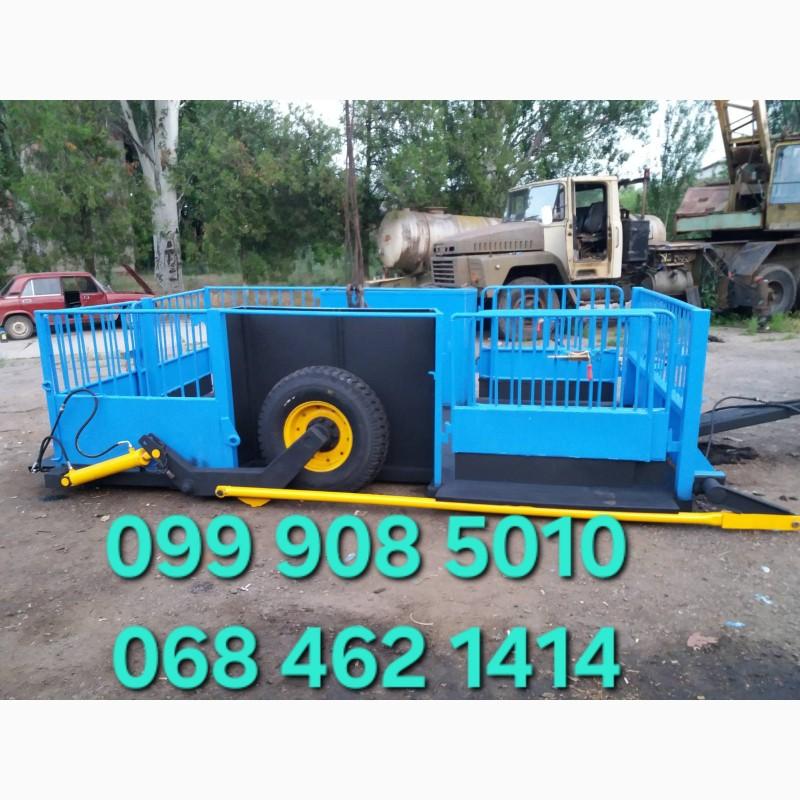

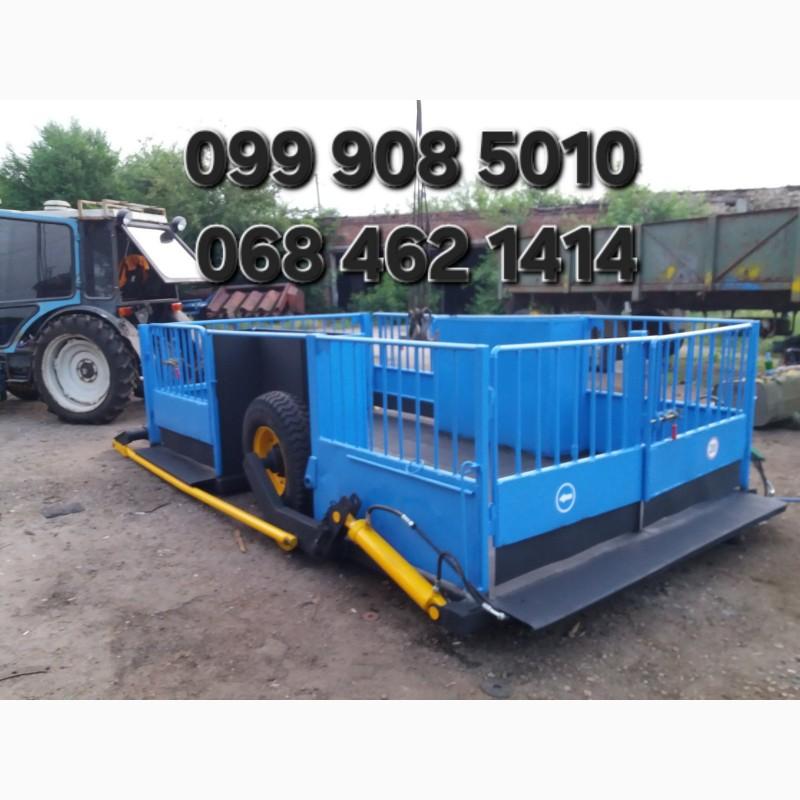

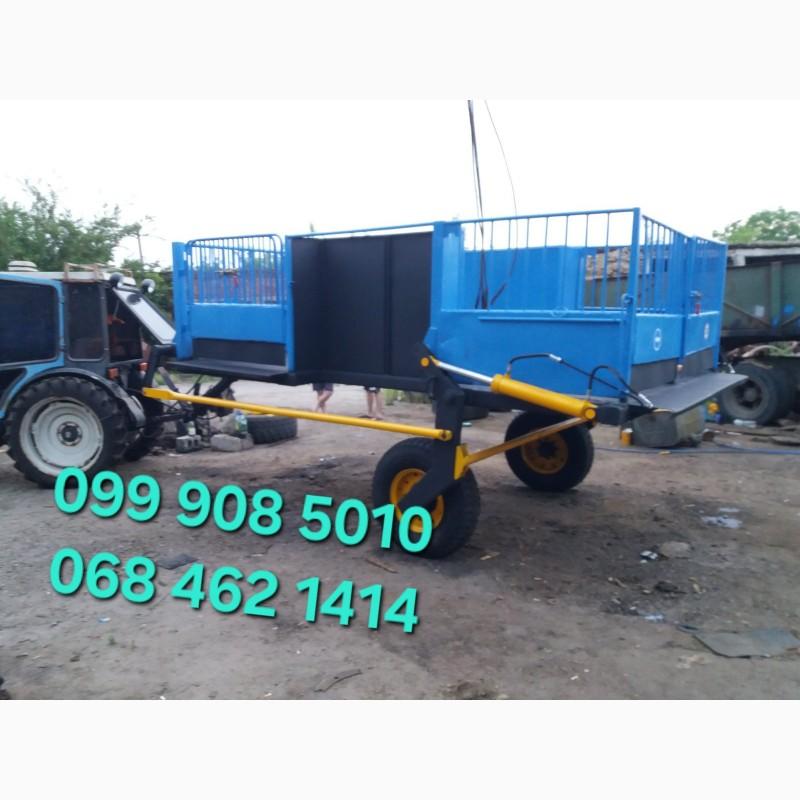

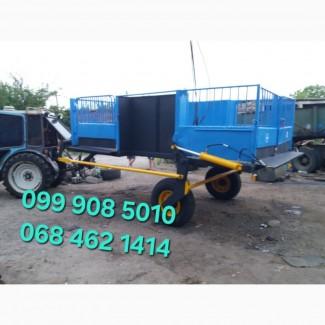

Cart trap, for transporting animals TT-1S, Zaporizhskaya oblast.

The livestock semi-trailer is used for transporting cows, goats, horses, pigs, and birds. The cattle truck is used for loading/unloading cattle, for transportation between livestock farms, farms, pastures, feedlots, over short and long distances.

The TT-1S trap trolley is intended for work with tractors of classes 9 and 14 kN (brands T-40, T-40A, MTZ-80, MTZ-82, etc.). Lifting the platform of the TT-1S ladder truck to the transport position and lowering it to the ground level is carried out by a lifting mechanism with a hydraulic drive, working fromhydraulic system of the tractor. The TT truck-trap can be used in all climatic zones of the country and replace loading ramps and various auxiliary devices for loading and transporting pigs (from weaning to fattening, weighing, from plot to plot, to slaughter), are intermediate technological transport for collecting and transporting pigs from farms to cattle trucks. Ease of operation and reliability of the construction of the TT ladder trolley are confirmed by the experience of successful operation in numerous farms.
Custom floor options — steel or non-slip hardrubber.

The use of the TT-1C ladder truck provides:
• loading and unloading of animals from the level of the ground to the level of the receiving ramp, the floor of the cattle truck, as well as ordinary cars of all brands - quickly, saving time, without trauma, stress for the animals;
• transportation of animals without the use of additional means of loading;
• weighing animals in the body, onscales, installed on farms and complexes;
• increasing productivity, reducing labor costs and annual operating costs.

TECHNICAL CHARACTERISTICS:

The weight of the TT-1C ladder trolley, kg. 165
1500
The maximum load capacity of the TT-1S ladder truck, kg 2000
The capacity of the body of the TT-1S ladder truck
(with animal weight up to 130 kg)(//tractor-service.com)
here are 15 heads
The weight of the TT-1S ladder truck, kg 3500
The working speed of the TT-1S ladder truck, km/h up to 10
Transport speed of the TT-1S ladder truck, km/h
to 20
Loading height of the TT-1C ladder truck, mm
- in the upper position
- in the lower position
1350
190
Overall dimensions of the trailer
ladder trucks TT-1S LxWxH, mm
- in the upper position
- in the lower position

5560x2500x2400

* Specify the prices - they may change - according to the exchange rate, metal prices, fuel and payment terms.
