Irrigation pumps nl hydroo (Spain), Kyiv

Horizontal single-stage pumpstype pumps NL (NLF, NLX, NLN, NLD, NLFX, NLFN, NLFB, NLXN) company "HYDROO" (Spain) are used for pumping various liquids (including aggressive ones) and are used in water supply systems, pressure boosting, heating, circulation, air conditioning, in technological processes, in industry, construction, communal services, agriculture, for irrigation, fire fighting and in other areas.

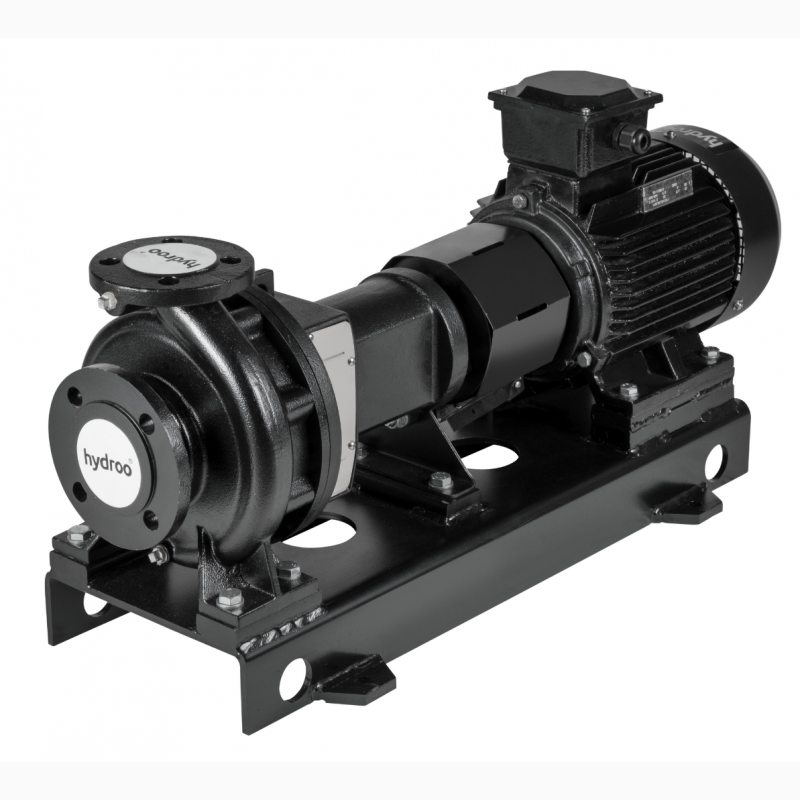

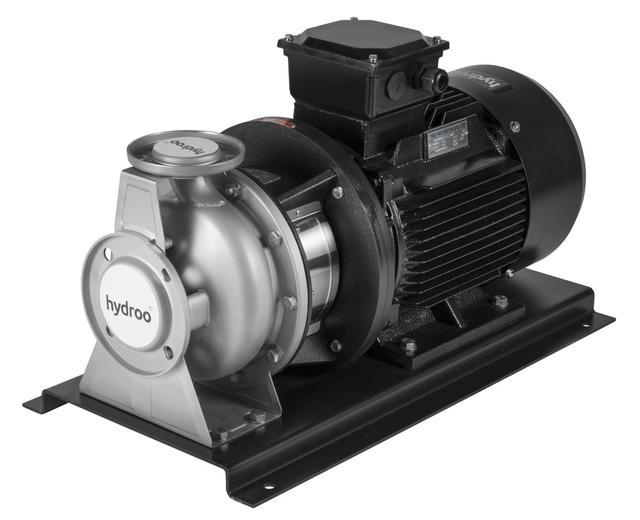

NL type pumps are cantilever horizontal single-stage single-suction centrifugal pumps, with an elongated shaft connected to the motor shaft by means of a semi-flexible coupling, with axial inlet and radial outlet,pump body and motor mounted on a common base plate.

Technical characteristics of NL type pumps:
1. Maximum productivity, Q=1200 m3/h.,
maximum head, H=160 m
2. Power: from 0.55 to 200 kW(//tractor-service.com)
3. Voltage: 3x380-415 V, 50 Hz.
4. Motor: standard, fully enclosed, air-cooled, insulation class F, degree of protection IP55, energy efficiency class IE3, 2900 or 1450 rpm, 2-pole or 4-pole.
5. Temperature of the pumped liquid: -15С...+110С.
6. Maximum inlet pressure: 6 bar.
7. Maximum working pressure in the system: 16 bar.
8. Materials: pump body - cast iron, n.zh. steel AISI 304, AISI 316 or Duplex, workingwheel – cast iron, n.j. steel or bronze, shaft - n.j. steel.
9. Deciphering the materials of NL type pumps:
- pump body: F - cast iron, X - stainless steel steel AISI 304, N - n.j. steel AISI 316, D - n.j. Duplex steel;
- impeller: Ø - cast iron, X - cast iron steel AISI 304, N - n.j. steel AISI 316, B - bronze.
