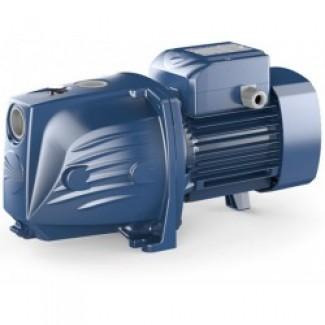

Surface pump SAM 100-HL. original Italy, Kyiv

Self-priming waterpumps with a large throughput and a good pressure distribution curve.
The pump can suck water from an 8-meter depth and pump water containing soda salts.
It is used for raising water, organizing indoor water supply systems and pumping small and medium tanks.
Operating characteristics:
The maximum working pressure is 8 bars.
The water temperature is no more than 35 °C
The ambient temperature is not more than 40 °C
The maximum suction depth is 8 m.
Designed for long-term work

Technical data
ПPOИБОДИТЕЛЬHOCTЬ:
m3/h = 4.2 - l/m = 70

Cost of water supply: 164
H (m) = 45

consumed:
kW = 1.1

Voltage:
230V-50Hz

Engine:
2-pole electric motor (2850 rpm)(//tractor-service.com)
Insulation class F
Protection class IP 44
Materials:
Bodypump — cast iron
Engine caliper — aluminum
The impeller is plastic
The diffuser is plastic.
The pump flange is stainless steel.
The shaft with the rotor is stainless steel.
Mechanical inserts - carbon/ceramic

APPLICATION
Self-priming water pumps with high productivity and good hydraulic characteristics. The pump can suck water from a depth of 8 meters and pump it with a small amount of air. It is used in cases where the water level is lower than the pump level, as well as for organizing private water supply systems and filling small and medium tanks.

Characteristics
Operating characteristics
The maximum working pressure is 6 bar.
The water temperature is no more than 35 °C
The ambient temperature is no more than 40 °C
The maximum suction depth is 8 m.
Designed for long work.
Engine
2-pole electric motor (2850 rpm)
Insulation class F
Protection class IP44
