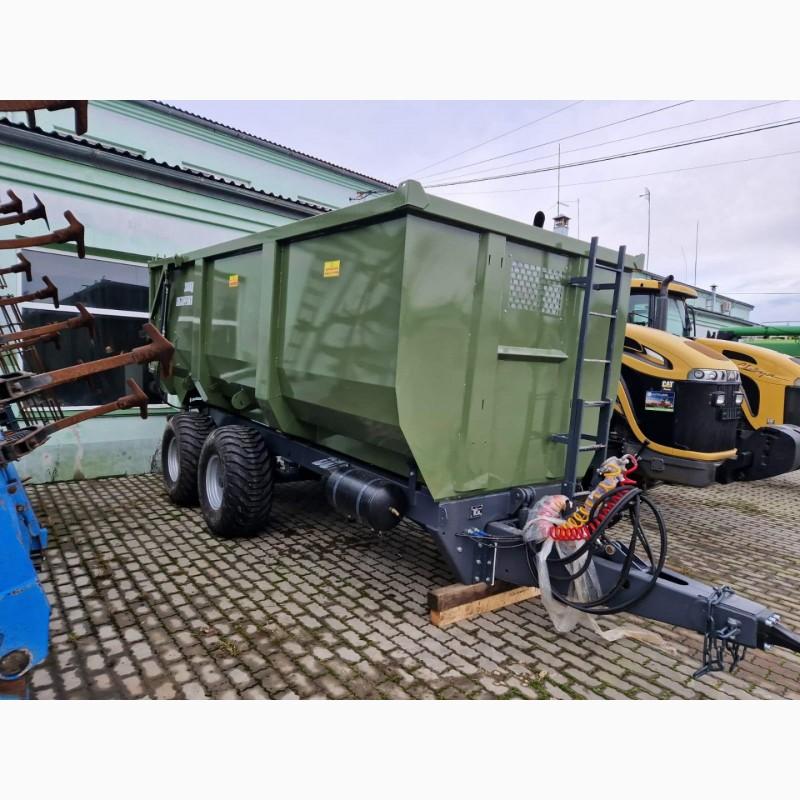

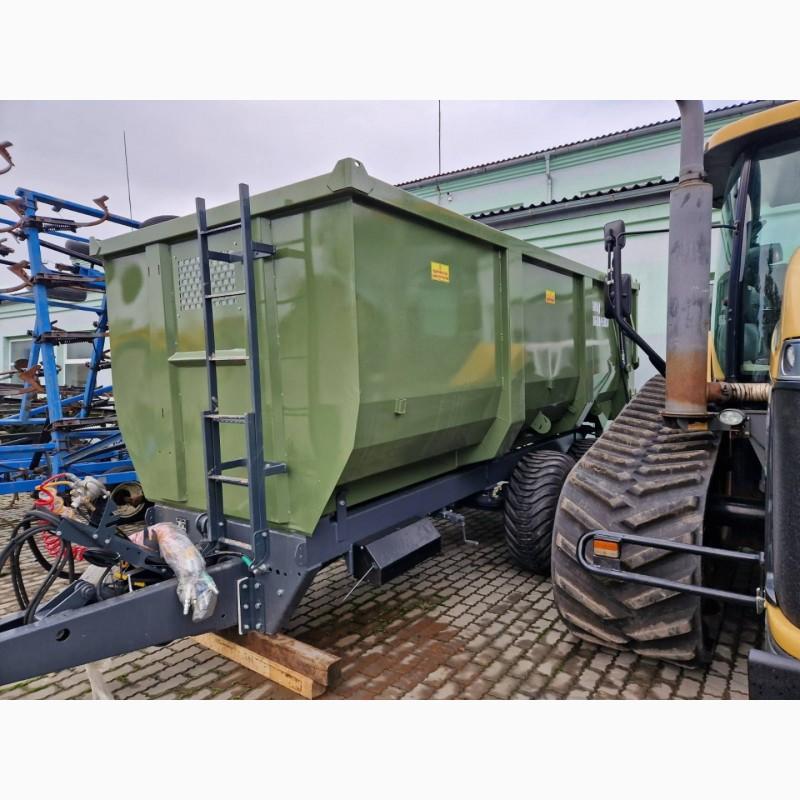

Tractor dump semi-trailer TSP-16 (2023), Rivne region.

Tractor dump semi-trailer TSP-16

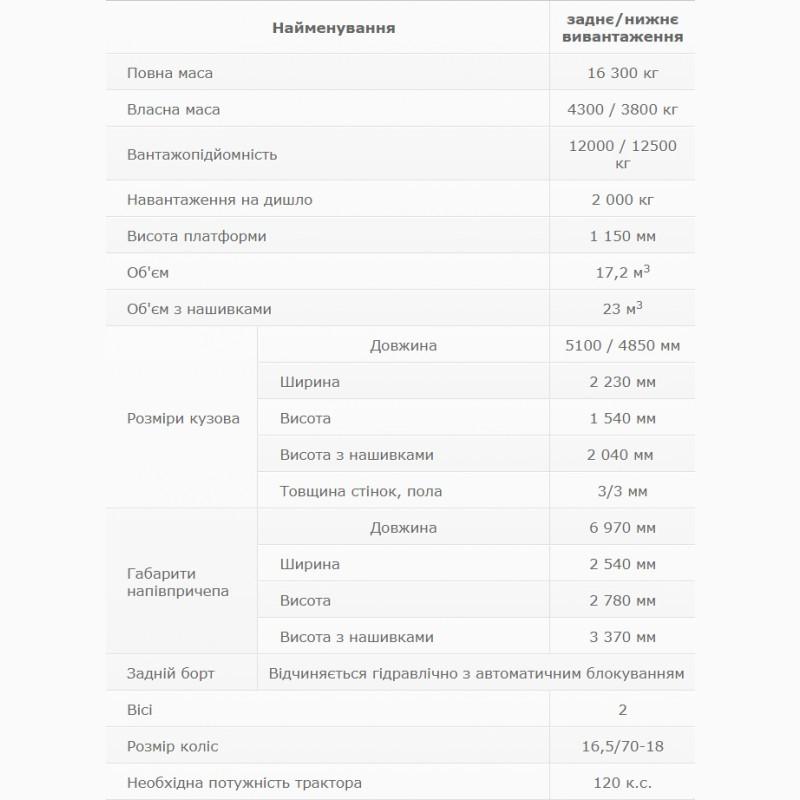

Technical characteristics of the TSP-16 tractor semi-trailer

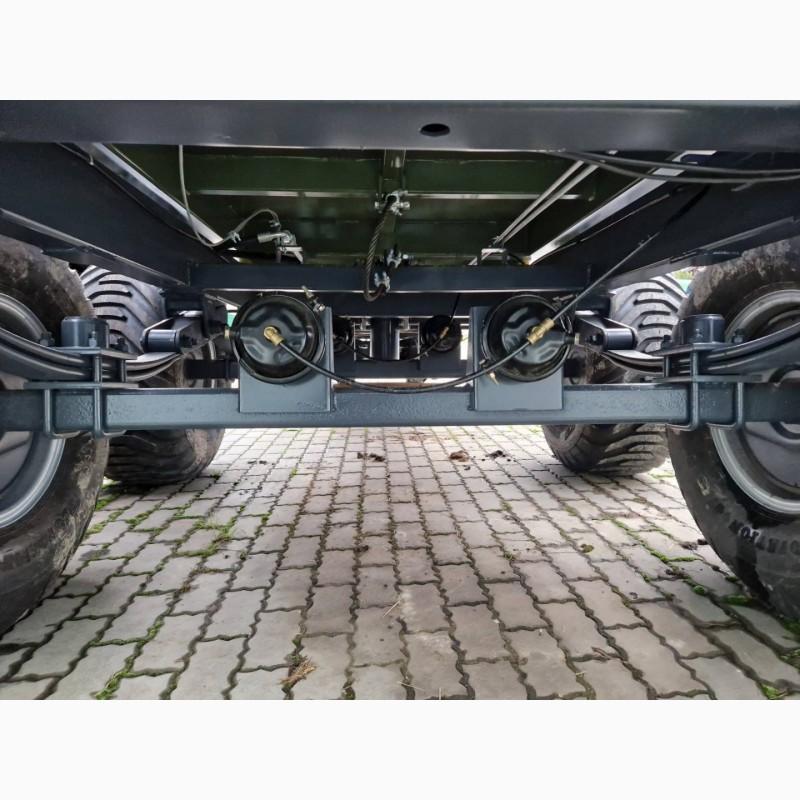

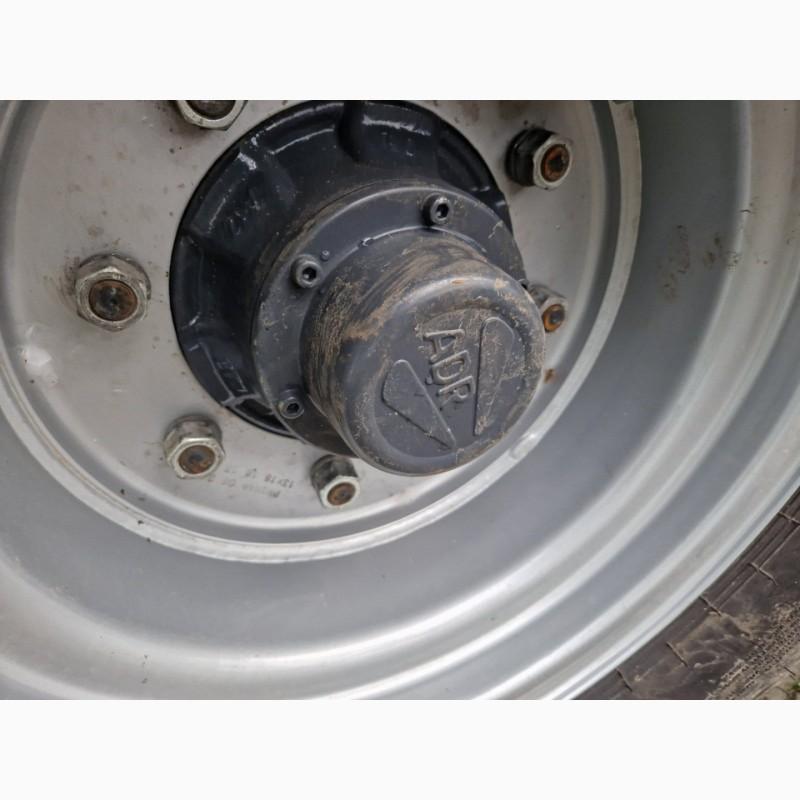

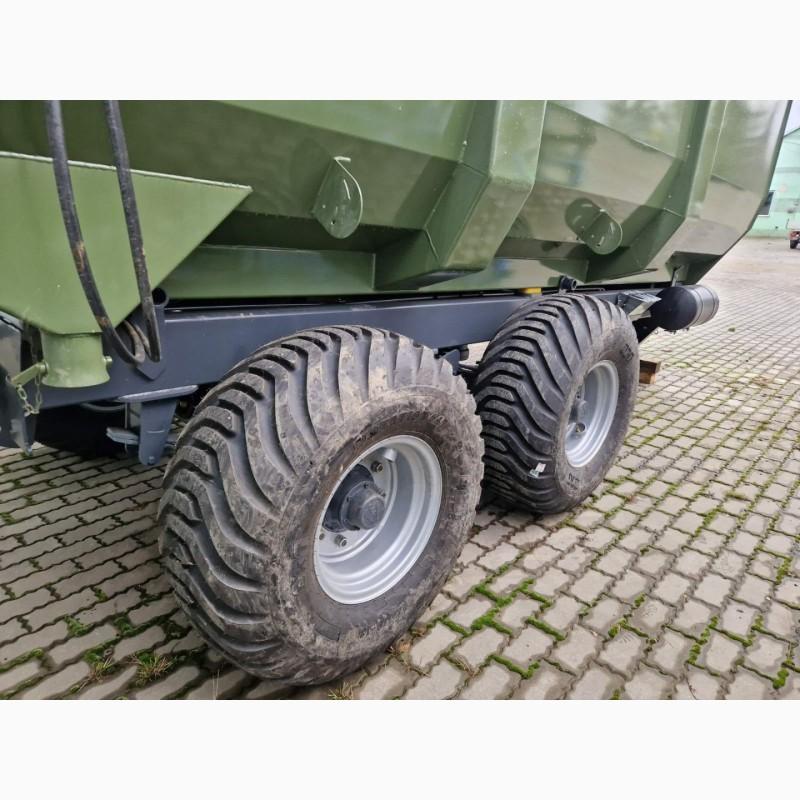

Two-axle tandem on springs (ADR Italy), axle 90x2100, solid
Tires size 16.5/70-18 (load 3.98 t at 30 km/h)
The braking system is pneumatic (hydraulic, mixed possible)

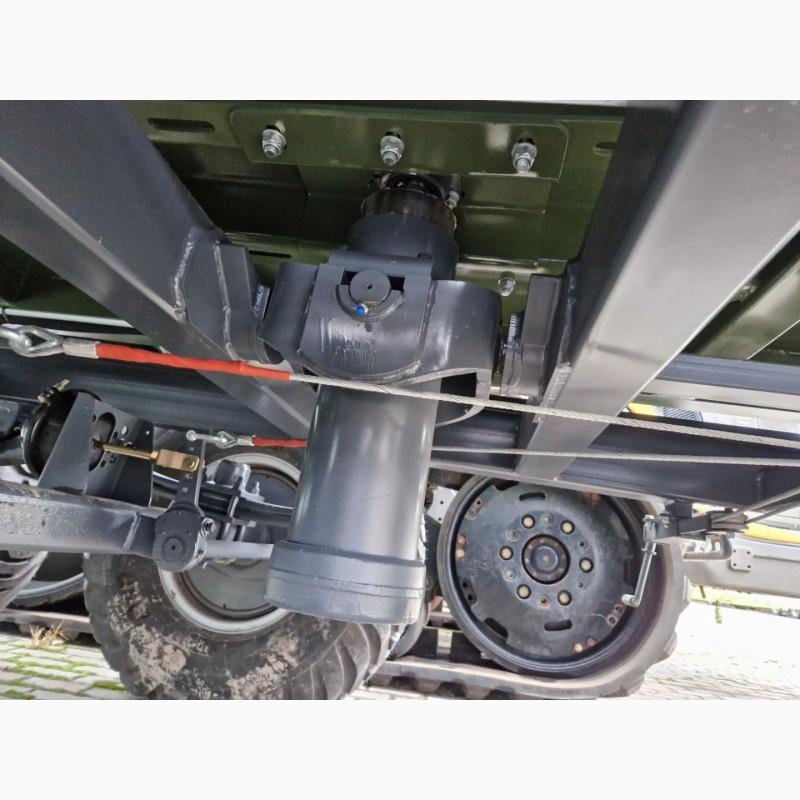

5-rod telescopic hydraulic cylinder (Italy), Ø170 mm
Conical-shaped body (the rear part is wider than the front)
Body V-17.2 cubic meters (with patches 23 cubic meters)
Load capacity 12 t
Hydraulic drawbar support

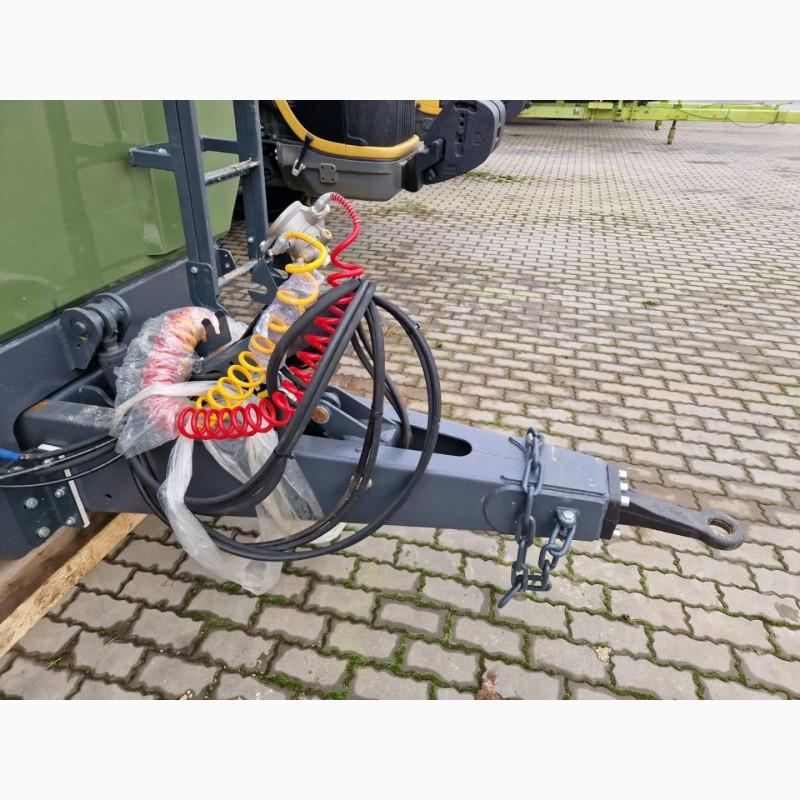

Towing ring Ø40, Ø50 or Ø90 mm Scharmuller (Austria)

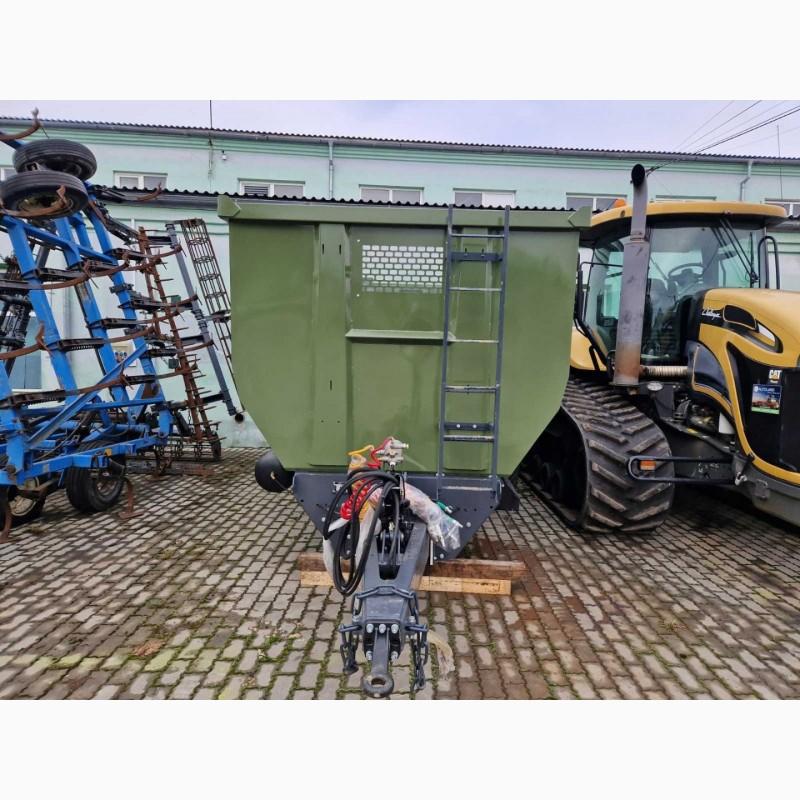

Service ladder

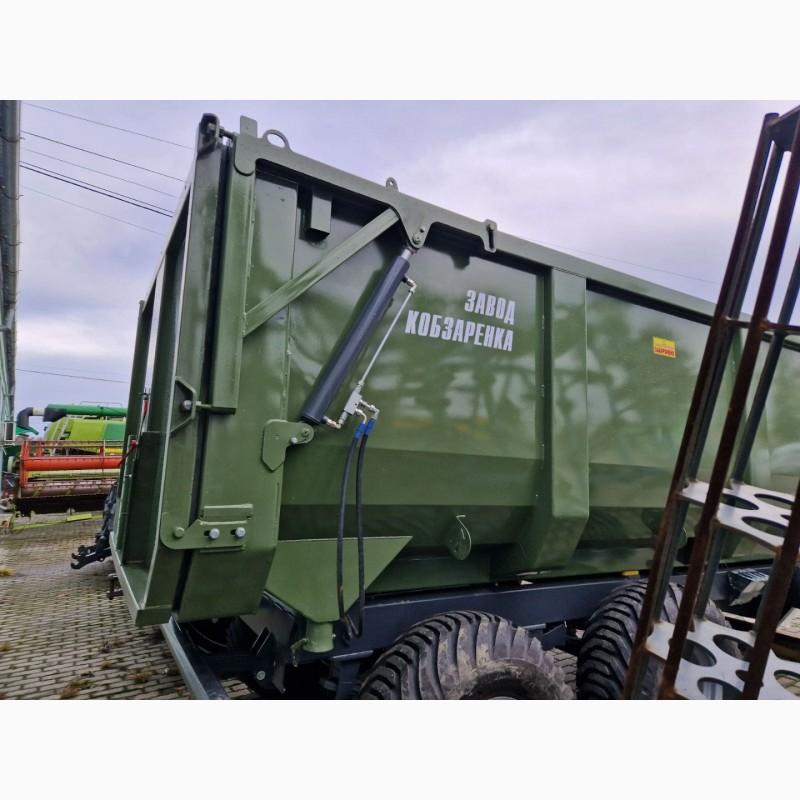

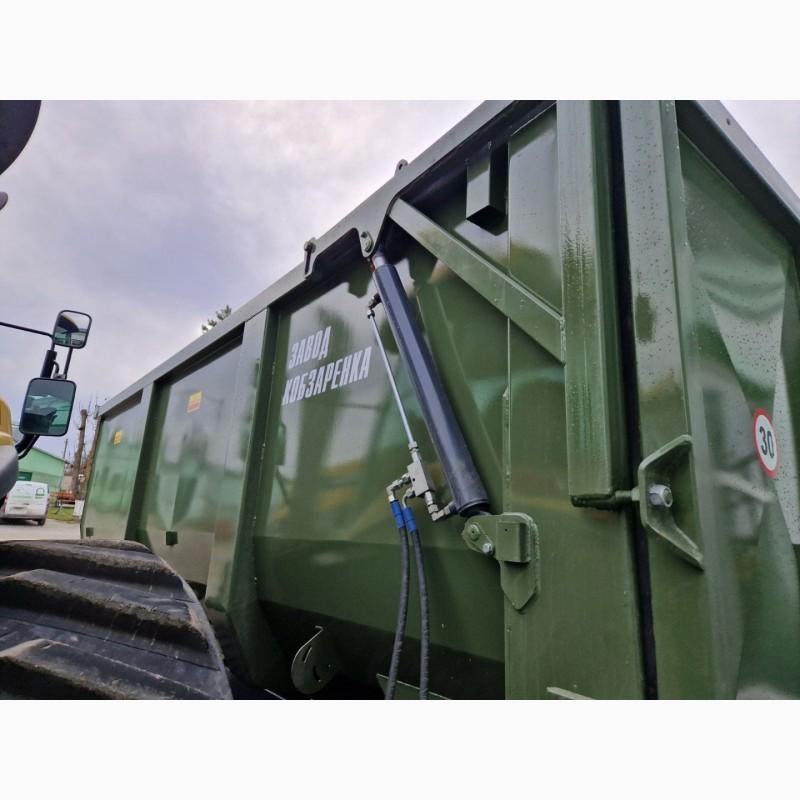

Hydraulically lifting rear side with a gate for dosed unloading of bulk materials.
Overall body dimensions LxWxH – 5100/2230/1540 (2040)mm

Additional options
Stripes 500 mm high V-23 m.cubic.
Awning system
Interchangeable tow ring Scharmuller (Austria)
Tires 500/50-22.5(//tractor-service.com)
Belts for potatoes

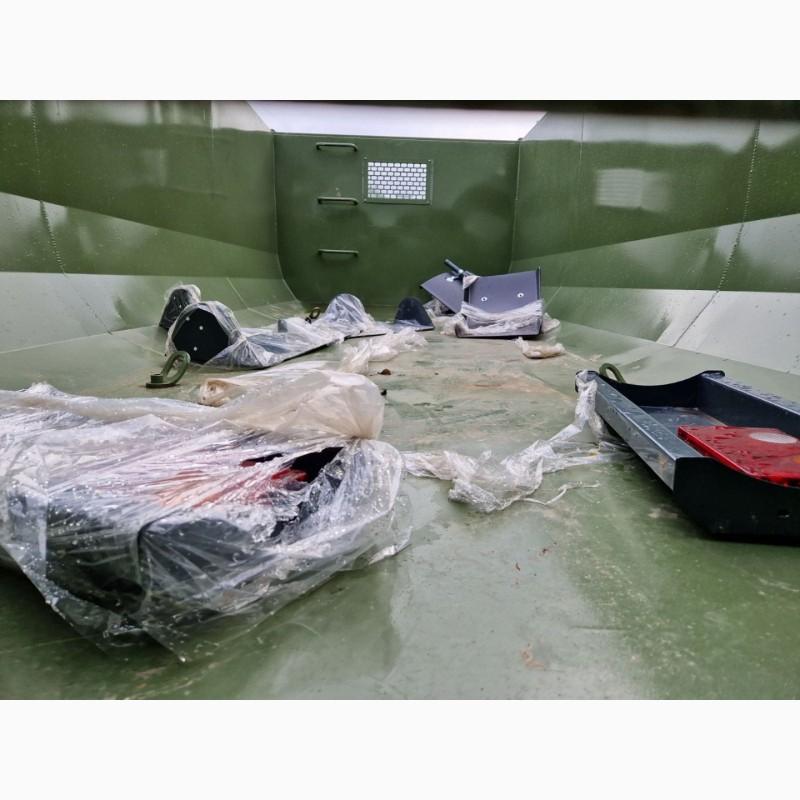

Equipment:
two anti-rollback supports;
ladder;
four hydraulic euro jacks;
cable with a seven-pole socket;
pneumatic cable for the tractor.
Thanks to the unique design of the TSP-16 semi-trailer (lightened frame and additional loading of the rear axle of the tractor), the semi-trailer carries loads of up to 12 tons and increases the tractor's passability on a wet field.
The single circuit pneumatic brake system is ideal for tractors MTZ, KhTZ, T-150, which are equipped with a compressor. Compressors must be installed on tractors of imported models that do not have compressors, or vice versa, semi-trailers must be equipped with hydraulic brakes.
