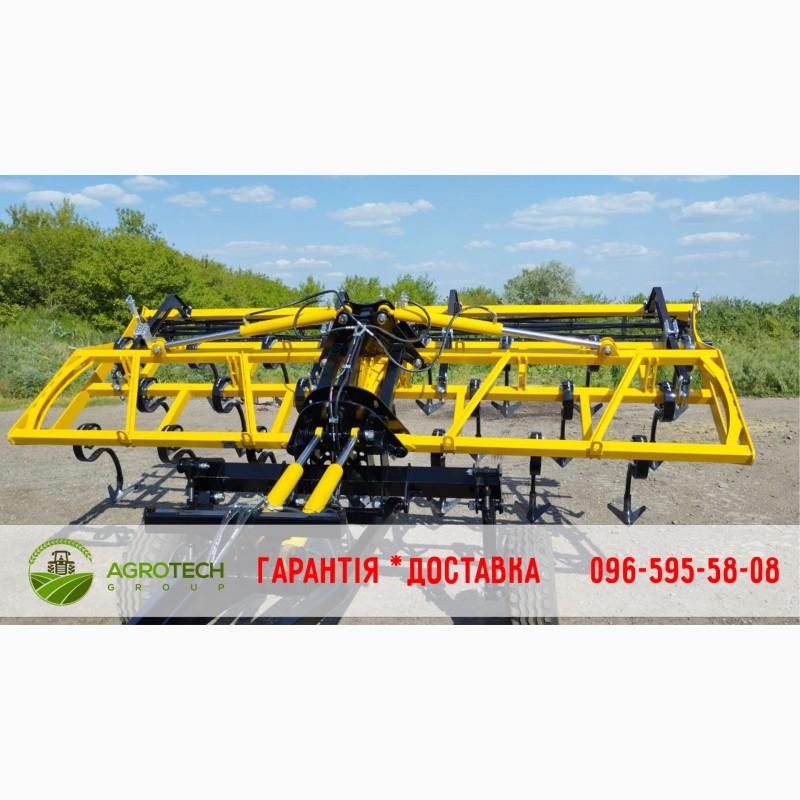

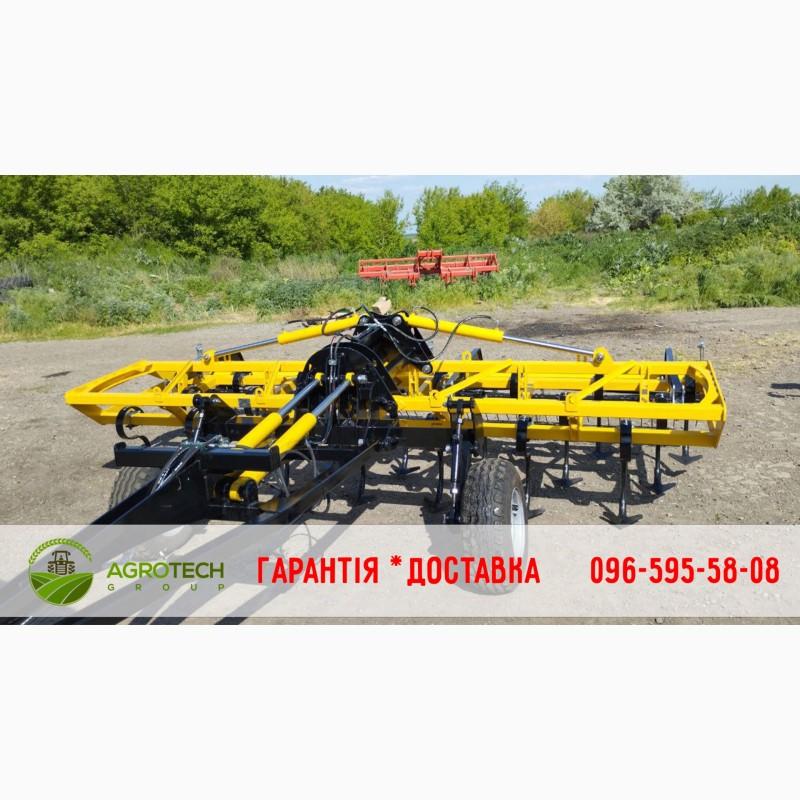

Cultivator solid mounted/trailer GENERAL KSN-2, 6; 3, 0; 3, 5; 4, 0; 5, 0; 6, 0, Kyiv region.

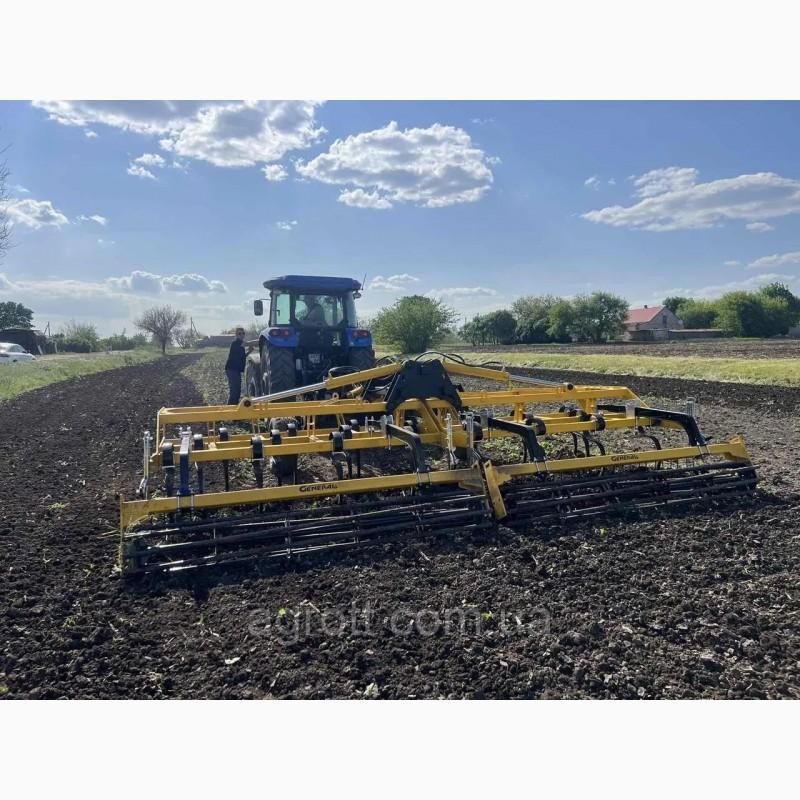

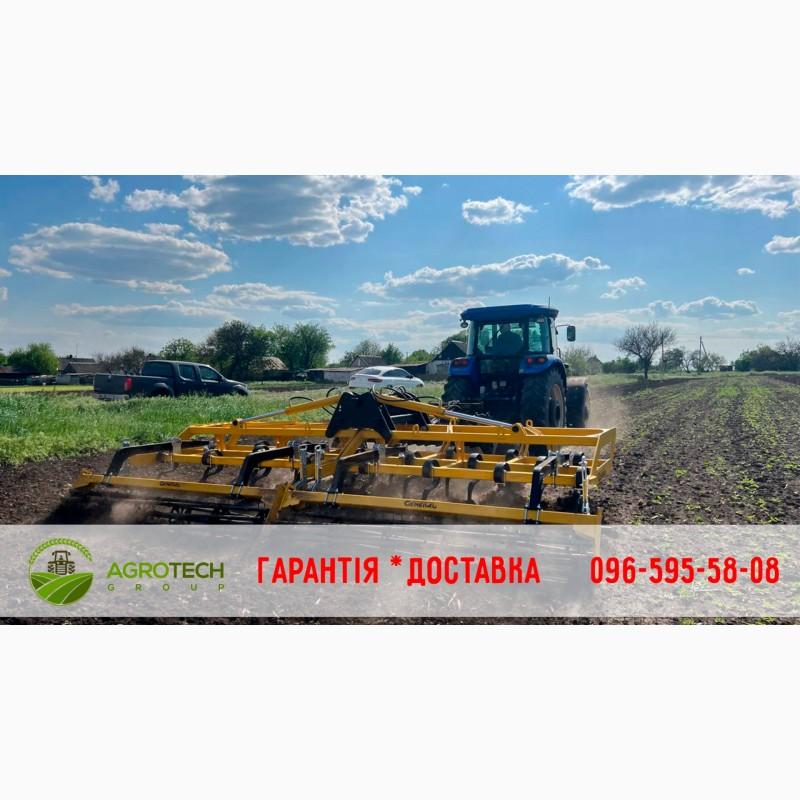

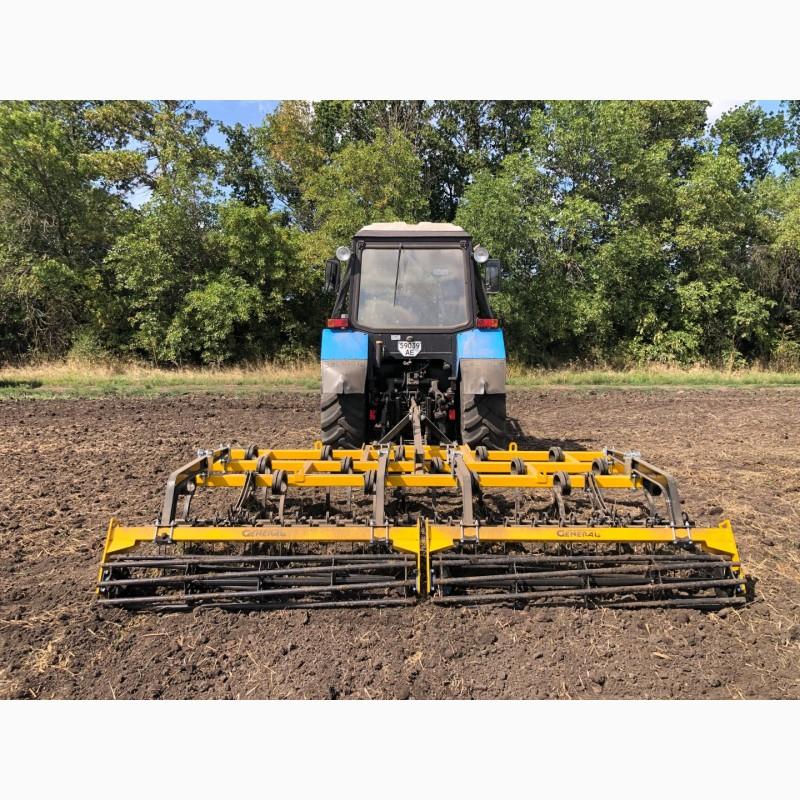

Cultivator solid mounted/trailer GENERAL-2,6; 3.0; 3.5; 4.0; 5.0; 6.0 - intended for pre-sowing cultivation and continuous steam processing. This cultivator provides complete soil preparation for sowing in just one pass through the field!

The range of applications of cultivators GENERAL 2.6; 3.0; 3.5; 4.0; 5.0; 6.0:
- Pre-sowing cultivation and seed bed preparation
- Complete processing and cleaning of vapors from weeds.
- Leveling plowing
These cultivators have several options for the configuration of working bodies.

Characteristics and equipment 1
Rack type: General protection with a safety spring and adjustment depending on the working conditions
A bushing with a bushing for lubricating the replaceable bushings of the working body.
Placement step: uniform staggered 250 mm

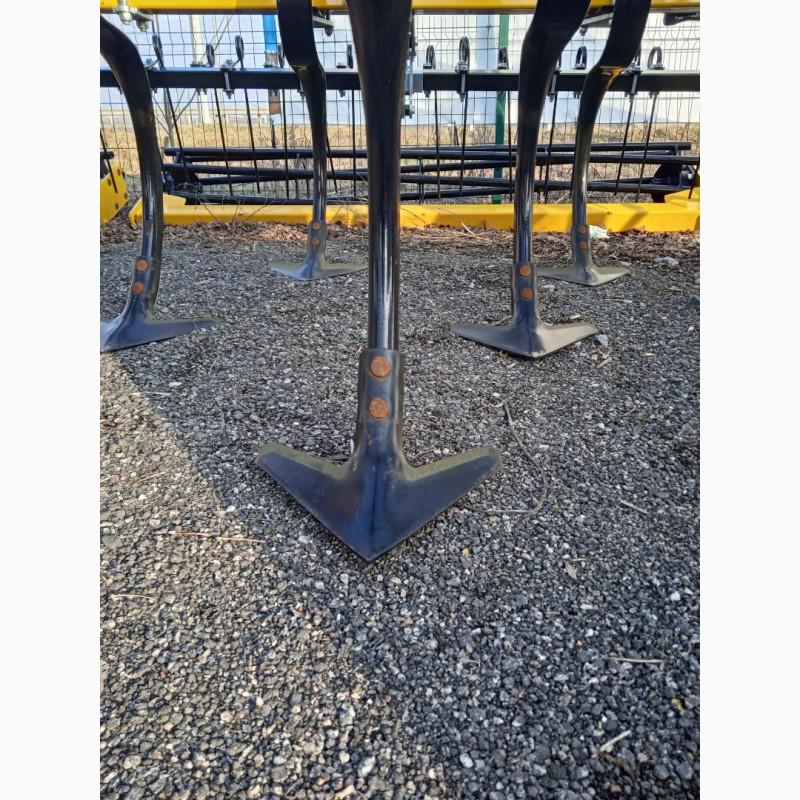

Paw width: In the 1st and 2nd rows - 270 mm, in the 3rd row - 330 mm
Material of legs and racks: Forged hardened boron steel with polymer super-resistant coating.
Functional properties:
- adjustment of the angle of attack and tension force of the "GENERAL" riser safety springs;

Characteristics and equipment 2
Bellota S-shaped racks made of high-tensile steel
Placement step: uniform staggered 220 mm
Paw width: 260 mm
Material of legs and racks: Forged hardened boron steel with polymer.

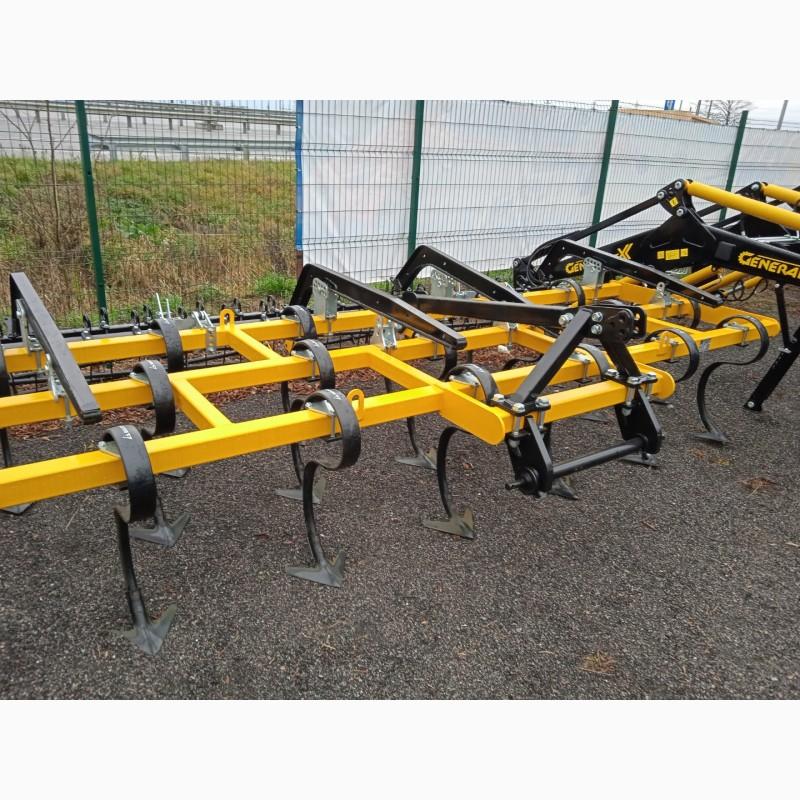

Characteristics and equipment 3

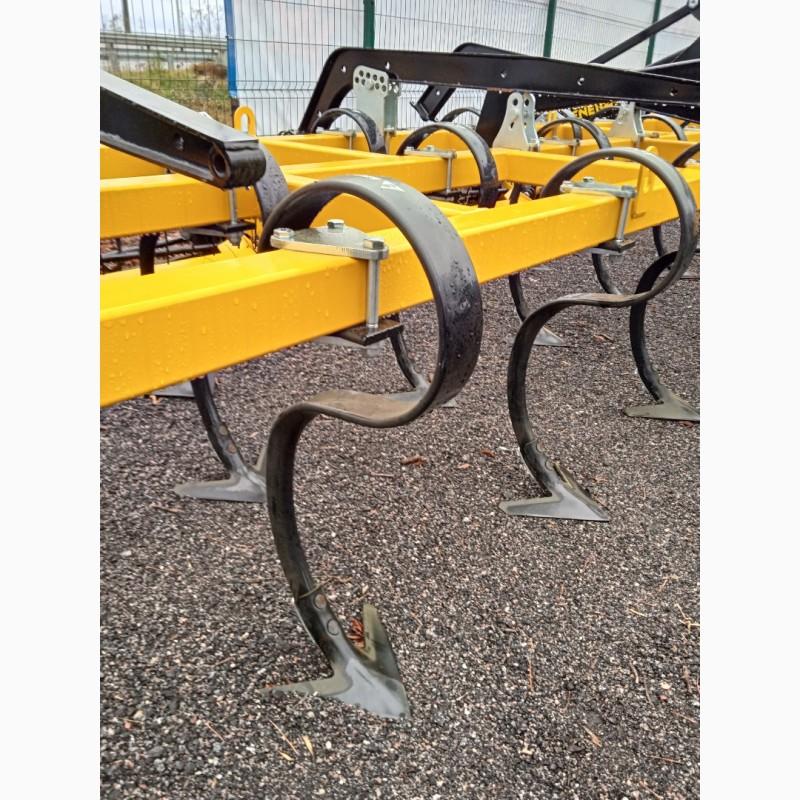

Rack two-turn Bellota 30x30 mm
Placement step: uniform staggered 250 mm
Paw width: In the 1st, 2nd and 3rd row - 260 mm(//tractor-service.com)
Material of legs and racks: Forged hardened boron steel with polymer super-resistant coating.

Frame with a wall thickness of 5 mm.
Complete set:
Fingers made of steel 45 with cotter pin.
All elements of the cultivator undergo mandatory processing, namely: cleaning, grinding and sandblasting! Before painting, primer and drying with a heat gun is carried out! At the end, all parts are covered with a polyurethane coating and dried in a drying chamber!

Functional properties:
- height adjustmentrolling rollers;
- adjusts the depth of cultivation of the cultivator due to the height of the skids and the overhangtractor.

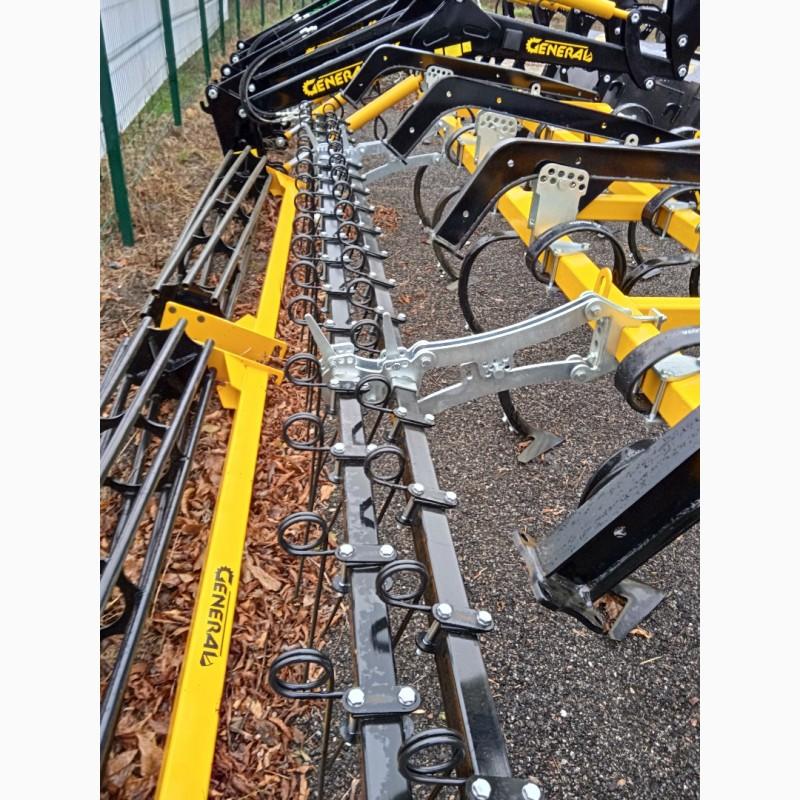

- Rake with spring hard teeth 8x320 mm made of hardened steel grade 70

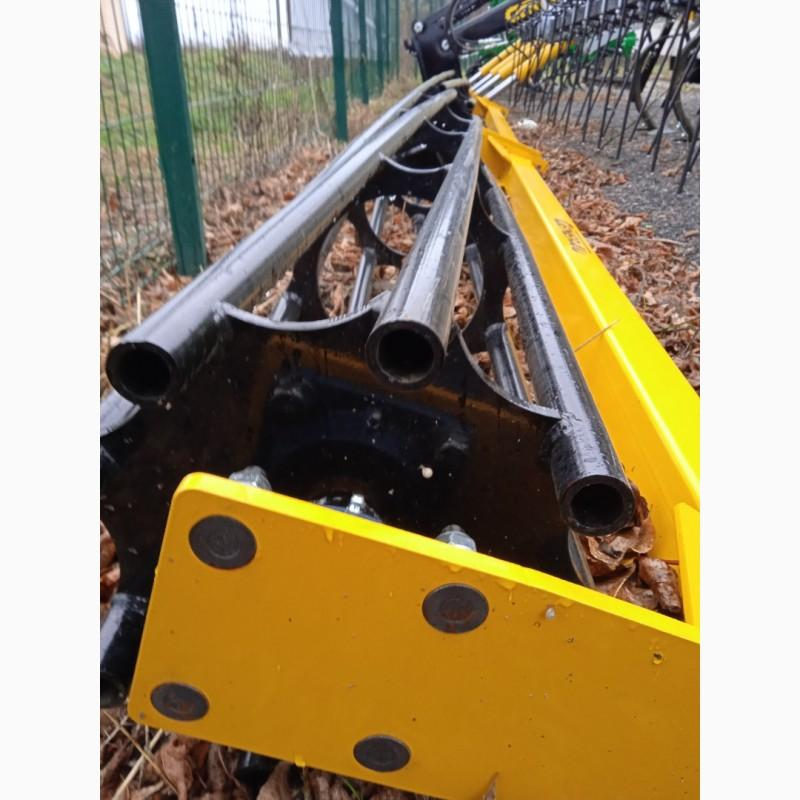

-Rolling rollers rolling with a diameter of 300 mm, a blade thickness of 6 mm and bearings in a cast iron housing UCF 208 (Japan)
- Lubricated fingers of power drives
- Fingers made of steel 45 with cotter pin

Characteristics
Main
Grip width, m 2.6 - 6.0

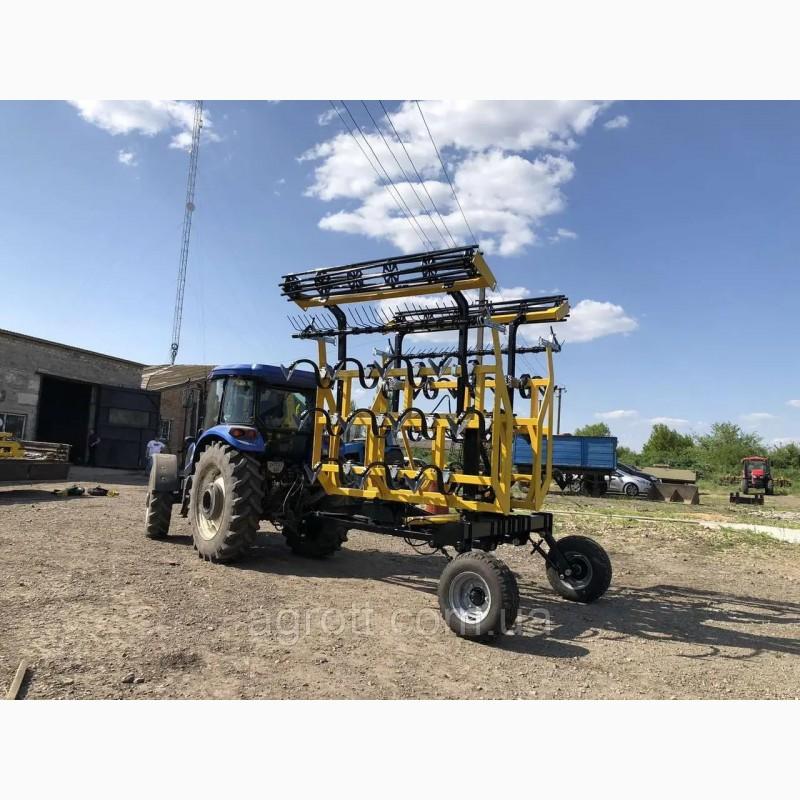

Aggregation method Mounted/towable
Number of rows, pcs 3-4
Processing depth, cm 4-12
Tractor power, hp 80-180

Warranty. Delivery
We offer you to purchase the GENERAL KSN-2,6 single mounted cultivator from the manufacturer in Bila Tserkva, exclusively at the lowest price on the agricultural market!
The warranty is valid for 12 months from the moment of purchase of the unit without limitation in working time.
And you also have the opportunity to order DELIVERY across Ukraine of this and other agricultural machinery by our transport, make a self-pickup or choose a carrier.
