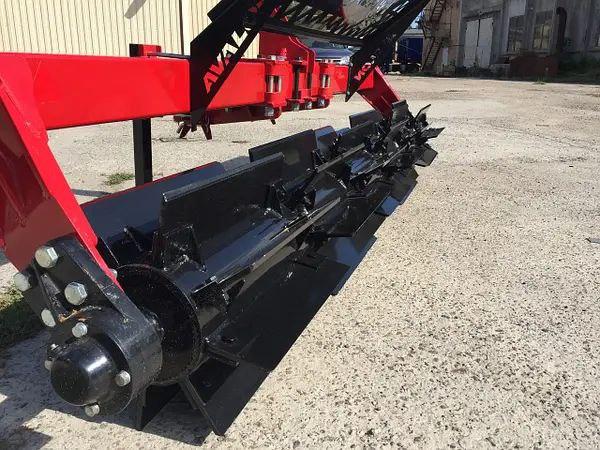

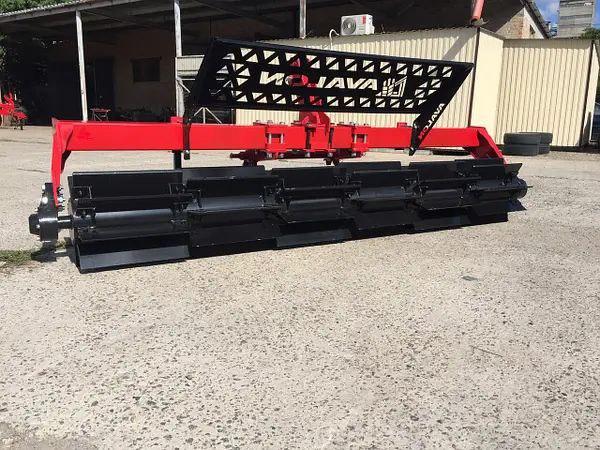

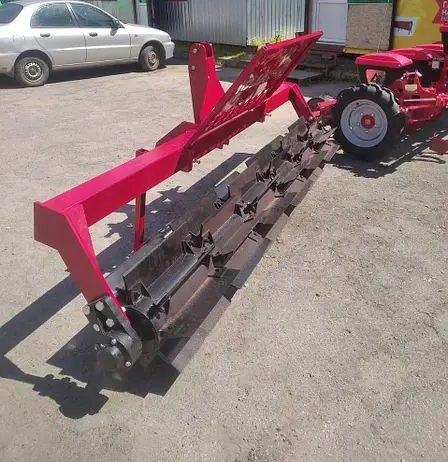

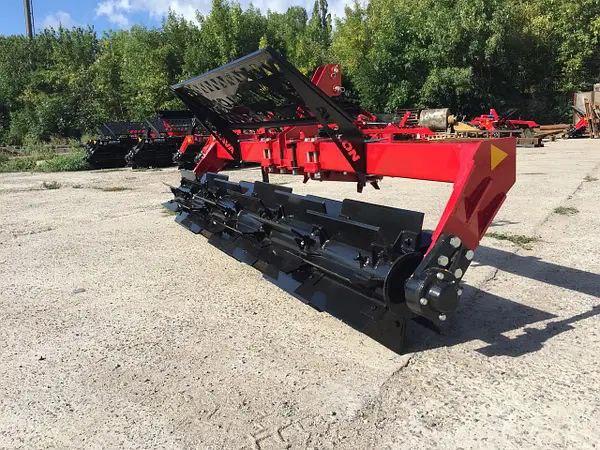

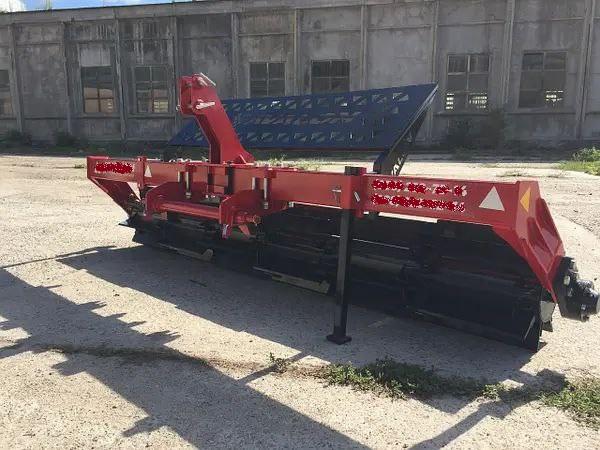

Roller shredder water-filled hinged KR-3, Dnepropetrovsk region.

Designed for grindingsunflower residues,corn, partial soil mulching, surface leveling.
Detains the evaporation of moisture from the soil, restrains the growth of weeds, enriches it with organic matter.
Knives are made of carbon steel, the cutting edge of the knife is thermally hardened with the help of a TVC device, so the metal remains plastic, does not break and does not crack, and the cutting edge remains sharp and the service life of the knife increases. Water-filled drum.
Spherical roller bearing 22309 double-row with a bronze bracket.
Fastening the body to the frame with 4 bolts of strength 8.8

The working width is 3 m.
Unit type - mounted
Productivity, - ha/h - 8(//tractor-service.com)
Working speed, km/h 12-18
Transport speed, no more, km/h 20
The diameter of the drum is 460 mm
The knives are made of carbon steel
Overall dimensions
Height - 1500 mm
Width - 3000 mm
Length - 500 mm
Weight - 550 kg without water
Power requirementtractor - 40 hp
