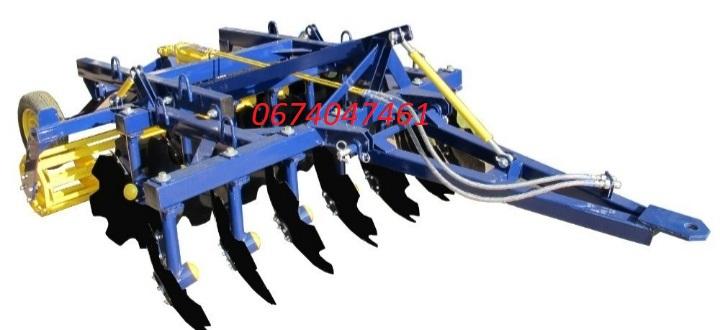

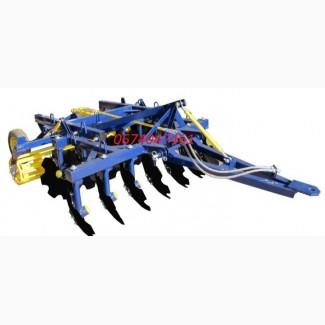

Disk trailed unit, Disc plow AGD -2.5 n, Poltava region.

TRAILED AGD unit intended for processing compacted soils of various mechanicalcomposition with grinding and introduction of plant residues into the soil under the following conditions:
- The hardness of the soil is not more than 3.5 MPa,
- Soil moisture is not more than 27%,
- The height of harvest and plant residues is up to 30 cm.
The unit is designed to work with MTZ-80/82 tractors; MTZ-100/102. The unit can be operated in all soil and climatic zones of UKRAINE.
Designation when ordering: "Disk unit universal AGD-2, 5H TU U 29.3-30221510-004-2010"
Additional information: Type: trailed
The width of the grip is constructive, m: 2.5
Fuel consumption, l/ha: 7.2 - 8.5
Productivity per hour of prime time, ha: 1.8 - 2.2(//tractor-service.com)
Depth of tillage, cm: 8 - 18
Transport speed, km / h, no more than: 20
Weight of the product (without ZIP), kg: 1050
Length, mm, no more than: 4800
Width, mm, no more than: 2800
Height, mm not more than: 1000
Ground clearance, mm, not less than: 300
Service personnel, person (tractor operator): 1
Tractor, which is compatible with: MTZ-80/82/892,
Guaranteed resource, ha: 1240
