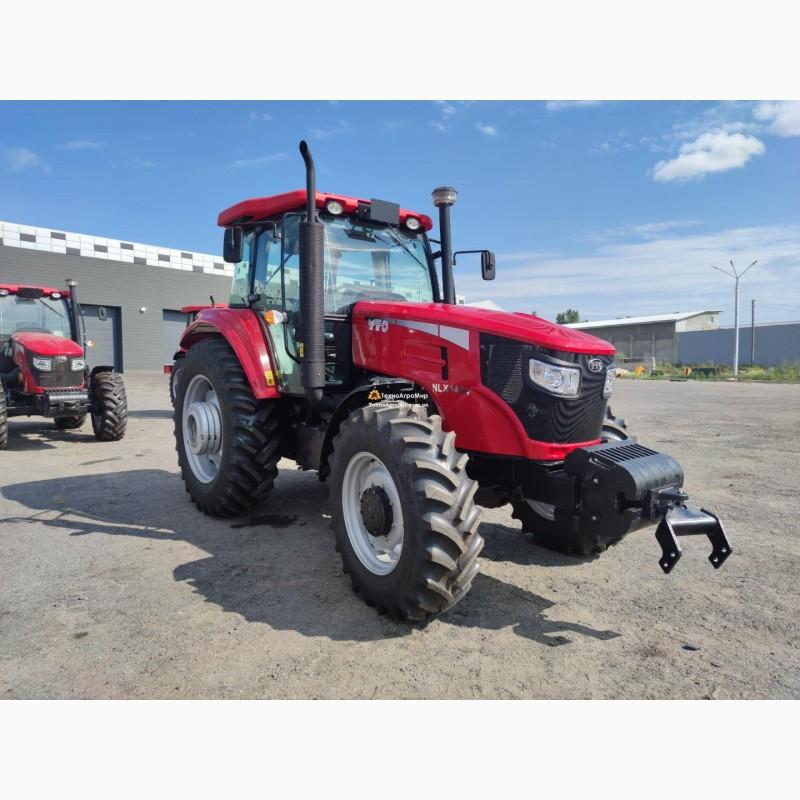

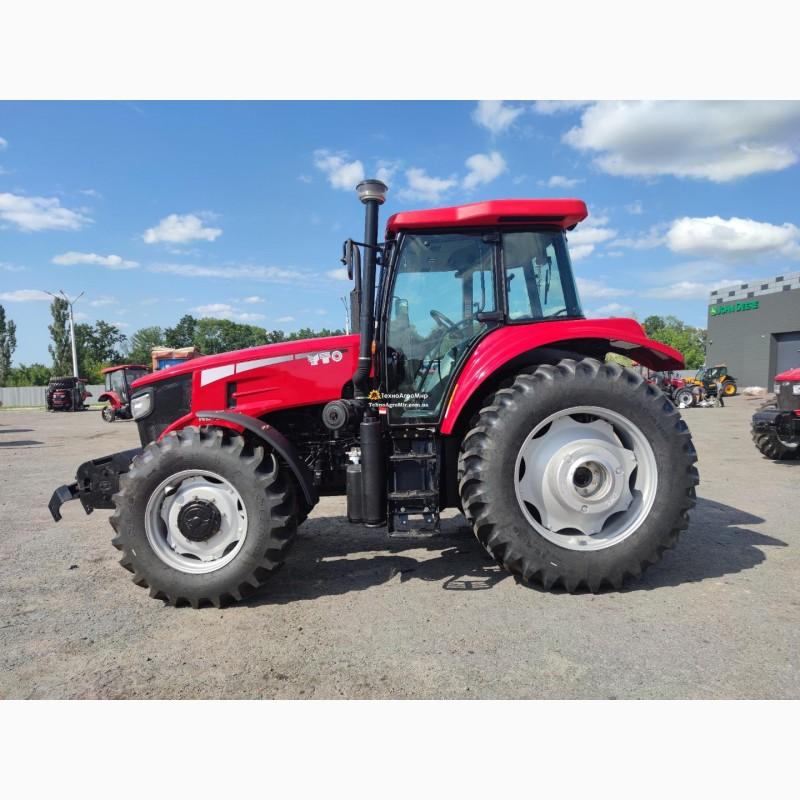

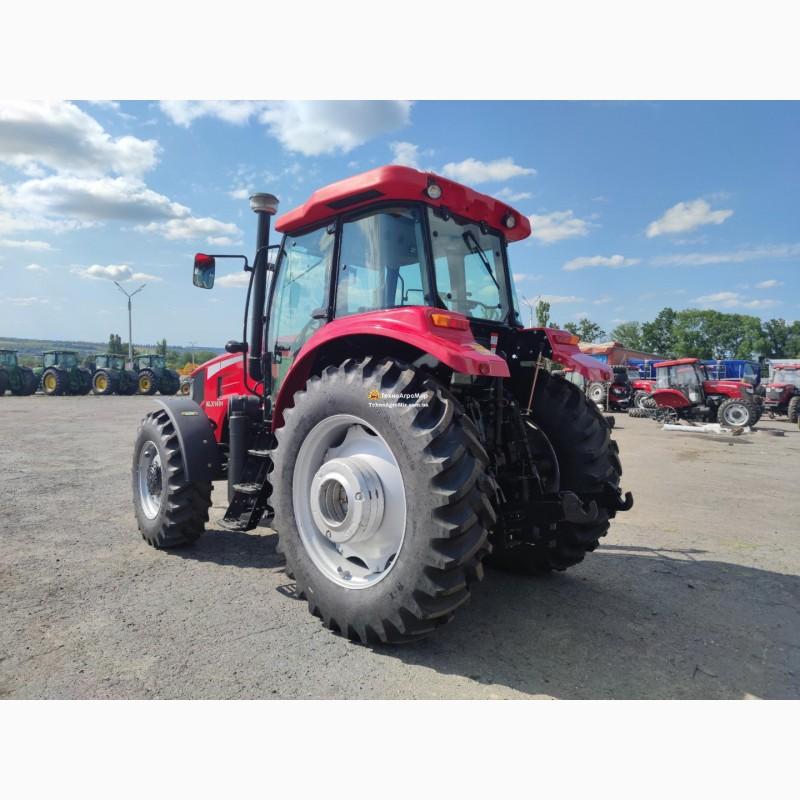

Tractor YTO - 1404 (2022), Kyiv region.

The defining characteristics of the YTO NLX 1404 tractor are its reliability, economy and versatility. These tractors have a capacity of 140 hp. equipped with a double-action clutch from the leading manufacturer in Germany - LUK. The engine, manufactured under PERKINS (Great Britain) licenses and technologies, has a large torque, is capable of overloading, and has a low specific fuel consumption. The gearbox, manufactured using Italian technologies (FIAT), has a rational design and a high efficiency ratio.

Model: YTO - NLX 1404

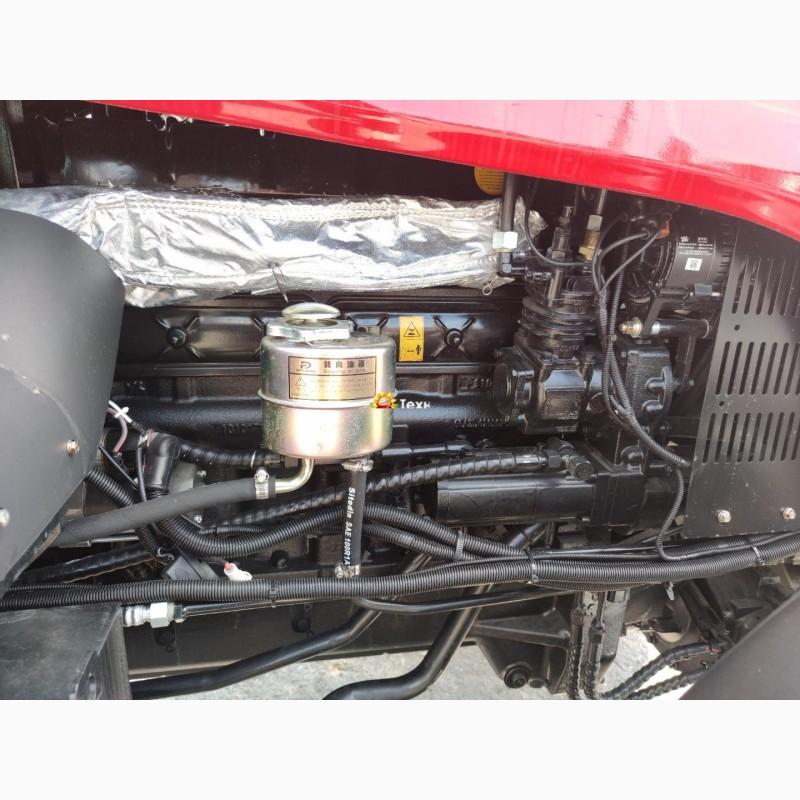

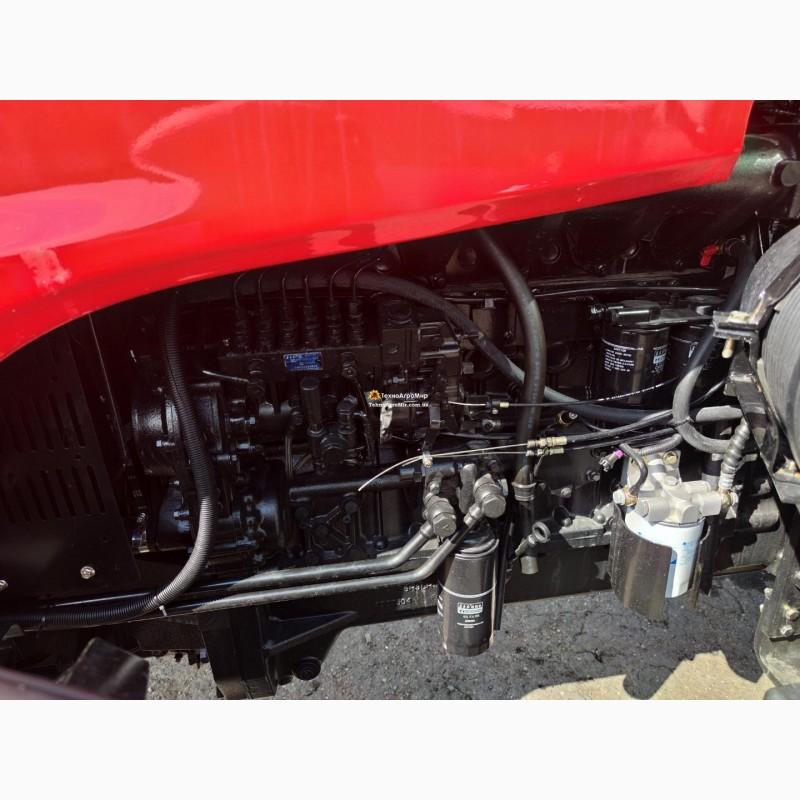

Engine: Diesel, 6-cylinder with water cooling and preheating
Working volume, l: 7.7
Power, kW (hp): 102.9 (140 )
Nominal revolutions, rpm: 2300
Max. torque, H476 (at 1650 rpm)
Torque reserve, %: 20-25
Specific fuel consumption, g/(kWh): 215 +/-5

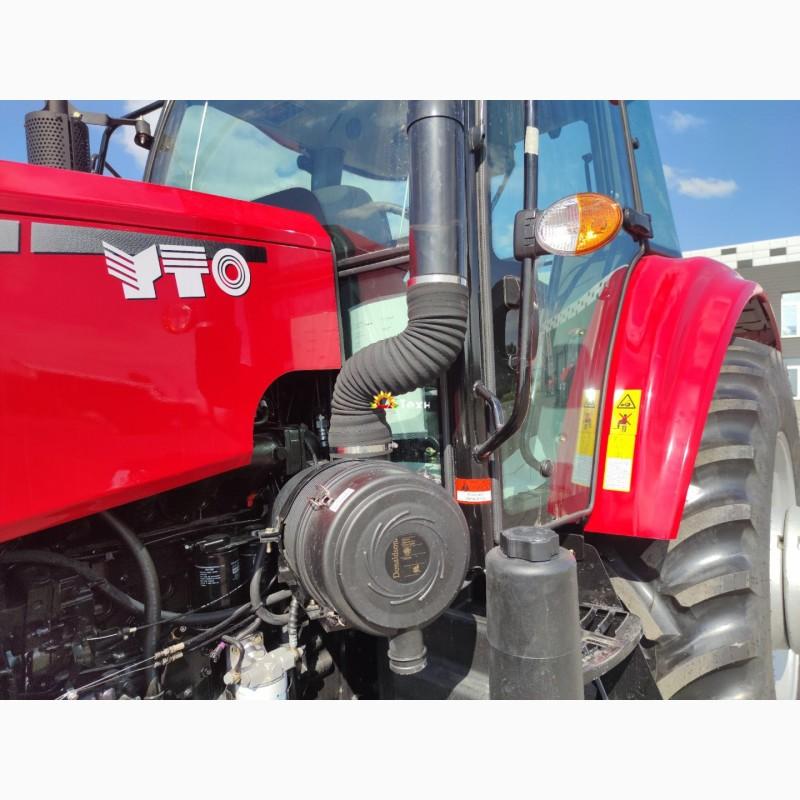

Air filter: Two-stage, with paper elements and clogging alarm from Donaldson
Fuel filtration system: Filter-separator for poor quality fuel + 2 fine filters
Clutch: LUK (Germany), single disc, double action, diameter 12”
KP: type/ manufacturer Mechanical / YTO (FIAT AGRI license)
KP: number of forward/reverse gears 12 forward / 4 reverse (with synchronizers)
Forward/backward speed range, km/h: 2.3-30.6 / 5.0-14.3

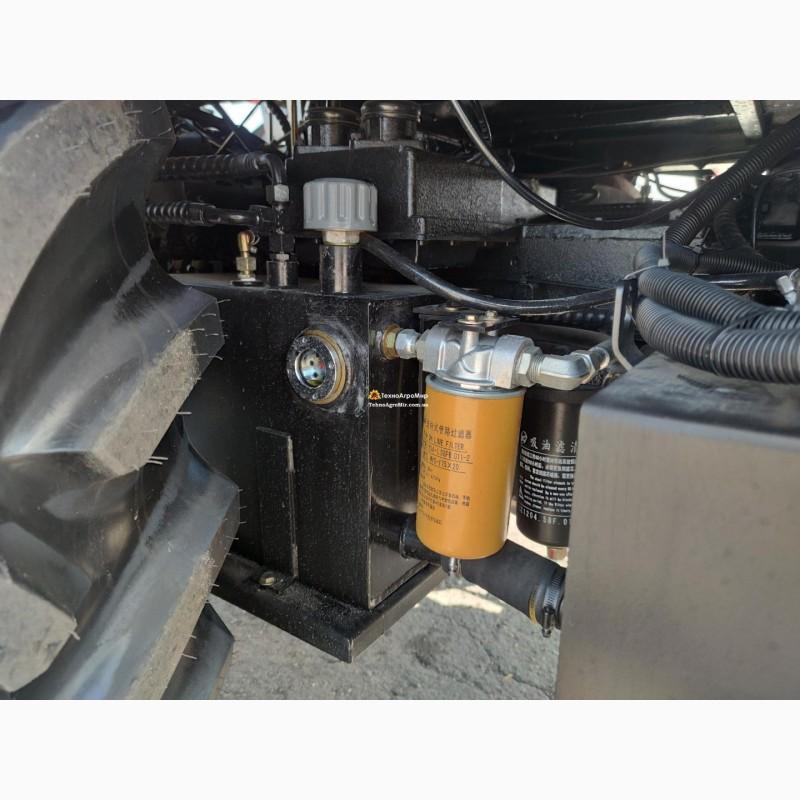

Hydraulic system: typeOpen type / separate
Hydraulic system: typepump/drive Gear pump / with engine drive
Hydraulic system: hydraulic pump performance, l/min: 66.25
Hydraulic system: number of hydraulic outlets 3 pairs (in item 1 with flow regulation)
GDP: rear type, independent with synchronizer
GDP: revolutions, rpm 540 (6 slots)/1000 (8 slots)(//tractor-service.com)
GDP: power, ksne less: 83.7

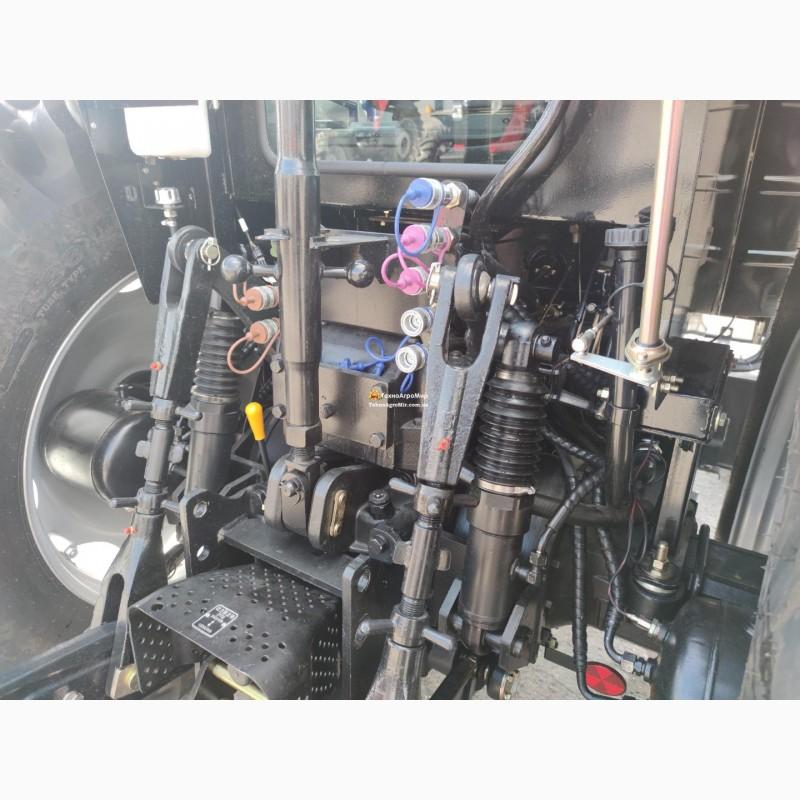

Attachment: category/number of hydraulic cylinders Category II / 1 central + 2 additional hydraulic cylinders
Lifting capacity, kg: 4500

Functions of the hinge: Power adjustment, positional adjustment, floating position.
Differential lock: Hydraulic
Turning on the front axle: Mechanical

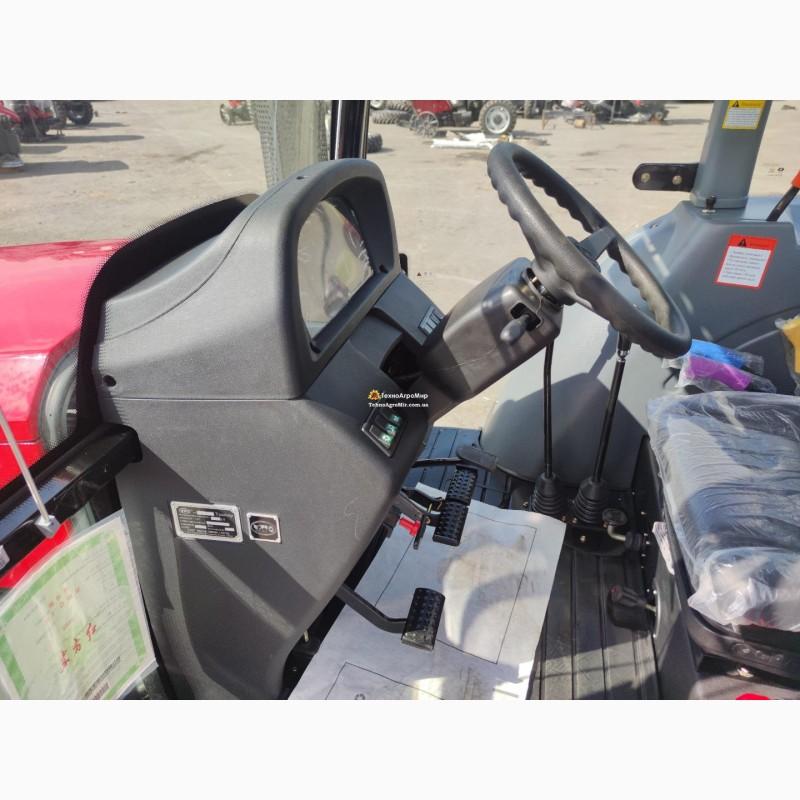

Steering: Hydraulic, independent
Size of front/rear tires 14.9-26 / 18.4-38
Track adjustment: front/rear, mm1822-2153 / 1662-2262
Turning radius, m: 7
Working brakes: Disc, in an oil bath, with a hydraulic drive
Parking brake: Mechanical
Fuel tank capacity, l: 220
Basic dimensions: (LxWxH), mm: 4770x2330x2960
Wheelbase, mm: 2688
Clearance, mm: 470
Operating weight, kg: 4757
Weight with counterweights, kg: 6165
Weight distribution: front/rear axle, %: 46%/54%
Including counterweight weight, kg: 10x50 front, 6x50 rear wheels

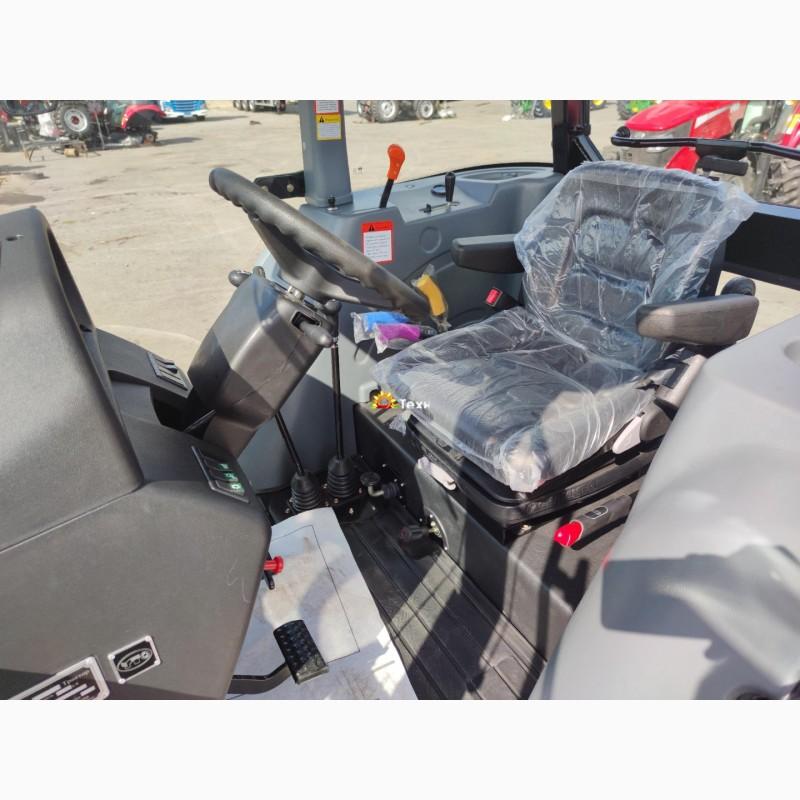

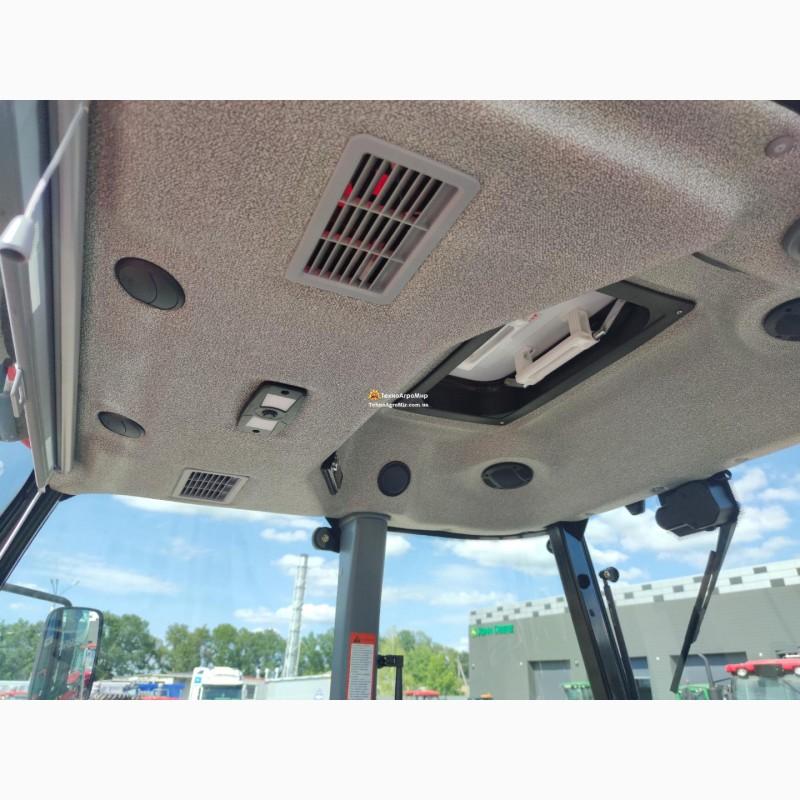

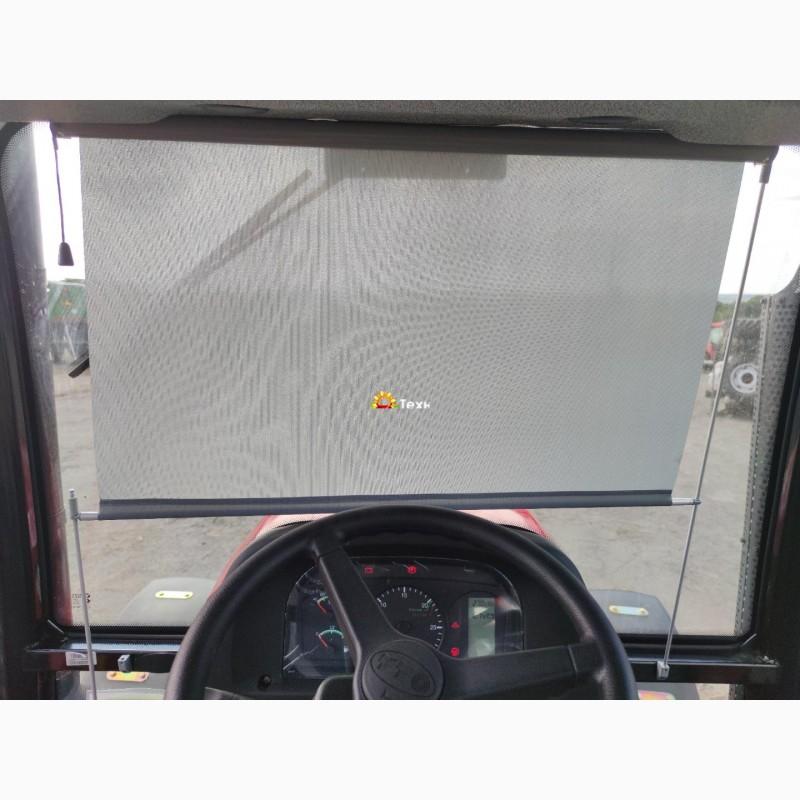

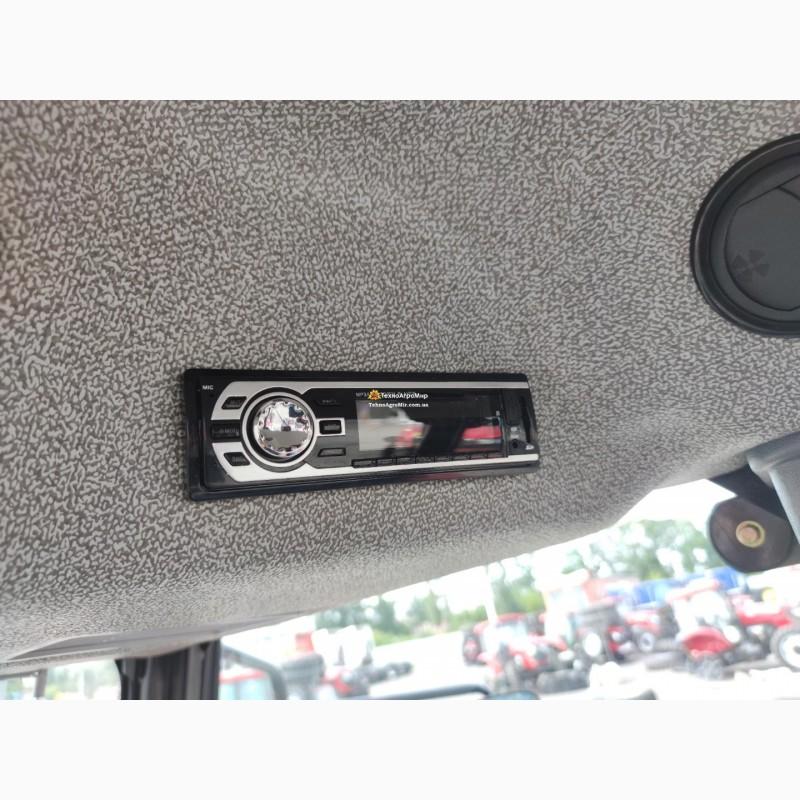

Package of additional cabin equipment (included in the price) Air conditioner, cabin filters, heater, radio with MP3 player, 12V socket, sun shade, comfortable CRAMMER seat (with seat belt), additional seat, fire extinguisher bracket, thick solid noise insulation mat, plastic interior trim, tool and accessory box; single-circuit pneumatic trailer brake system with a compressor; drawbar and towing device for the trailer, lever for external control of the hinge.
