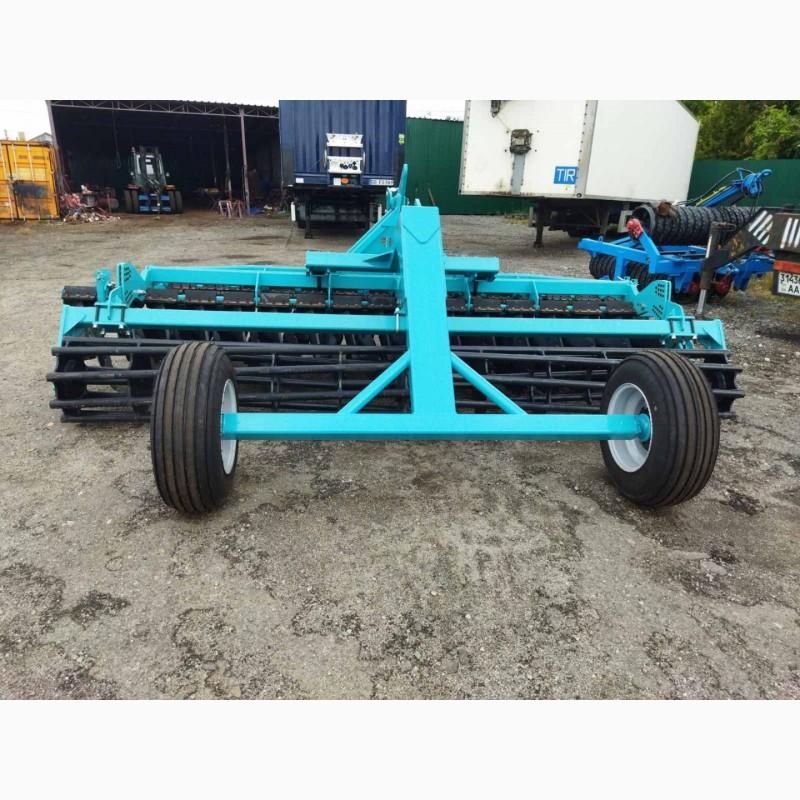

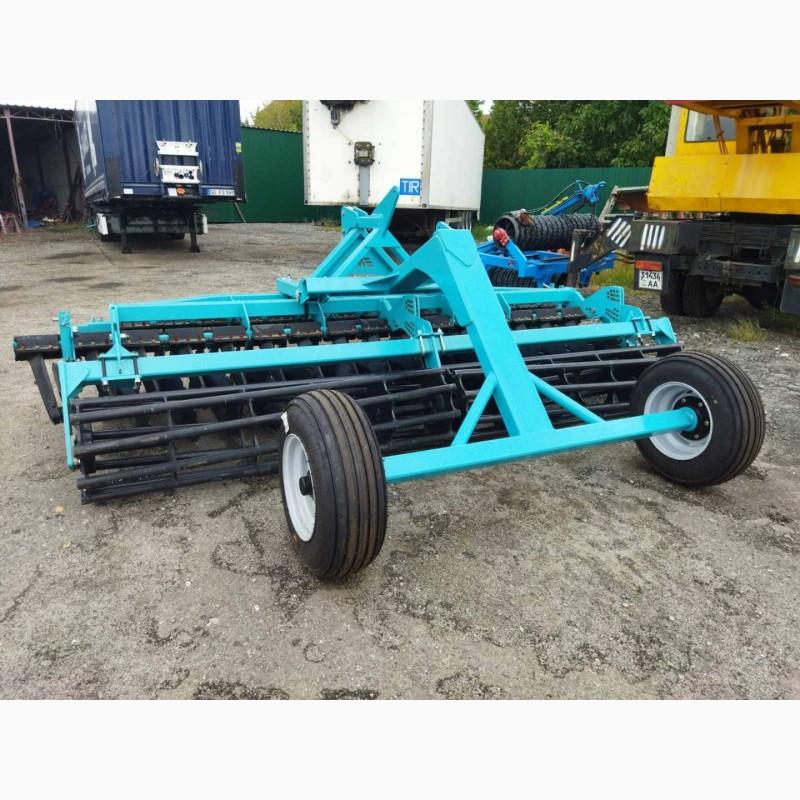

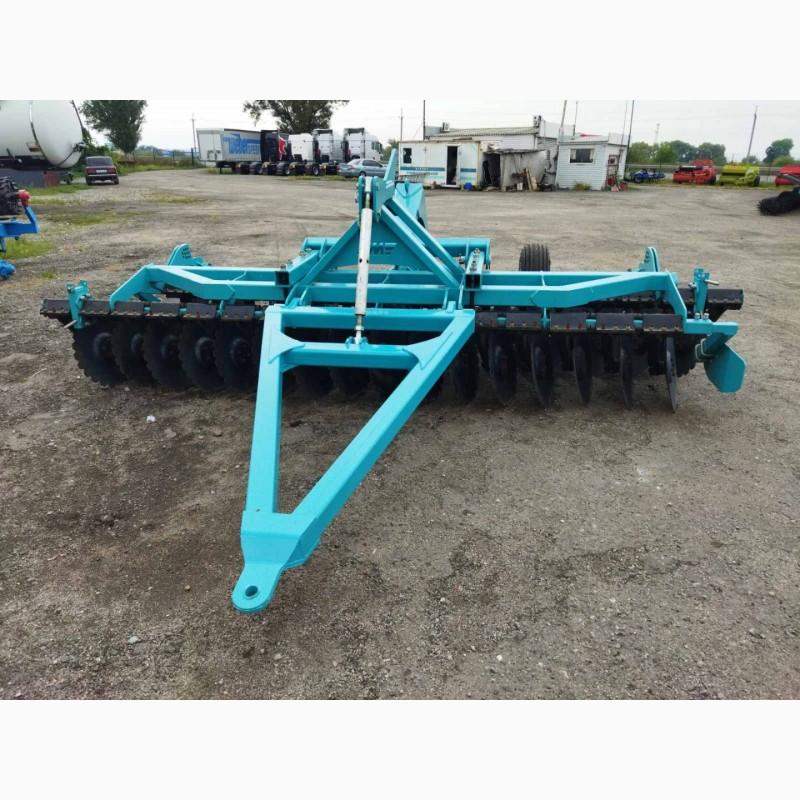

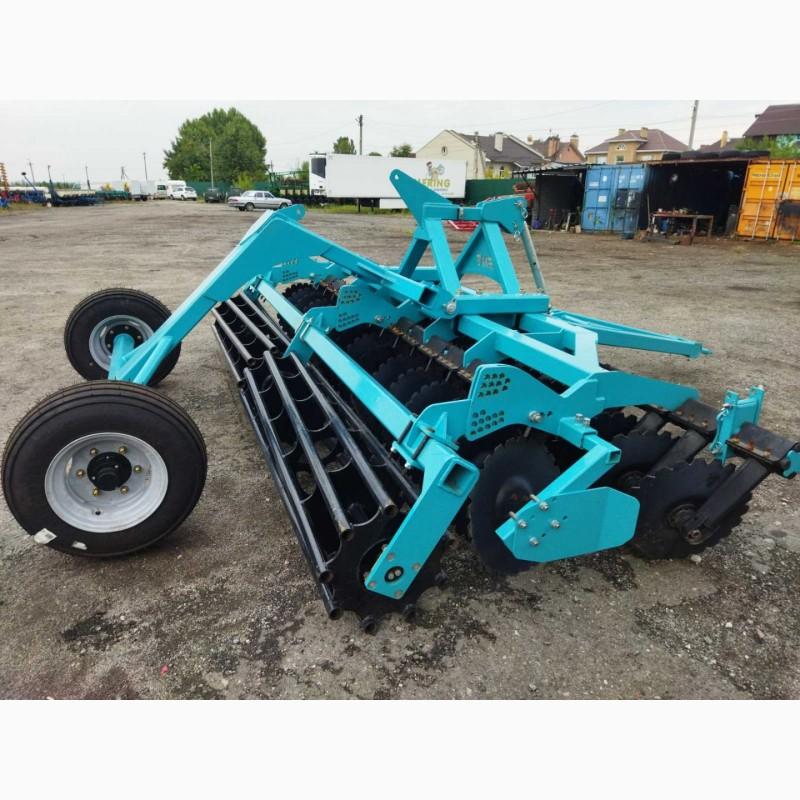

For sale NDL trailed disc harrow, Dnepropetrovsk region.

Disk NDL trailed harrow (disk peeler , discator) with a working width of 3 and 4 meters. The trailed disk harrow NDL is intended for the main and pre-sowing soil treatment after plowing, husking stubble, crushing plant residues and wrapping them in the soil, as well as for caring for couples Tel. 0976938955, 0660244393, website https://agrompk.com.ua/
The working body of the NDL disc harrow consists of a rigid rack, which is attached to the frame on rubber dampers, which provides protection against overloads and field copying. Hubs of working disks of closed type with maintenance-free double-row ball bearing. Wheels of Italian production OFAS from boron-containing steel.
Regulation of the depth of tillage with the NDL harrow is carried out at the expense of the rolling roller. NDL disk harrow can be used both in mounted and trailed versions.

Technical characteristics of the disc harrow NDL-3 NDL-4 Trailed type
Processing width 3m/4m.
Tractor power from 80 hp. /from 130 hp.
Working speed 9-15 km/h
Transport speed 20 km/h(//tractor-service.com)
Productivity - up to 4.5 ha/hour to 6 ha/hour
The diameter of the disks is 560 mm.
Disc material is steel 30MnB5.
The number of disks is 24 pcs./32 pcs.
Distance betweendisks –250 mm.
The processing depth is 5-15 cm.
Bearings in NDL-4:
in the disc hubs - 357234.
in the nodes of rotation of the roller - UCF 210.
Weight 1.0t/ 1.4t.
