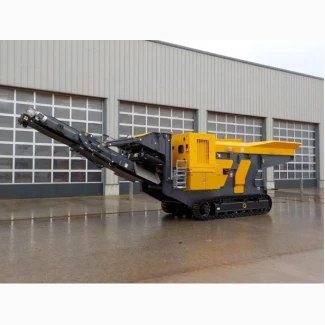

Mobile crusher S750 (30-120 t/h), Kyiv

Mobile crushing plant S 750, Shkokova crusher 30-120 t/h

Technical characteristics:

Mobile crusher on a tracked chassis with a magnetic block for sorting metal.

Jaw Crusher - Inlet 700x500mm with one spacer jaw (28 x 20 inches)

Grooved cheeks 6 tons

Hydraulic wedges with spring rod retainer and reverse.

Drive function

Electric motor 45 kW (60 hp)

V-belt and drive pulley

Vibrating feeder
Electric motors are balanced according to the Customer's parameters.

Vibrating sieve with a small fraction on the main conveyor

Feed sensor

Control from the operator's remote control

Loading hopper – three-sided reinforced structure, Hardox lining.

Conveyor - Double electric drive 1.5 kW (2 pcs.* 2 hp)

HD tape 800 mm wide

Full-length board on the side.

Hydraulically adjustable angle

Extended + folding

The tracks are powered by an electric/hydraulic unit

Power plant -Diesel-electric generator CATERPILLAR (88 kVA)

Dual power supply - motor/mains - cable length up to 50 meters without loss of power.

Magnet - electric drive 1.5 kW (2 hp)

Over-tape magnet above the conveyor.

Stainless steel gutter

Access - service platform and stairs tocrusher entrance

Rear and side access under the crusher

The conveyor is lowered to access the generator set and crusher

Controls:

Electric control panel with buttons with contactors and relays

Remote control

Wireless remote control to stop/start the feeder

Control elements

- Electric control panel with buttons with contactors and relays

Remote control for tracks
(//tractor-service.com)
Wireless remote control for stopping/starting the feeder Power unit - 22 kW, electro-hydraulic (30 hp)

Guides tracks through a solenoid in transport mode

Includes hydraulic features for customization

Hydraulic functions:

- Lifting and lowering the conveyor

- Folding conveyor head

- Adjustable adjustment of the closed side on the jaw crusher

Size options:

Transport: length 9.9 m, width 2.3 m, height 2.6 m

Delivery height: 2.8 m - 3.1 m.

Total weight 19500 kg.

Summary specification of the crusher

Weight: 6000 kg

Rotation speed: 330 rpm.

Entrance: 700 x 500 mm

Adjustment: 2 wedges

Frame:

- Welded flywheel

Diameter: - 900 mm

Power: - 45 kW

Engine mounting: - built-in

CSS range: - 40-100 mm

Plate projection: - 24 mm

Plant capacity – size of fractions/ton per hour

40 mm - 30-40 t/h

50 mm - 45-50 t/h

60 mm - 45-65 t/h

70 mm - 55-75 t/h

80 mm - 70-90 t/h

90 mm - 80-100 t/h

100 mm - 90-120 t/h

Transport requirements:

Comes in a 12m (40ft) High Cube container.

The delivery time is 6-8 weeks.

Warranty: 12 months for the supplied equipment.

Warranty for a CATERPILLAR diesel engine - 24 months.
