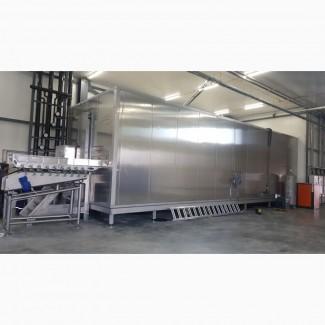

IQF shock freezing tunnel, Kyiv

IQFtunnel of shock freezing. MM™ 600
600 kW of cooling power

Construction
The modular design of the IQF tunnel allows you to mount it in almost any room, as well as outside the production room, under cover, with minimal requirements for the installation site. The body and all the main metal parts of the structure are made of food grade stainless steel. During its stay in the IQF tunnel, the product comes into contact only with high-quality plastic certified for the food industry.

The completely independent design of the tunnel makes it possible to install it in any room without special preparation and a special heated floor.
This design provides full access and the ability to clean and disinfect the floor under the tunnel, which allows compliance with HACCP requirements.

The management system provides for the regulation of all processes taking place in the IQF tunnel to achieve maximum productivity for each product. The built-in memory allows you to save system parameters (recipes) for further work in one click.(//tractor-service.com)

Design features.

1. Conveyor drives outside the IQF tunnel. Moving the actuators outside the tunnel significantly extends their service life, and makes it possible to constantly monitor their condition. In addition, they do not take up space inside, thus using the working area more efficiently.
2. Adjustable air speed in all working zones along the entire length of the conveyor. By regulating the speed of air movement, as well as the accumulation of product in the working areas of the tunnel conveyor, we not only regulate the rate of freezing of the product, but also preserve its attractive appearance for a higher price when sold.
3. The improved product feeding system in the IQF tunnel significantly reduces product sticking, reduces cold loss through the product entry point and icing of the conveyor belt feeding the product inside.
4. Product concentration system. Thanks to the guide system, high air pressure and correctly selected vibration frequency, we concentrate the product evenly along the entire length and width of the IQF tunnel.

The low dehydration of the product and the high performance of the fans allow working for a long time without interruptions for defrosting, which is especially important in the seasonal months.
