With pre-set function Italy Filling module with accurate counter CUBE 70MC F0059400C, Volyn region.

If you want to keep a complete account of the issuance of diesel fuel to vehicles, this column for you.

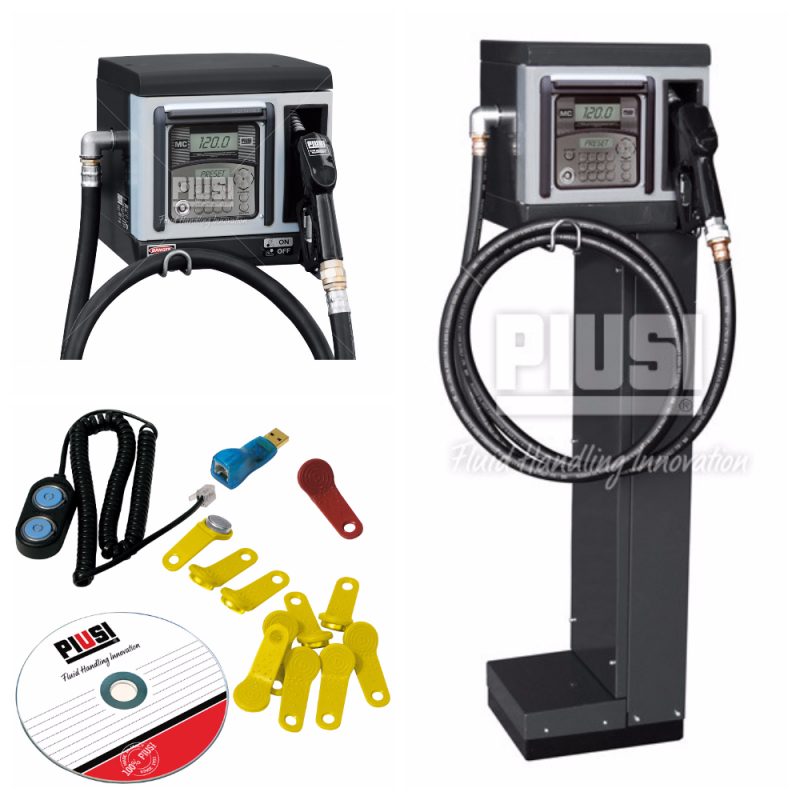

Fuel dispensing module CUBE 70MC – [ F0059400C – 1929] = UAH 85,000 (electronic keys for users are not included in the kit and are purchased separately).

User set - UAH 33,500

1 red manager key [ F12496000 -71/2024] = UAH 3200
10 yellow user keys [ F15904000 – 169 ] = UAH 7,600
1 key - reader with USB adapter, key reader Piusi [ F12262010 – 139] = UAH 6200
program SELF SERVICE MANAGEMENT 2018 – USB [ F00773010 – 378] = 16500 UAH
Additionally, a set of 10 yellow user keys – [ F15904000 – 169 ] = UAH 7,600

Pedestal (option) (F1270800C – 293) – UAH 13,000

Separately 1 red manager key [ F12496000 -71 ] = UAH 3100

PW-LAN ( KIT PW-LAN SELF SERVICE DESK, F12710050 – 331) = 14500 UAH

PW-LAN, PW-WiFi and PWStation-WiFi are new solutions that allow you to connect Piusi devices to a local (LAN) or wireless (WiFi) network.
Piusi devices are identified by IP addresses that can be connected to from the enterprise network.

Technical characteristics:
- Productivity 70 l/min
-Accuracy of fuel volume measurement ±0.5%
-In the memory of the electronic unit, information about the last 200 refueling operations is stored.
- Memorization of the date and time of the refueling operation
- It is possible to store the vehicle registration number and odometer data.
– Power supply: 220 Volts

– – Working time: unlimited

Description of the complete set

Pump 220V 75l/min for diesel fuel, PANTHER 72, Piusi
Connection: 1″
Filter: None
Gun: Automatic
The maximum current is 4.2 A
Number of users: 50 users(//tractor-service.com)
PC: Connecting to a computer
Dimensions: 400x400x460
Weight 25 kg
Power consumption 900 W
Manufacturer: PIUSI (Italy)

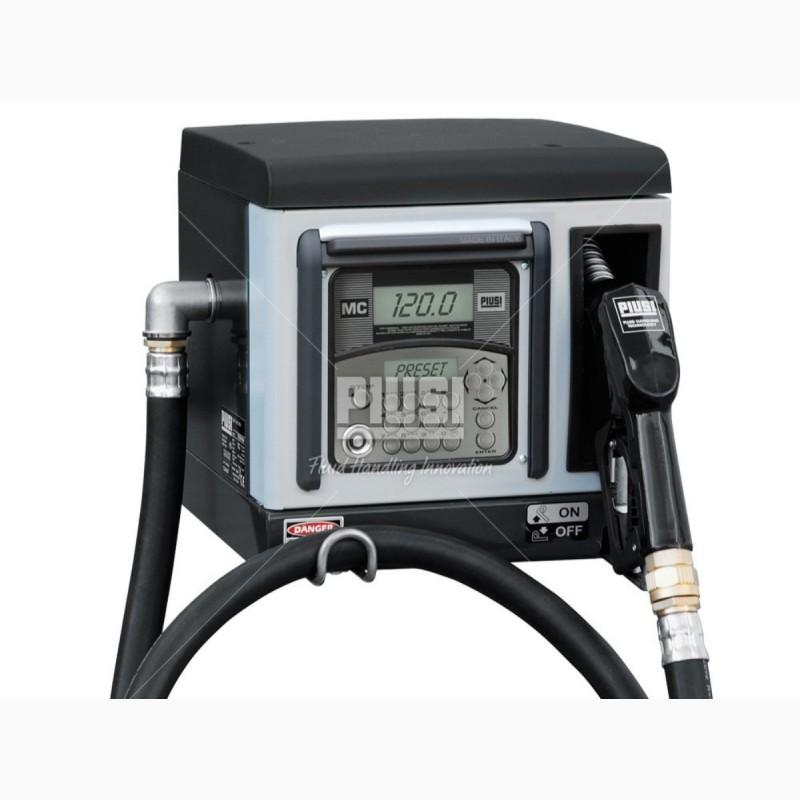

The Cube 70MC mini-fueling complex is designed for dispensing and accounting for fuel without an operator.

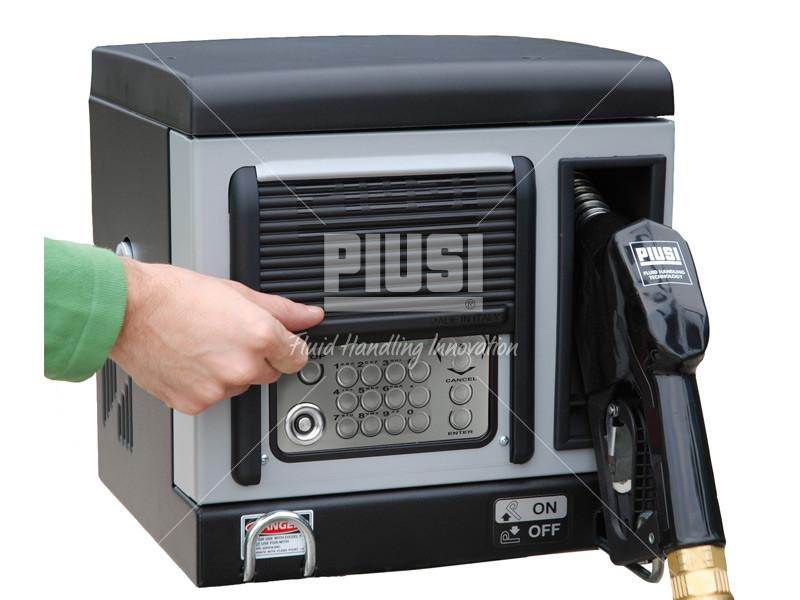

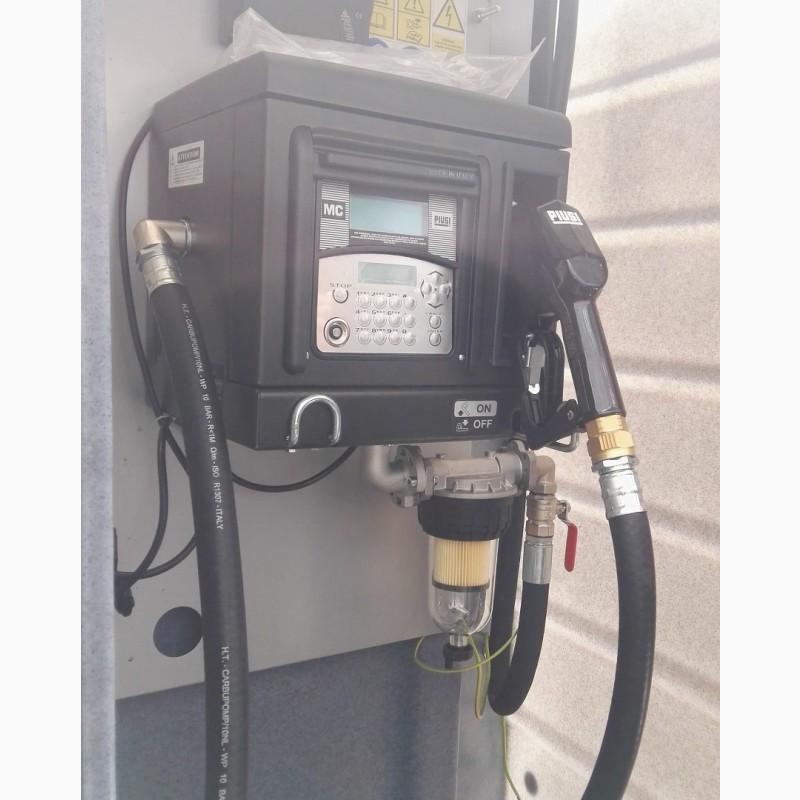

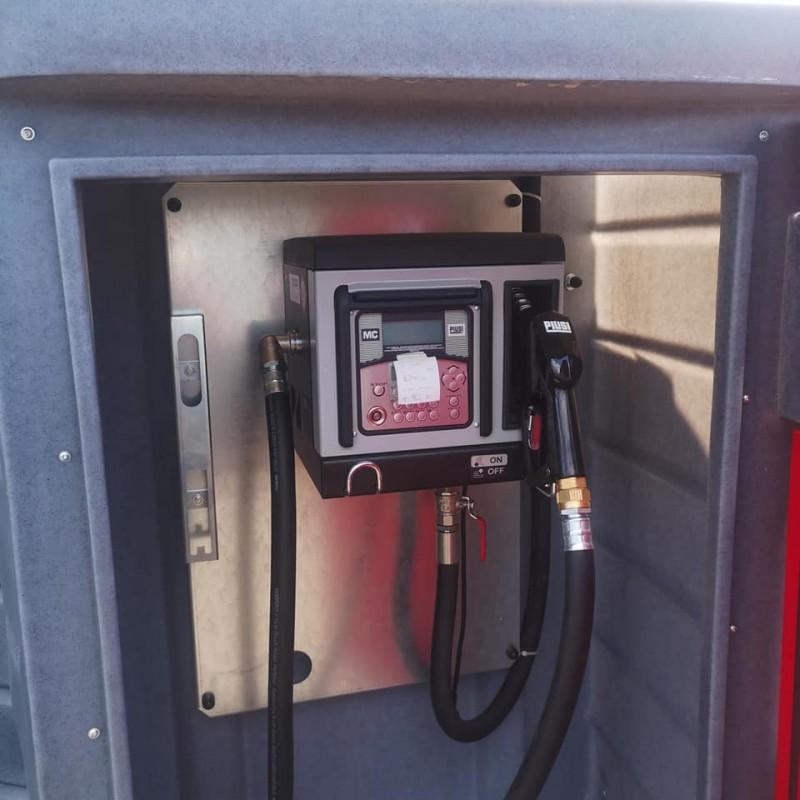

The installation is mounted on the wall, users are issued with personal electronic keys. To activate the column, it is enough to attach the tablet key to the reading device on the display. After that, access to the device opens.

A pump, an electronic unit with a display and a mounting socket for a fuel dispensing valve are placed in a compact housing.

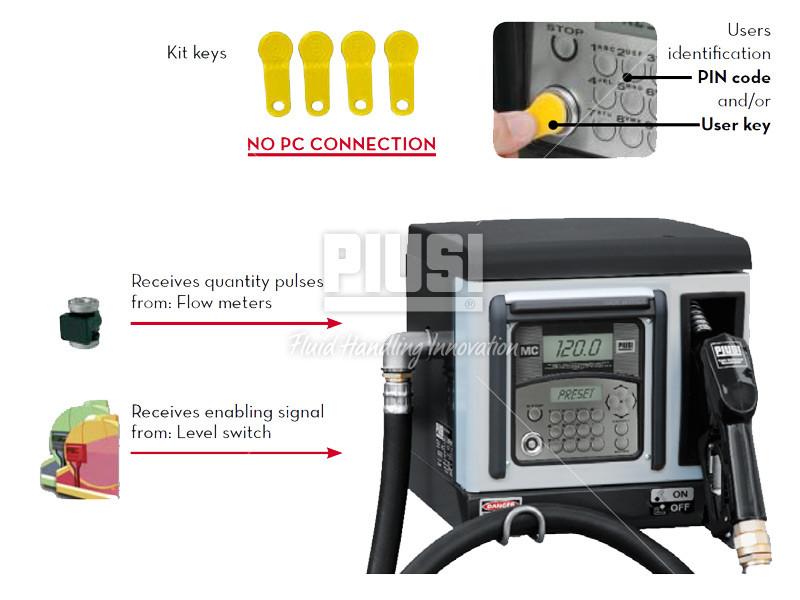

The electronic unit of the column allows you to control up to 50 users (users are admitted to the TRC using a magnetic key or a set of a personal code).

Supply set

– Metal housing made of sheet steel, protected from corrosion and painted, ready to install.
– Sliding, single-phase, self-ventilated electric motor Panther 72 (IP 55) with protection against overheating, high performance of 70 l/min and built-in bypass valve "Bypass", mounted on anti-vibration holders.
– Automatic fuel dispensing faucet with rotary coupling and fuel dispensing hose 4 m.
– Built-in electronic flow meter and electronic block with interface for multi-user control.
– A set of individual magnetic keys in the amount of 11 pcs (10 user keys and 1 administrator key.)
–Disk with PC software.
– USB cable for reading information from an autonomous fuel dispenser on a PC
– Electric cable – 2m

Specialized software allows you to transfer information from the column to a personal computer. Data recorded on the column are exported to a PC using a cable or a special master key.

In addition to transferring data to a computer, it is possible to print them out for each vacation and for the amount of fuel dispensed for each user.

SOFTWARE SELF SERVICE MANAGEMENT 2.0

Allows from a personal computer:

1 - manage equipment: monitor the working status of each device connected directly to a LAN or WiFi network in real time;
2 - monitor the tanks: you can track the amount of liquid fuel in each tank in real time;
3 - control users: complete data about the user, the possibility of limiting access to fuel dispensing;
4 – drive vehicles: alarm signal at typical consumption, improved reporting;
5 – distribute reports: based on such parameters, kakbak, environment type, driver, vehicle or category;
6 – Toolbar. Basic data is collected on this page.
