Pump KO-503 vacuum pump of a sewer, Kyiv

The KO-503 vacuum pump is installed as a pump on a sewer, which is used to pump out cesspools for transporting water and for other purposes in communal households.

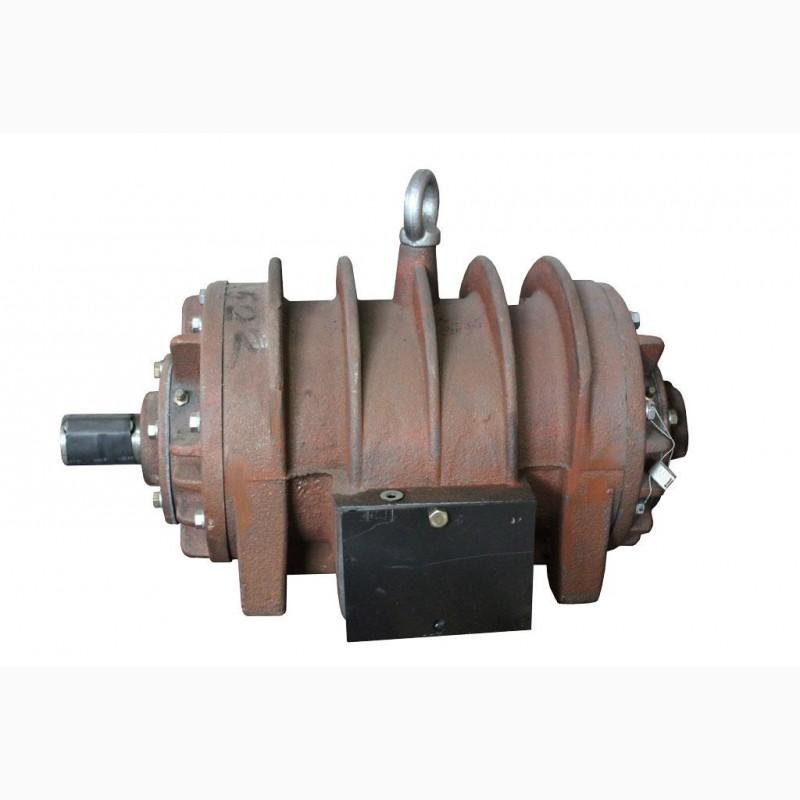

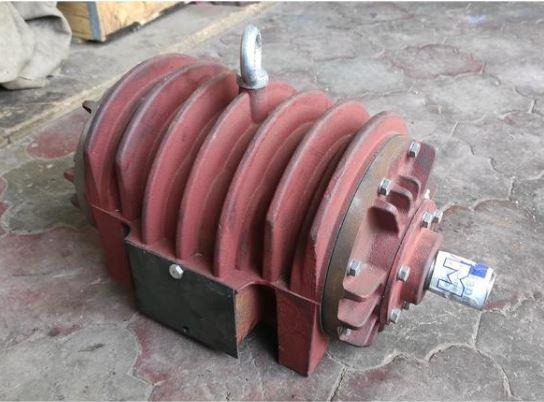

Structurally, the KO-503 vacuum pump is a casting of a cast iron body with a machined cavity of a cylindrical shape in which the shaft or rotor of thepump KO-503 rotates with six slots.
В эти прорези установлены pump vanes KO-503 are installed in these slots, which is the textolite plates of the KO-503 pump, made according to a certain technology that allows them to be resistant to friction and destruction forces.(//tractor-service.com)
When the shaft of the KO-503 pump rotates under the action of centrifugal force, the vane comes out of the groove, thus creating a space between the two vanes and the KO-503 pump body. As it rotates, a portion of the air moves from the suction nozzle to the pressure nozzle. What creates a vacuum in the area of the suction pipe, that is, a vacuum that is used when pumping water and sewage into a barrel from a cesspool under the action of atmospheric pressure, which moves water into the vacuum zone, that is, into the cavity of the sewer barrel.

Buy a pump KO-503 sewer vacuum pump You can contact our managers at the telephone numbers indicated in the advertisement and also We will make the order through our official website.
We try to always keep in stock the vacuum pump KO-503 for the sanitation system based on a gas car, as well as the vacuum pump KO-510 that is used for the sanitation system based on KamAZ MAZ cars and the like.
