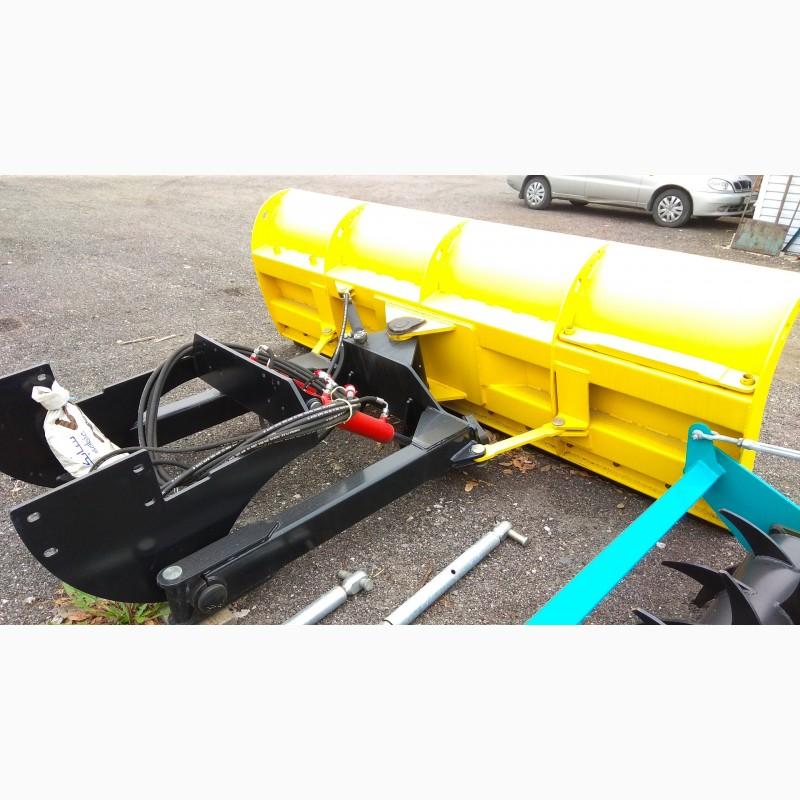

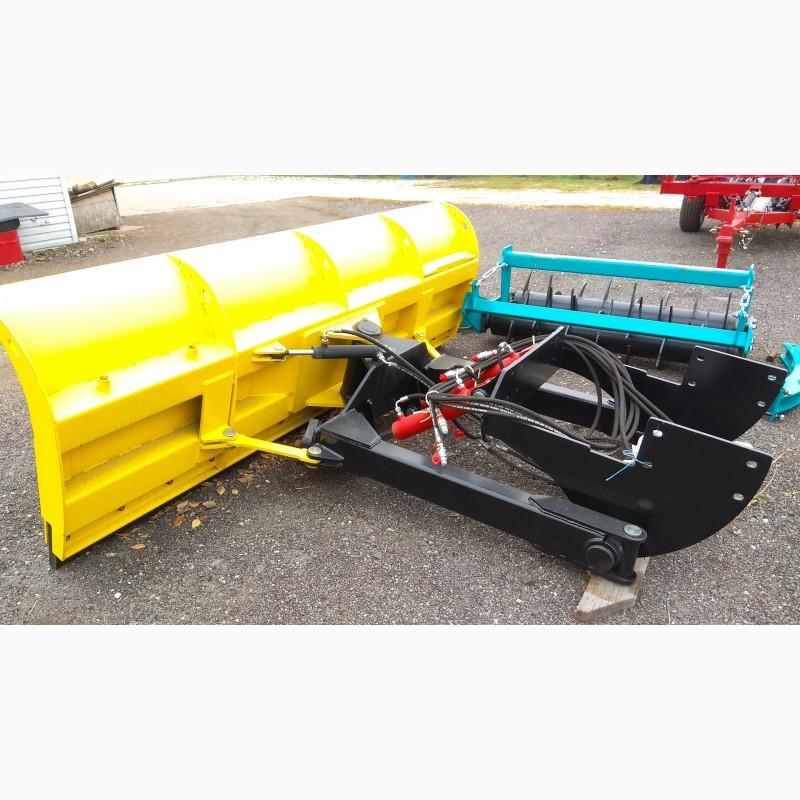

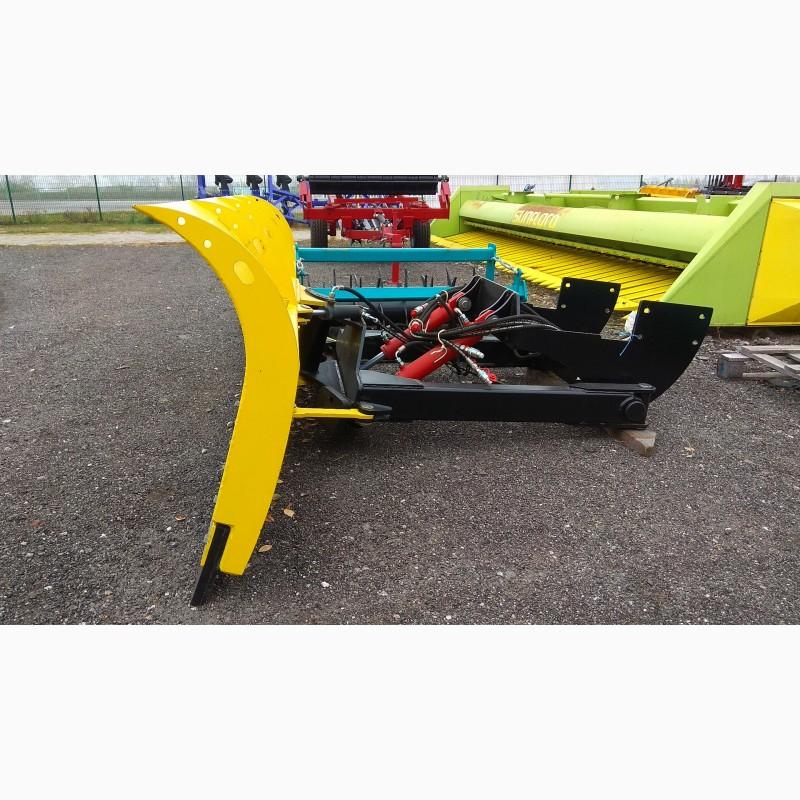

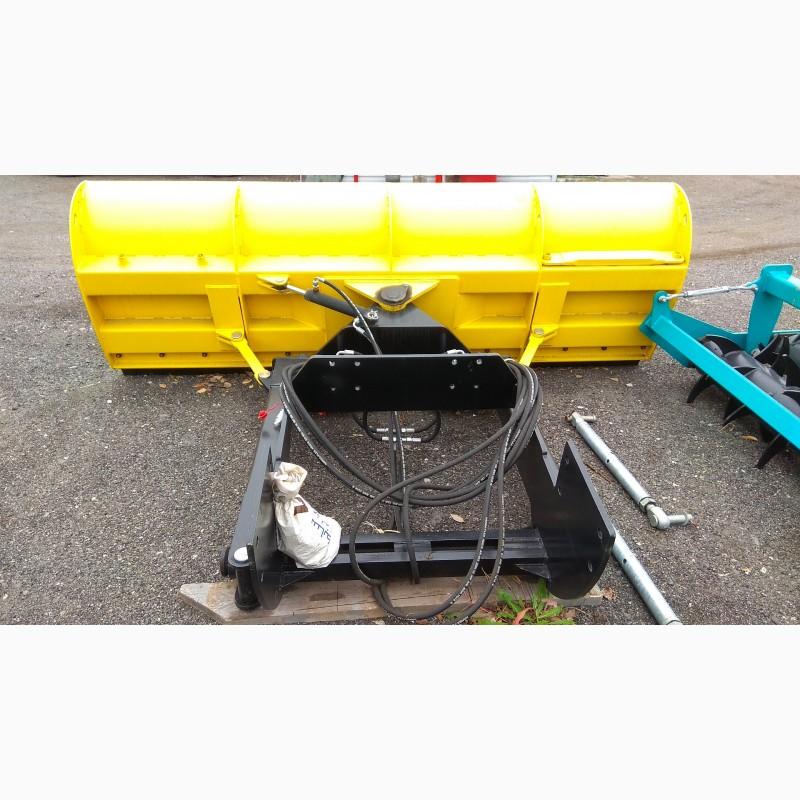

Tractor snow removal dump, Dnepropetrovsk region.

The front rotary dumper is designed for clearing snow from the roadway in winter, in summer - for moving soil, gravel and planning works. Models with a mechanical or hydraulic change of the angle of attack are produced.

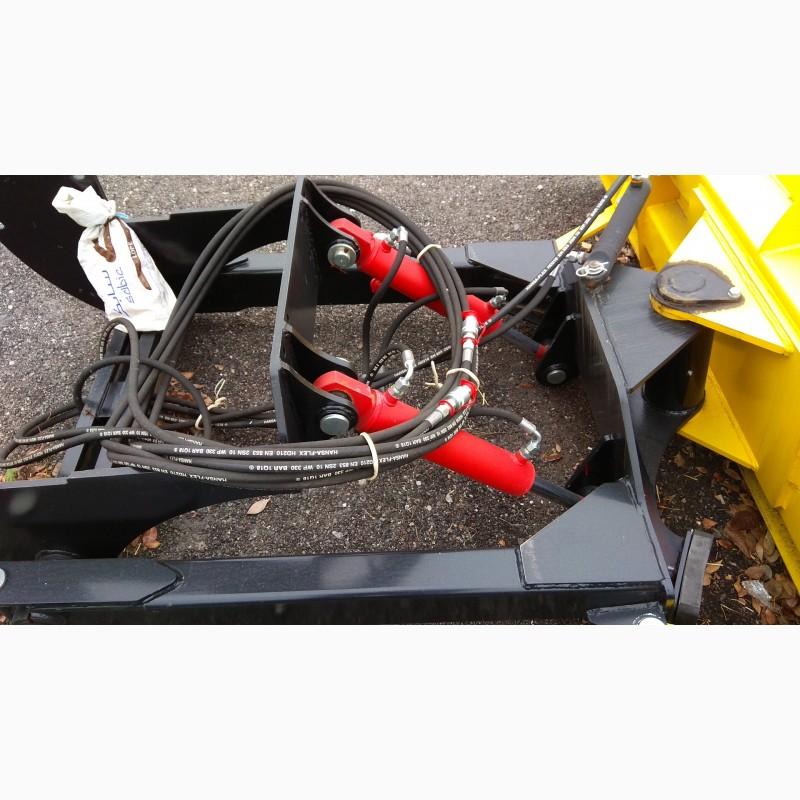

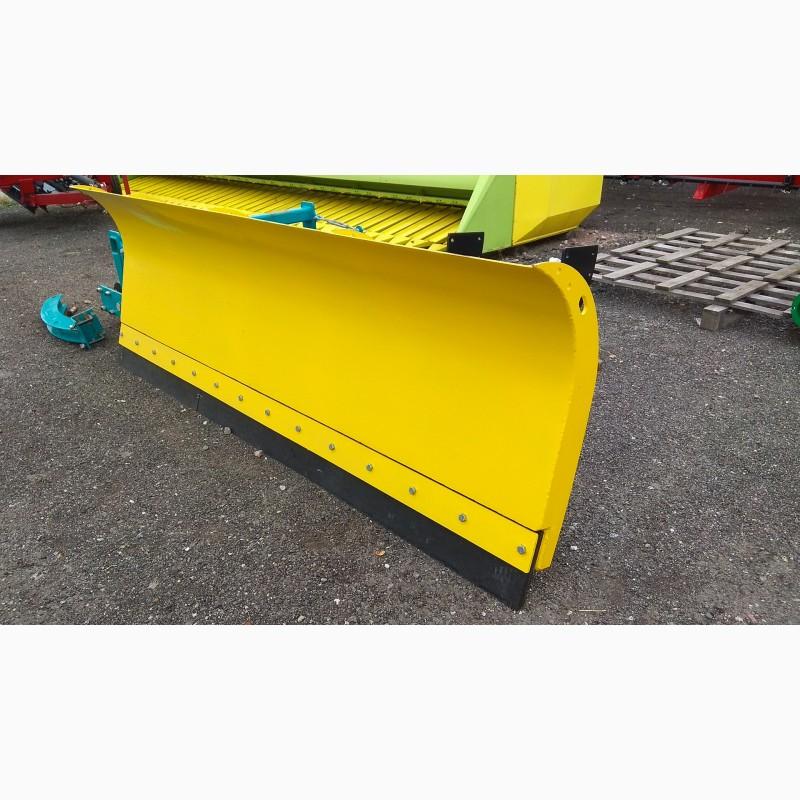

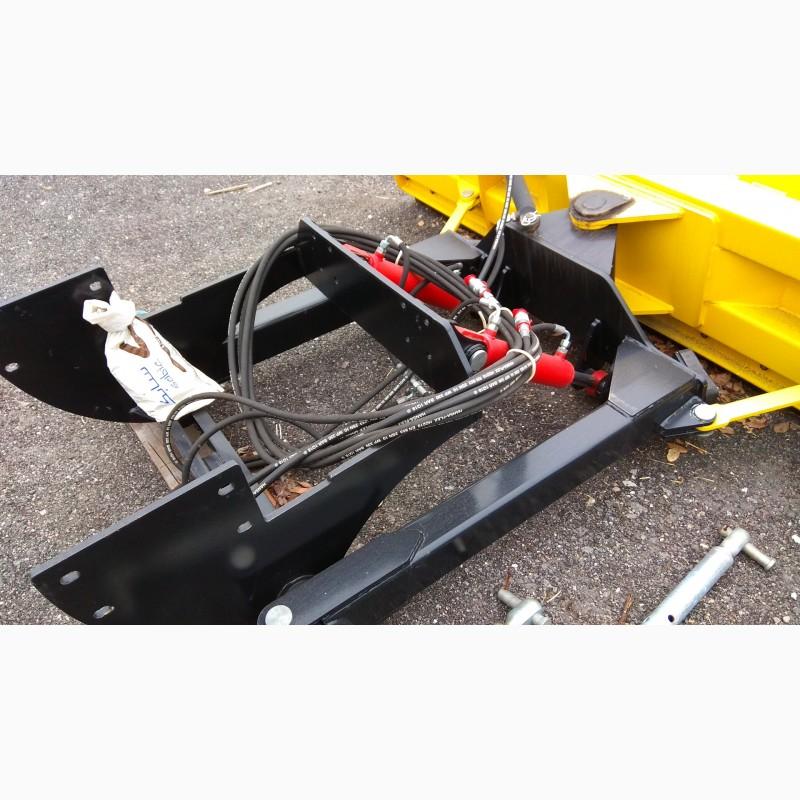

The lifting and lowering of the dump is carried out by two hydraulic cylinders. The angle of attack is changed by one hydraulic cylinder and fixed by a stopper. The width of the clearing strip with a dump truck at a turning angle of 30 degrees. - 2600 mm. The rubber knife is made of high-quality rubber and reinforced with a steel cable 3000x250x40 mm.

If necessary, the dump can be equipped with a steel knife (steel 65G) with a thickness of 12, 16 or 20 mm. When using a steel knife, the dump can be used in the summer for planning soil, rubble and slag.
(//tractor-service.com)
Width - 3 m.
Height - 700 mm.
Working speed - up to 40 km/h
Angle of rotation - 30 degrees.
The thickness of the blade is 5 mm.
Mass - 900 kg.
