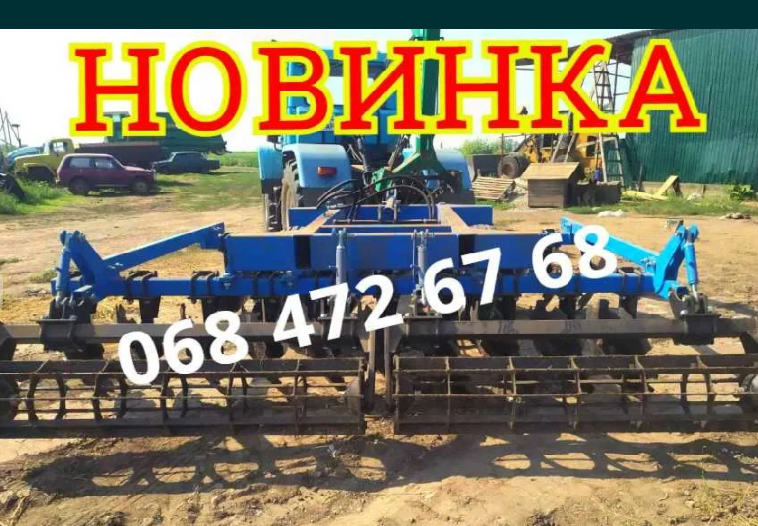

New disc harrow harrow 2.4-2.8-3.1-3.5-3.8-4.2 REINFORCED trailer, Dnipropetrovsk region.

GOS compensation 25% + VAT + factory warranty Newdisk harrow 2.4-2.8-3.1-3.5-3.8-4.2 REINFORCED trailer. Technical characteristics.
Name BDFP-2,4 BDFP-2,8 BDFP-3,1 BDFP-3,5 BDFP-3,8 BDFP-4,2
Type Trailed
Working speed 8-12 km/h
The depth of soil treatment is 8-18 cm.
Height in transport position 1400 mm.
Height in working position 1100 mm.
Length 4940 mm.
Width 2.4 m. 2.8 m. 3.1 m. 3.5 m. 3.8 m. 4.2 m.
Productivity 1.9 Ha/h. 2.2 Ha/h. 2.5 ha/h. 2.8 Ha/h. 3.1 Ha/h. 3.4 Ha/h.
Tractor power 80 HP 100 HP 130 L.S. 160 HP 180 HP 200 HP(//tractor-service.com)
Transport speed, no more than 20 km/h.
Number of working bodies 14 racks 16 racks 18 racks 20 racks 22 racks 24 racks
Number of rinks 1 rink 2 rink
Ground clearance, not less than 300 mm,
Transfer to the transport and working position by the hydraulic wheeled transport mechanism of the disc harrow, connected to the hydraulic system of the tractor.
Weight 1400 kg. 1630 kg. 1850 kg. 2000 kg. 2250 kg. 2400 kg.
The BDFP Trailed Harrow is produced with a working width of 2.4 to 4.2 meters. It is equipped with plate cylindricalrollers with a diameter of 400mm.

Trailed disk harrow BDFP-2.4BDFP-2.4
Trailed disk harrow BDFP-2.4 2
The harrow contains two rows of disks, each of which is located on an individual rack, which is attached to the bar with two L-shaped brackets (diameter 20 mm). This design excludes clogging of the interdisk space. The harrow can be used in all soil and climatic zones where the soil moisture does not exceed 27 percent and the soil hardness does not exceed 3.5 MPa, and it is also not recommended to use this harrow in areas with significant stony inclusions. Due to the use of individual racks in the design, the front harrow can be used at high working speeds - up to 14 km/h.
