Protravitel Portionny PP-5 Lvivogromashproekt, Lvivskaya region.

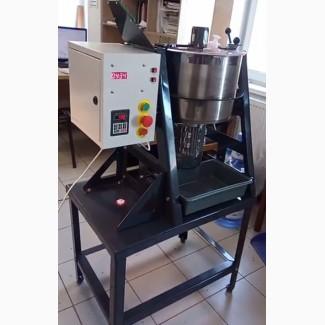

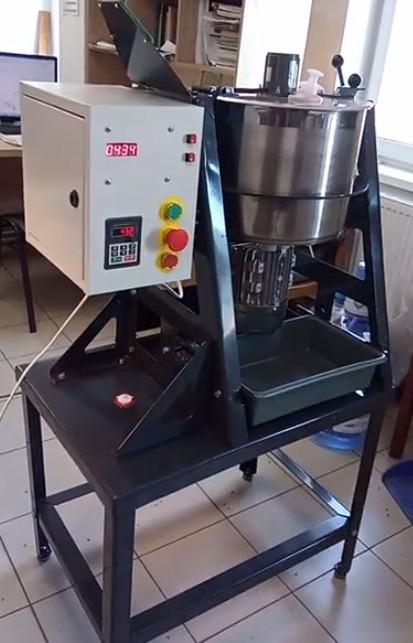

Protravitel is a stationary unit, which includes:

1 -emkost for seeds;
2 - rotor;
3 - rotor drive electric motor;
4 - cover;
5 - atomizer;
6 - the sprayer drive electric motor; 145
7 - шприц дозирующий;
8 - lever;
9 - tray;
10 - plate with supports;
11 - control panel (Figure 4.2);
12 - cable with a plug;
13 - racks
14 - corners;(//tractor-service.com)
15 - corners;
16 - level meter;
17 - adjustable legs;
18 - traffic jam.
Stationary type
The maximum amount of seeds in one serving perwheat (bulk density 780 kg / m2, humidity 14%) kg 5 max
Processing time s 5 - 600
Number of revolutions: 164
- ротора при протравливании об. / Мин 300 - 500
- the rotor when cleaning vol. / Min 1800
- disk atomizer vol. / Min 1250
Mass kg 72
The power supply is from an alternating current electrical network, voltage V 220
Installed power kW 1.2
The height of loading the seeds into the container mm 1250
Seed unloading height mm 700
Overall dimensions, not more than (LxWxH), mm 850x550x1400
