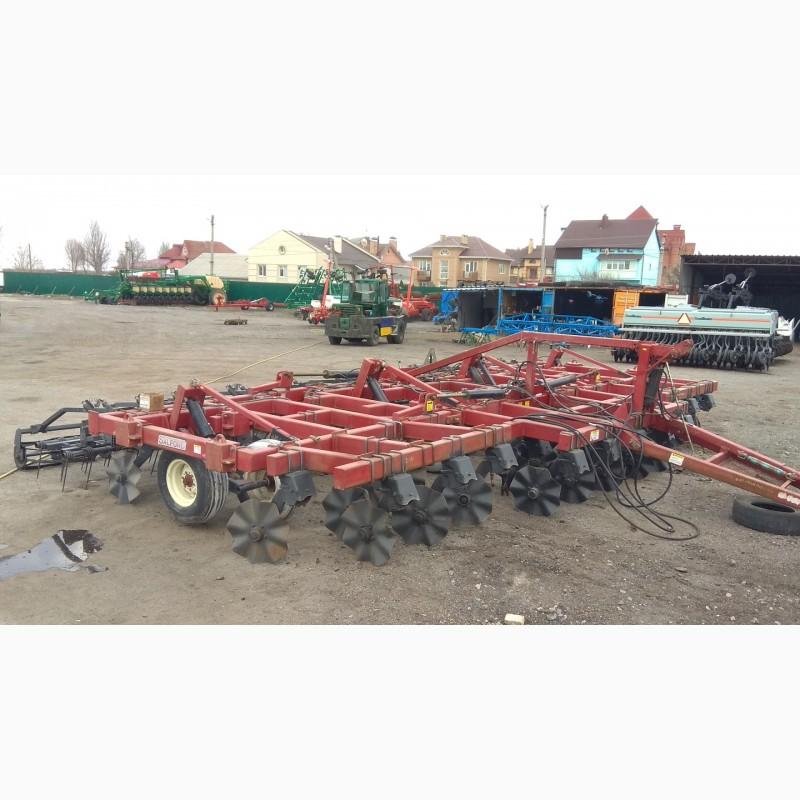

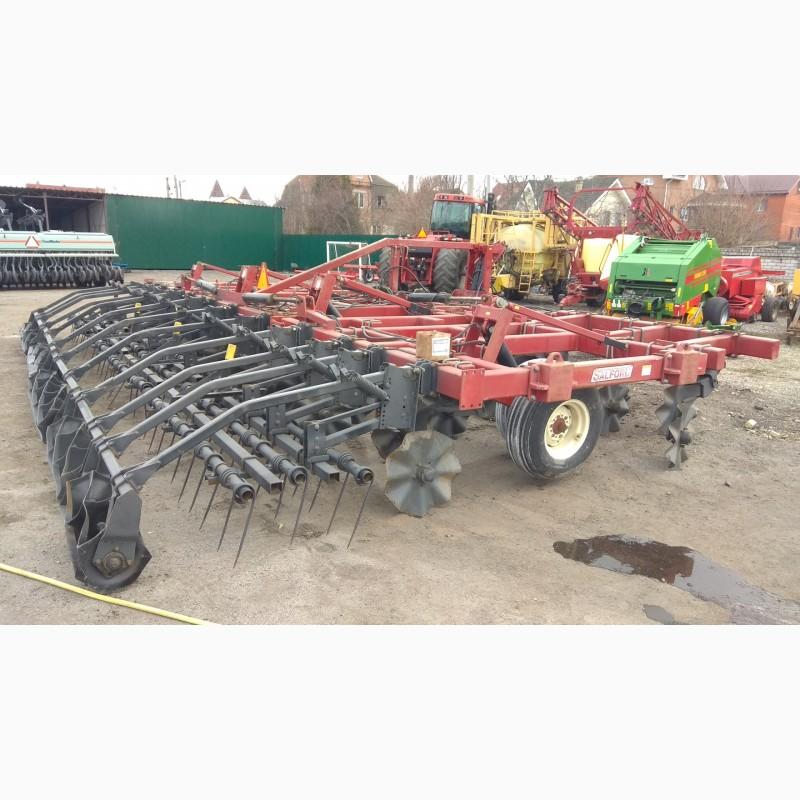

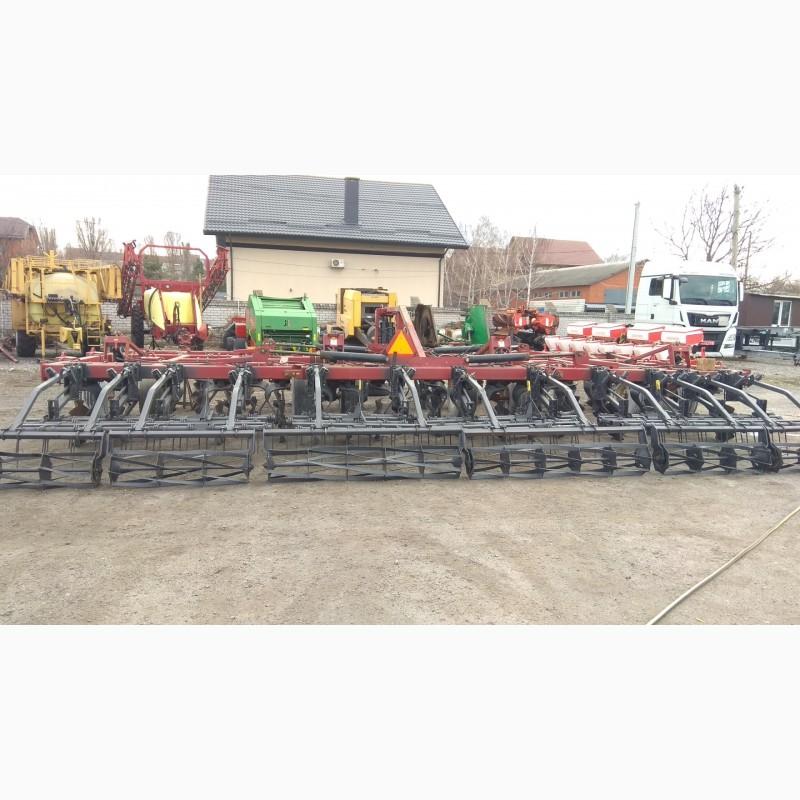

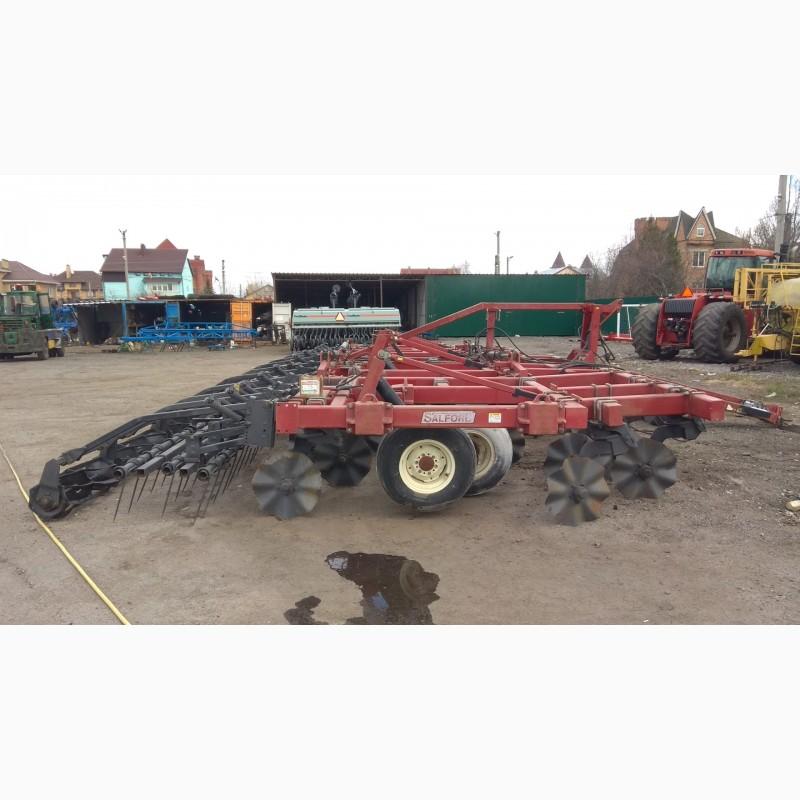

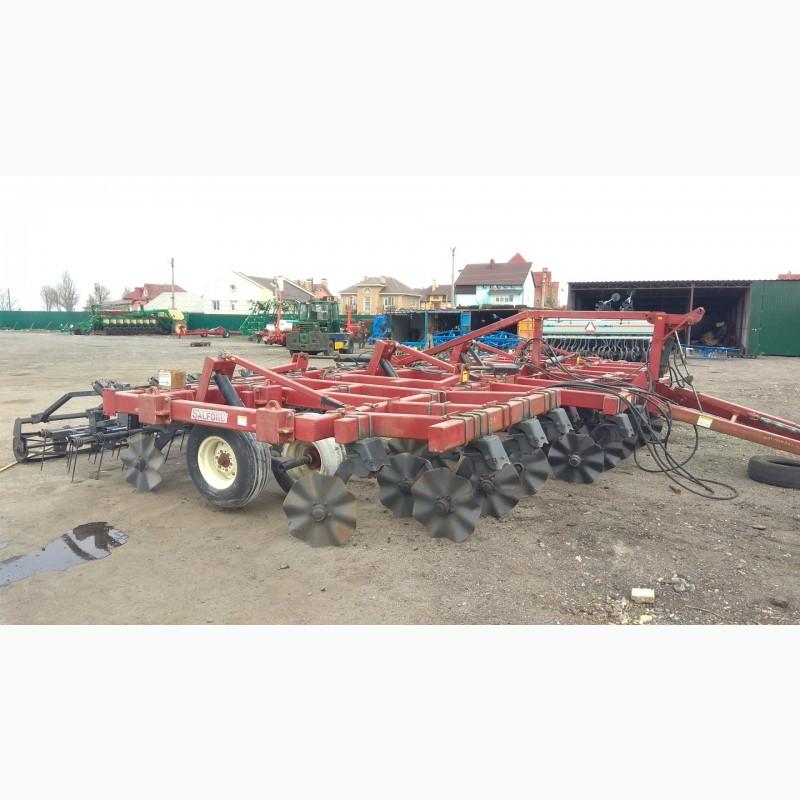

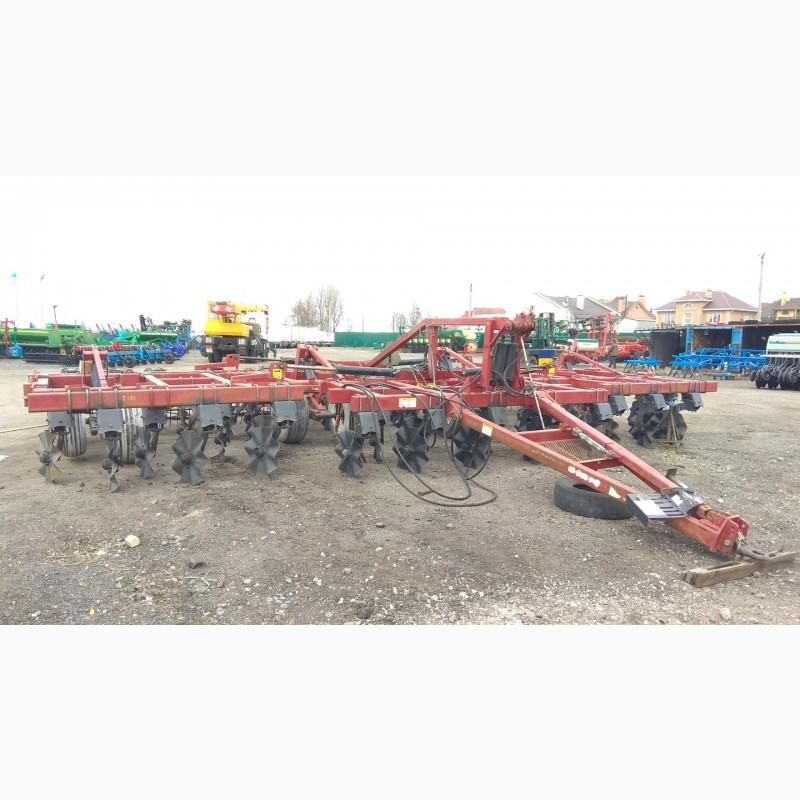

Salford 570 RTS 8, 5m disk turbo cultivator, Dnipropetrovsk region.

Disk implements Salford are designed for vertical, which destroys soil compaction and accelerates the mineralization of crop residues.
A special feature of the tool is the multi-row arrangement of disc working bodies on individual racks. This design allows working in difficult field conditions, such as high humidity, large and poorly distributed crop residues. The ability to develop a high operating speed and, like jackhammers, to destroy the seal makes the Salford a truly unique tool.
"jackhammer effect" - a force of 100-180 kg, with a frequency of 25-45 Hz allows crushing the soil around the treated area and destroying the layer of sub-plow sealing.

The working width is 8.5 m.
Number of frame sections – 3 pcs.
The number of racks is 49 pcs. 150
Транспортна висота – 3,96 м
Transport width - 4.78 m
Working speed - up to 25 km/h
The weight of the unit is 8.94 t
Tractor power - 280 - 390 hp(//tractor-service.com)

Reinforced steel ribsrollers 35.6 cm in diameter
5 individual pressure settings
Bearing 38 mm with a triple gland.
Resistant to damage even with aggressive processing

Parametersworking disks
Diameter 560 mm, thickness 5 mm
boron steel
13 wavy discs on the front rows - for heavy clay soils - wave width - 3 cm.
8th wavy discs - for light soils, normal processing and conservation - wave width - 6 cm.
The vertical stroke of the rack is up to 17.8 cm
