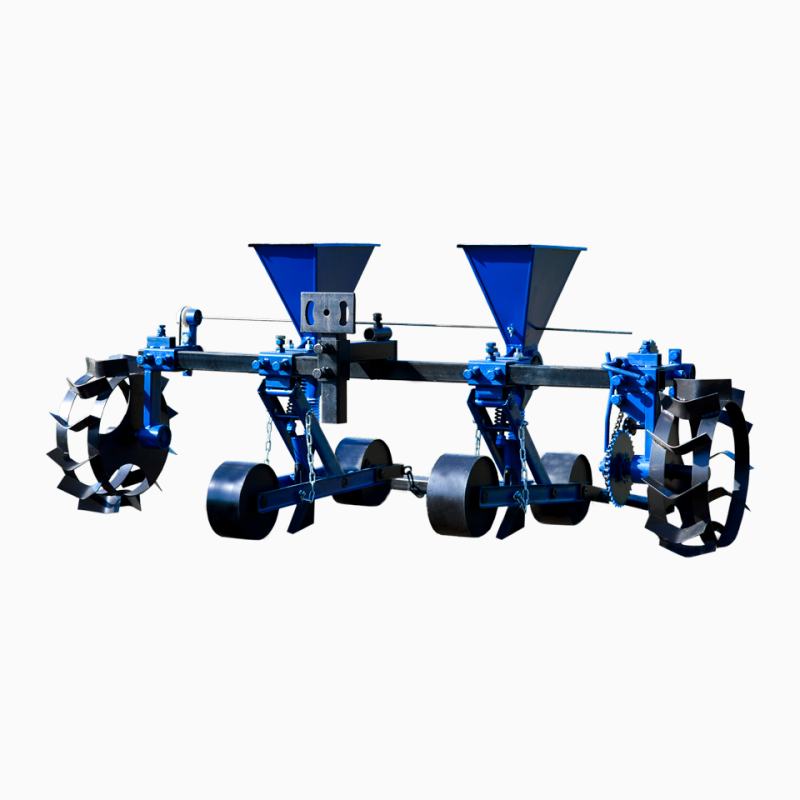

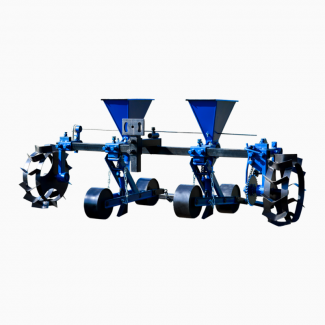

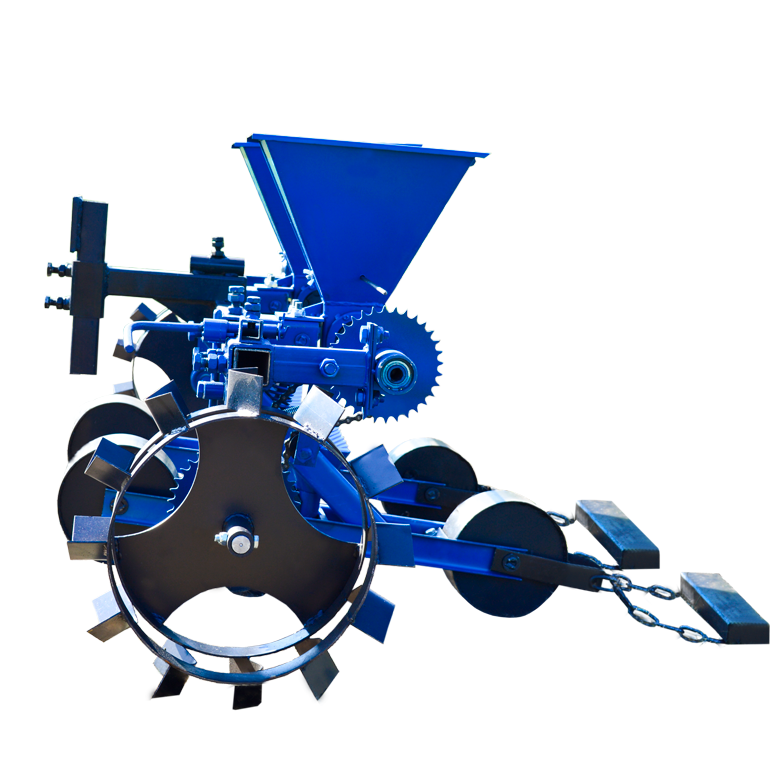

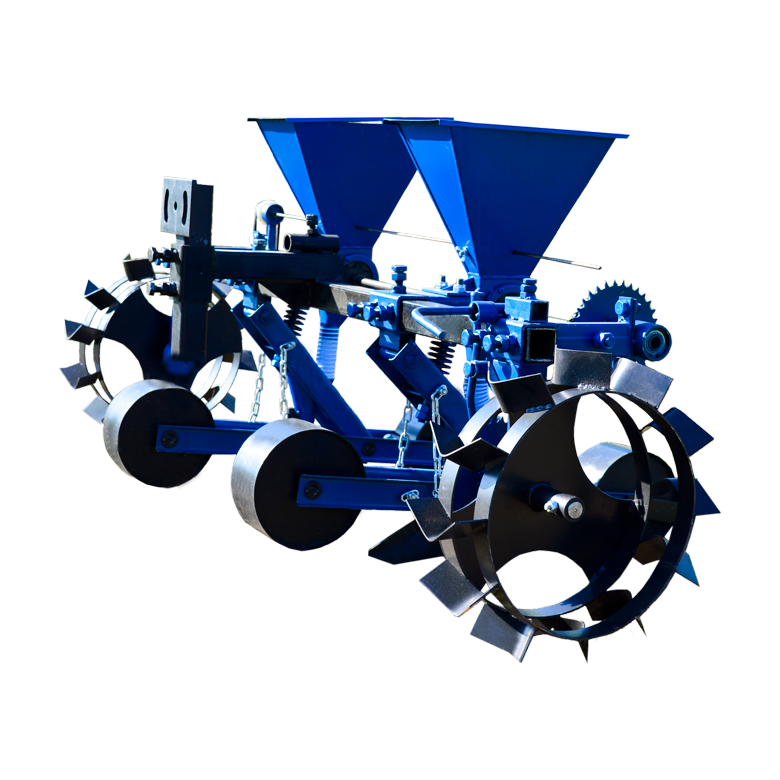

Seeder 2-row for walk-behind tractor (vegetable), СІ1, Kyiv

The seeder is designed for accurate row sowing of vegetable seeds on pre-treated and prepared soils, with soil moisture not exceeding 30%. Vegetable seeder formotoblock STV-2 sows 2 rows at the same time. Can be aggregated withmotoblocks (power from 6 hp) andmotor tractors.

The type of dosing device is brush-cell.
The type of opener is naralnik (keel-shaped)
The type of wrapper is combined
The type of mechanism for transferring rotation to the shaft of the dosing drums is chain (there is a clutch for disconnecting the drive)
The step of sowing in a row is adjustable (depends on the installed drum and the transmission ratio on the dosing device)(//tractor-service.com)
Seed wrapping depth, cm 1-6
Row width, cm 16-70
Hopper capacity, l 3
Working speed, km/h 3-4
Track width, mm 1370
Wheel diameter, mm 360
Overall dimensions, mm 1480x650x650
Weight, kg 46.2
