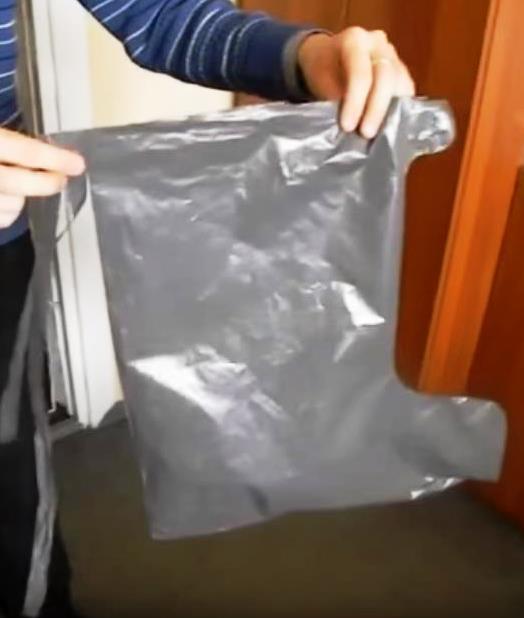

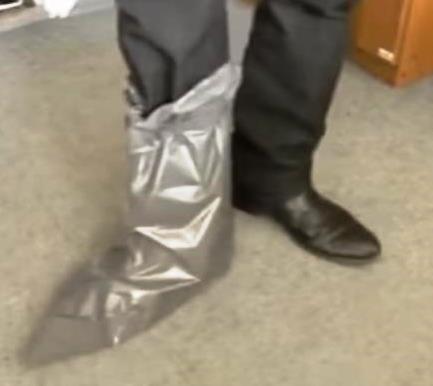

Equipment for manufacturing curved film products: shoe covers, gloves, etc. Kyiv

Appointment:

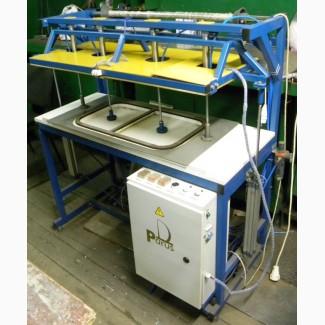

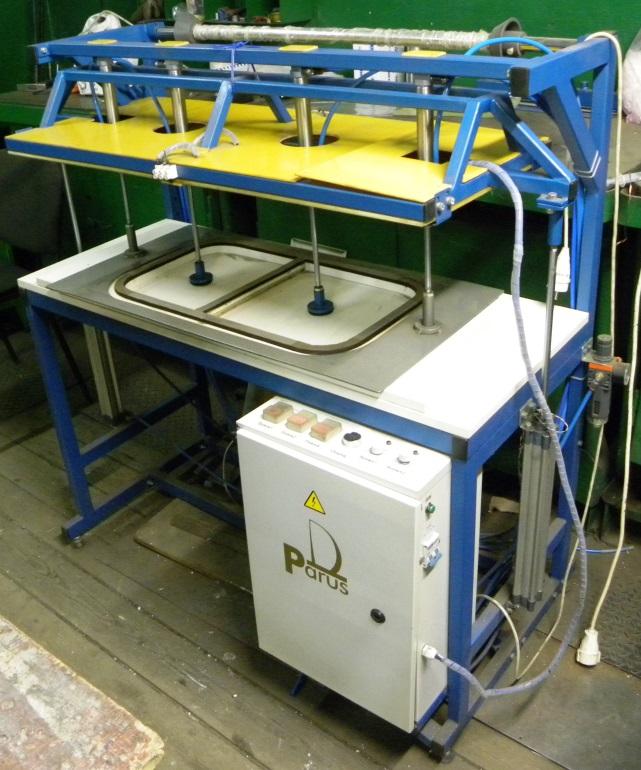

The installation is intended for the production of packages and other products of curved shape (any configuration), from polymer film materials, in a semi-automatic mode.

Description of work

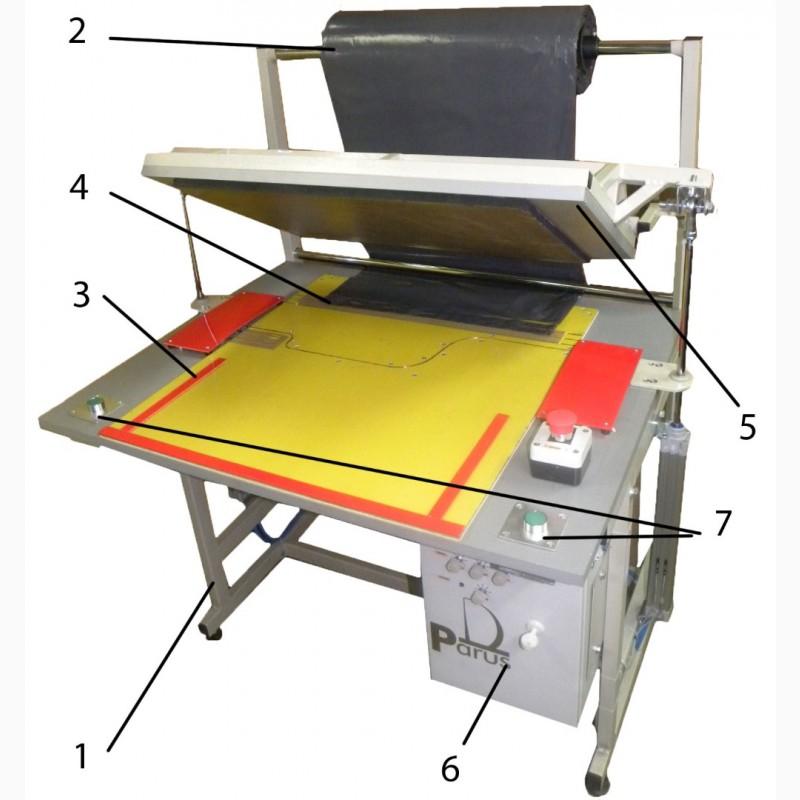

The roll film material is installed on the roll holder and stretched through the guide rollers to the work table of the installation. Using positioners, the film is placed on the desktop.

By pressing a button, the operator lowers the clamping traverse onto the work table with the film material. When the plate is pressed against the surface of the work table, pulse heating of the tool is automatically switched on, according to the sealing parameters set on the control unit. At the end of the sealing process, the pulsed heating of the curvilinear cutting tool is turned on, forming a closed "trim seam" around the perimeter of the entire product. At the end of the cycle, a sound and light signal is given on the installation unit.

After pressing the button, the pressure plate rises and turns at an angle, freeing access to the surface of the desktop. The operator removes the finished product and film, stretches the film from the roll to the table to repeat the process.

Advantages:

The design of the installation, the type of drive and the control unit allow you to adjust the machine when changing the type and thickness of the material used:

speed and smoothness of movement of the movable traverse;

regulation time of tool heating and cooling of the seam under pressure.

Automatic lifting of the movable traverse at the end of the installation cycle.

Basing on the installation of one or more rolls of materials.

Installation (if necessary) of positioners for the product inserted into the product.

Ease of operator work (sitting).

Safety of the operator due to the removal of the control buttons from the pressure zone.
(//tractor-service.com)
Low energy consumption and connection to a single-phase network 220 W, 50 Hz.

Ease of transformation of the installation, under the product of various configurations.

Technical characteristics

Pressing plate - 1000 x 500 mm (may vary depending on the dimensions of the finished product);

The instrument is special (configuration according to the order)

Heating - impulse (configuration according to the order);

The welding time is adjustable (up to 15 seconds);

Roll holder - 1 pc. (configuration according to the order);

Connection - 220 V; 50 Hz ;

Welding force - up to 6 atm;

The cycle time is (no more than) 15 seconds;

Operator - 1 person;

The installed power is up to 2.5 kW;

Air consumption -140 l/min;

Warranty - 12 months.

Own production.
