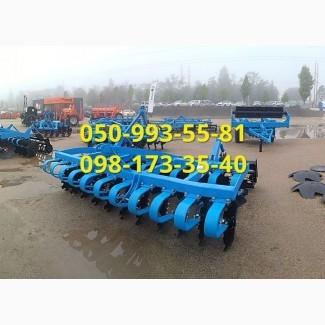

HIT - NEW! ЛУШЧИЛНИК тяжелый навесной LDVN-2.4 LDVN-3, Zaporizhia region.

HIT - NEW!SCREWER heavy hinged LDVN-2.4 LDVN-3,disc. GOS compensation up to 40%. The LDVN-2.4, 3.0 cultivator is intended for basic and pre-sowing soil treatment for fodder and technical crops, stubble husking, which in one pass allows you to completely destroy weeds, perform cultivation to a strictly specified depth, loosen, level and sufficiently compact the soil to avoid moisture loss, fully prepare the soil for the following agrotechnical operations.

Technical characteristics.
Name of LDVN - 2.4 LDVN - 3.0
Hinged Type
Working speed 10-14 km/h
The depth of soil treatment is 5 - 15 cm.
Height 1100 mm.
Long with roller 2180
Width. 2490 mm. 3030 mm.
Productivity 2.5 Ha/h. 3.2 Ha/h.
Tractor power 80 ÷ 100 HP. 100 ÷ 120 hp.
Transport speed, no more than 20 km/h.
Ground clearance, not less than 570 mm,
Number of working bodies 18 racks 22 racks
The distance between adjacent working bodies is 270 mm.(//tractor-service.com)
Disc inclination angle 10.5°
Angle of attack 19°
Disc diameter 560 mm.
Number of rollers 1 roller
Weight 950 ± 20 kg. 1230 ± 20 kg.

Working body: Disk with a diameter of 560 mm. (cut-out sphere - daisy), without a central hole, is attached to 4 M12 bolts. The hardness of the disc is 36...42 HRC units.
Reduction of fuel consumption by at least 15-25% (due to reduction in traction resistance);
Protection: the bearing unit when hitting any obstacles excludes the failure of discs, bearings, racks, damage to the frame;
Uniform depth of processing, due to the fact that the peeler does not deepen when the disc hits an obstacle;
Self-cleaning of discs during work allows you to work effectively on wet soil.
They can also walk on harder soils, on a larger amount of harvest residues.
Note: The hinged peeler is equipped only with a spring, if necessary, the spring support is purchased separately (the possibility of installing the spring support is provided)
The original design of the rink does not have a central axis and consists of a strip of 8x40, thanks to which the rink does not clog even in conditions of high humidity and in conditions of strong field contamination.
