Hydraulic disk tree trimmer Izmchitel vetok Tractor Mtz John Deere, Cherkassy region.

Shikiv SF-6000 hydraulic disk tree trimmer is designed for trimming forest protection strips and plantings along public roads and around agricultural land, thickets of trees and bushes, etc. This technique can also be used for seasonal pruning of perennial garden plants and decorative hedges.
Tree trimmers are manufactured on high-precision equipment with software, which makes them high-quality and reliable and guarantees a long service life of the units.
The SHKIV SF-6000 tree trimmer is equipped with three disc saws with a total width of the cutting part of 1.6 meters. The hydraulic system provides a rise to a cutting height of up to 6 meters. Convenient control of the hydraulic system is carried out using a joystick.(//tractor-service.com)

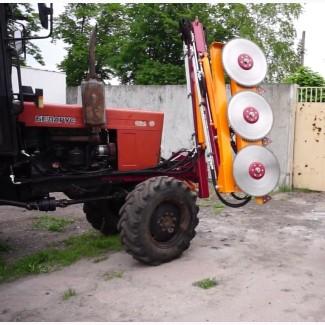

The cutter for trimming trees is attached to thetractor MTZ-80, (-82) and the like in the standard holes of the front beam and to the spars. The oil station is installed on the rear hitch of the tractor and is connected to the PTO by a cardan shaft and is used exclusively to transmit torque to circular saws. The hydraulic cylinders that control tilting and lifting of the cutter boom operate from the tractor's oil station. Switching between cylinders is carried out using an electric valve from the cabin. Control of revolutions of circular saws is carried out using an electronic tachometer.
Recommended GDP rotation 1000 rpm. The weight of the oil station withoutoil -160 kg. The volume of the tank is 80 l. The nominal pressure of the oilpump 16 MPa. Number of saws 3 pcs., diameter 600 mm. The cutting height is up to 6 meters, and the hydraulic control allows for horizontal cutting of shrubs and small forests in soils whose surfaces have been previously cleaned of stones and boulders. The maximum diameter of branch trimming is 160 mm for vertical trimming and 80 mm for horizontal trimming.
Extensive work experience has allowed us to introduce the most optimal solutions with a large safety margin for branch shredders, which makes our products competitive, reliable and long-lasting.
