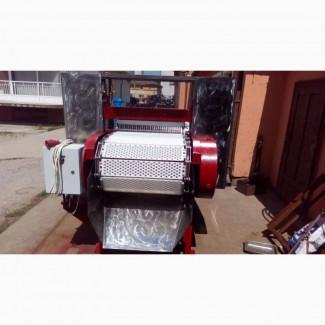

M-150 cherry pitting machine, Donetsk region.

The M-150 machine is intended for spot removal
pits from cherries at processing plantsfruktov.
M-150 is primarily intended for work with fresh
ягодой, although good results can be obtained.
made with frozen cherries. In the case of work with
frozen berries certain conditions must be maintained
temperature regimes.
Productivity may vary depending on the type and variety of fruit and
fruit size The specified productivity is calculated at
the speed of the beat is 50 beats per minute. The maximum speed can reach 149
быть увеличена до 55 ударов в минуту. (//tractor-service.com)
TECHNICAL DATA:
1. CHERRY
- The number of holes on one plate is 150 pcs.
- Number of head hits 50 min¯¹
- Productivity (estimated) 450,000.00 pcs / h
- The size of the hole of cherries andcherries
Diameter 18, 22, 24 mm (by agreement).
Dimensions according to the drawing below.
Installed power:
- Drive motor: 1.5 kW
- Brush drive: 0.33kW
- Water consumption: 0.5m3 / h
