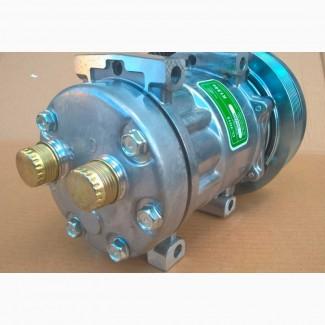

Compressor 7H15 (Guchen Thermo, China.), analogue of Sanden SD7H15 8220, Kharkiv region.

Replaceable with original compressors Sanden SD7H15 8220, Dyne 7H15, Terra Frigo TF7H15, Motorcool RC-U0811 7H15, Valeo TM15, Yug Frost YF7H15 and their analogues.
Parameters:
• Power supply voltage of the electromagnetic clutch 12V.
• 7th piston. Productivity 154 cm³/rev.
• Material of piston compression rings: steel
• Pulley diameter 132 mm. Pulley A2 (for 1 or 2 V-belts AX10 - AX13).
• Refrigerant type R134a, R404a, R507.
• PAG SP-20 oil (or similar), volume not less than 180 cm³ (depending on the type of refrigeration unit).
• The maximum permissible speed of rotation of the compressor shaft, rpm 6000
• The maximum continuous speed of rotation of the compressor shaft, rpm 4000
Weight 7.2 kg(//tractor-service.com)
The distance between the fastening "ears" of the 7H15 compressor is 83.3 mm.
The back cover of the compressor:
• Type JE - vertical outlets for fittings with O'Ring: high pressure (discharge) HP - nut 3/4', fitting #8 1/2' (10mm), low pressure (suction) LP - nut 7/8', fitting #10 5/8' (13mm).
• Without refueling ports.
Attention! This type of compressor requires a mandatory oil change before installation. It is supplied filled withtransport oil PAG, which must be replaced with compressor oil PAG SP-20 (or similar) and in the amount required for this refrigeration unit, but not less than 180 ml. Also, when replacing the compressor, it is necessary to replace the filter-drier, oil separator and wash the TRV network. In case of destruction (grey metallic oil) or overheating (black oil) of the old compressor, a complete flushing of the refrigeration unit is mandatory before installing a new compressor.
• Package dimensions, mm 285x210x205
Applicability: refrigerators
Ref, Terra Frigo, Elinje, Vyuga (Russia)
Fridge (Kazakhstan), Dongin Thermo (South Korea), Hwasung (South Korea)
Thermal Master (South Korea), Hyundai (South Korea), Zanotti (Italy), Alex Original (Israel), Thermo King (USA), Carrier (USA), etc.
Warranty - 6 months
