Bactericidal lamp TUV-30 B without ozone formation, Zaporizhia region.

Bactericidal lamp TUV-30 B without ozone generation.

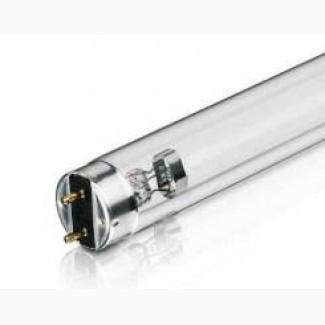

Quartz ultraviolet lamp. It consists of a tubular glass body and a metal base of type G-13, from both ends. When working, it emits short-wave ultraviolet rays with a wavelength of 253.7 nm (UV-C), which have a bactericidal effect. Ozone-free bactericidal lamps TUV-30 B have glass with a coating of titanium oxide, which allows filtering the ozone-forming spectral line of 185 nm, thus preventing the appearance of ozone (harmful to humansgas), and the internal protective coating maintains useful radiation at a constant level. After using the ozone-free bactericidal lamp TUV-30 B, ozone is not formed and ventilation of the room is not required!
Field of application:
Hospitals;
Polyclinics;
Sanatoriums;
Medical institution laboratories;
Sports halls;
Swimming pools;
Food industry;
Pharmaceutical productions;
Places of mass gathering of people.
TUV-30 B bactericidal lamps are used in a set with various lamps and throttle-type installations (OBN-75, OBN-150, OBN-450, OBP-300, ORUB-03, OBP-225M, OBP-450M, etc.). In the case of using an open-type lamp, the presence of people and animals without special protective equipment is not allowed in the room.

Certificate of conformity UA11.035.00095-18

Technical characteristics
Base type G13(//tractor-service.com)
Lamp current, A 0.37
Bactericidal stream, W 15.7
Lamp voltage, V 100
Service life, hours 6000
Flow decline after 5000 hours of operation, % 15
Dimensions, mm:
– A (max), mm 894.6
– V (min), mm 899.3
– V (max), mm 901.7
– C (max), mm 908.8
– diameter (max), mm 28
Overall dimensions withpacking, mm 1000x30x30
Mass, kg 0.1
Bactericidal lamps (UV lamps) are used in installations for neutralization of bacteria, viruses and other microorganisms.

They are intended for disinfection of air, water and surfaces, as well as medical instruments and materials.

The technical parameters are confirmed by the certificate of conformity.
