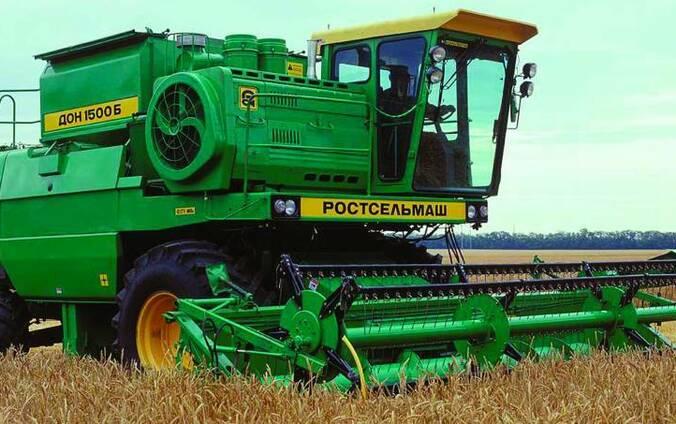

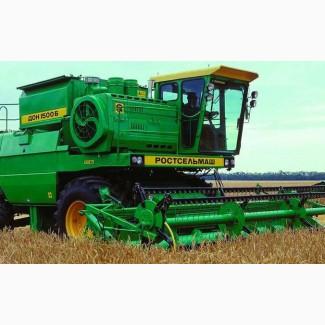

Air conditioner with hood condenser for grain harvester Rostselmash, Kharkiv region.

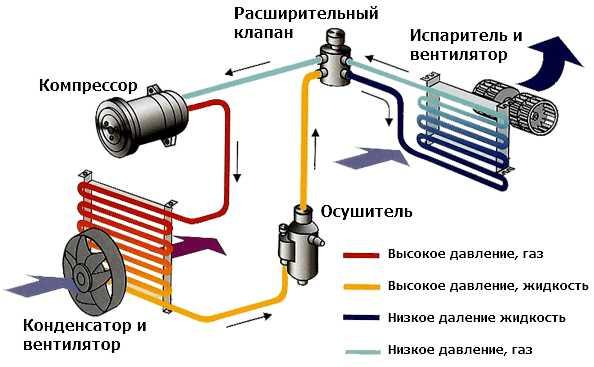

Air conditioner kit:
Compressor Sanden 5H14
Type: piston with inclined washer
Angular speed: 700 - 6000 rpm
Oil: SP-20
Power supply voltage: 12 V
Pulley type: wedge A2
Evaporative heating unit as a whole
Type: hanging, tube-plate
Overall dimensions (WxDxH): 400x305x156 mm
Cooling power (cooling capacity): 4.5 kW
Heating power (heating capacity): 6 kW
Fan capacity: 600 m3/hour
Power supply voltage: 12 V
Weight: 4.3 kg(//tractor-service.com)
Capacitor
Type: soldered
Overall dimensions (WxDxH): 14”x16”x22 mm
Weight:- 3 kg
Receiver-dryer with a pressure sensor as a whole
Pressure sensor: dual contact
Pressure of turning on the compressor, not less than: 2 kg/cm2
Compressor shutdown pressure, no more than: 32 kg/cm2
Hoses (4pcs)
Capacitor - filter; Evaporator filter; Evaporator-compressor; Compressor-condenser
The air conditioner set can be mounted ongrain harvesters:
"Niva" SK-5ME-1; Don-1500 and modifications, Don-1200, RSM-100 "Don-680M" ;
RSM-101 "Vector-410"; RSM-142 "ACROS-530"; RSM-142 "ACROS-560"; RSM-142 "ACROS-580";
RSM-142 "ACROS-590"; RSM-152 "ACROS-590 Plus"; RSM-181 "TORUM-740".
Details on the S-climate website and by phone. Call. Order!
