Stationary crushing plant Polygonmach 350-400 t/h (Turkey), Kyiv

Stationary crushing plant Polygonmach 350-400 t/h (Turkey)

Productivity 350-400 t/h

Loading size 1300 * 1000 mm

The total capacity is 1621.8 kW.

Description

VIBRATING HOPPER 50 m3 - GRIZZLY 1400*5500 mm

Jaw crusher, 1,300 x 1,000 mm

Belt conveyor - 1,200 x 8,000 mm

Belt conveyor - 800 x 13,000 mm

GRIZZLY Vibration screen 1.6 x 5 meters 2 levels

Belt conveyor - 1,200 x 32,000 mm

Vibrating hopper with feeder - 35 m3

Cone crusher, METSO HP 400

Belt conveyor - 1,200 x 27,000 mm

Vibrating screen 2.4 x 6 meters, 4 levels

Belt conveyor - 800 x 33,000 mm

Belt conveyor - 1,000 x 38,000 mm

Vibrating feed hopper – 50 m3

Impact crusher with a vertical shaft - VSI 900 CR

Belt conveyor - 1,200 x 8,000 mm

Vibrating screen 2 x 6 meters, 4 levels

Belt conveyor - 800 x 12,000 mm

Belt conveyor - 800 x 6,000 mm

Belt conveyor - 800 x 20,000 mm

Control system, wiring and automation system

Technical parameters of the crushing plant and screening system.

Loading funnel and GRIZZLY FEEDER

• Dimensions: 1,400 x 5,500 mm

• Hopper volume: 50 m3

• Feeding capacity: 400 - 450 tons / hour.

• Grill size: 1,460 mm

• Thickness of the main body: 20 mm

• Body cladding: HARDOX 450 - 10 mm

• Weight: 25.5 tons

• Vibration motors: 2 x 14.2 kW - brand OLI, origin: ITALY

Viewing platform included

Primary jaw crusher:

• Size of loading hole: 1,300 x 1,000 mm.

• Productivity: 400-450 t / h

• Maximum feed size: 1,250 x 950 mm

• Power: powerful AC motor, 160 kW, 1450 rpm - brand EMTAŞ

• Jaws and abrasive parts: Specially processed abrasive steel

• Abrasive processing of steel: austenitic

• Abrasion - content of austenitic steel:

• % 16-18 Mn +% 2.2 Cr

• Abrasion - hardness of austenitic steel> 450 HB

• Pitman: GS 45 cast steel

• Rotating (eccentric) mile / shaft: Cr - Ni - Mo forged steel

• Bearings: reinforced

• Jaw crusher adjustment mechanism: Mechanical

• Coating: two-layer epoxy coating after one layer of anti-corrosion paint

• The service monitoring platform is present.

Weight: 42.5 tons

Cone crusher

· Brand: METSO

· Model: HP 400

· Motor power: 315 kW

· Weight 23 tons

· Supports, viewing platform are included.

· PLC and hydraulic system are present.

Impact crusher with a vertical shaft - 2 sets

Model: VSI-900-CR

Maximum. Loading size: 45 mm.

Rotor size: Ø900 mm.

Rotor speed: 50 - 70 s / sec.

Productivity: 200-250 t / h,
(//tractor-service.com)
80 t / h for 0-5 mm.

Engine power: 2 * 200 kW.

Weight: 15 tons

Crusher body material: St 37 A1 Quality, thickness 20 mm.

Main chassis: NPU 350 mm.

V-belts: SPC 4900 12 pcs (6 pcs per engine), width: 22 mm

Bearings: Brand: SKF, Model NU2326 (2 pieces), Brand: SKF, Model: 6326 (1 piece)

The rotor has 4 cameras

Material of wear parts of the rotor: 21 Cr 1.5–2 Mo

Wear-resistant plates of the upper rotor: HARDOX 400 - 8 mm

Material of the grinding tip: tungsten carbide

The adjustment of the rotor and the engine is carried out by a hydraulic cylinder.

Power of the motor of the hydraulic unit: 2.2 kW

The chassis, inspection platform and crane maintenance line are included.

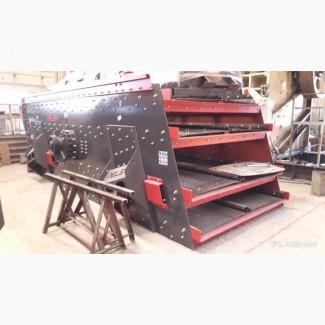

Vibration screens

Screen 1: Model : CVS-2460/4

Size: 2,400 x 6,000 mm Screen levels: 3 pcs. Screen area: 14.4 m²
Engine power: 2x22 kW

Screen 2: Model: CVS-2060/4

Dimensions: 2,000 x 6,000 mm Screen levels: 4 pcs. Screen area: 12 m² Motor power: 30 kW

Screen tilt: 18º

Stroke: 6 - 8 mm

Flow speed: 0.45 m/s

Thickness of the main body: 12 mm

Bearings: SKF or FAG, Made in Germany

Unloading plates are covered with HARDOX 450 – 10 mm

The weight of the screen sheets is 26 tons.

GRIZZLY Vibration screen:

Model: CVS-1650/2

Size: 5,000 x 1,600 mm

Level Screen: 2

Screening surface: 8 m²

Motor power: 11 kW

Screen tilt: 18º

Stroke: 6 - 8 mm

Feed speed: 0.45 m/s

Thickness of the main body: 12 mm

Unloading plates covered with HARDOX 450

Weight of the screen: 14 Tons

Bunker and vibrating probe

Bunker 1: 35 m3 (above the conecrusher)

Electrical power motors: 2 x 2.4 kW, 1,500 rpm.

Case thickness: 6 mm

Weight: 7.4 tons

Bunker 2: 50 m3 (above the VSI crusher)

Email motor: 4 x 2.4 kW, 1,500 rpm. Case thickness: 6 mm

Supply conveyors:

· Tape: EP125: 10 mm

· Drive drum: Ø420x12

· Drum tail: Ø373x10

· Bearings: FAG or SKF Brand

· Bushing: SNH-513

· Observation platform on all conveyors

· Option – special painting.

Control room and computer system.

· Size: 2200x4.000x2200 mm

· Electronic equipment: EATON Brand

· Air conditioner - 9,000 BTU

· Heat- and noise-insulated cabinet with PVC door and windows.

· The wiring between the equipment and the control panel is included.

Warranty 24 months.

The manufacturer carries out chief installation and personnel training.

The official representative of the manufacturer - the Turkish company Polygonmach offers high-quality equipment at minimal prices and convenient delivery conditions.

The official representative of the producer company offers minimal factory prices.

Delivery of equipment to any region or country.

The manufacturer carries out chief installation and personnel training.

To receive a commercial offer, please send a request to our e-mail.
