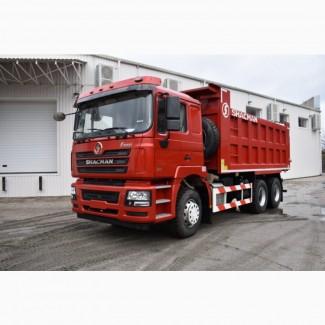

SHAKMAN dump truck 30 tons, Kyiv

Tipper Shakman SX3258DR384
Official importer!
Possible loan, leasing!
Carrying capacity, kg - 30000;
Wheel formula - 6x4
Body volume, cubic meters - 19.3 (P-shaped)
Engine - WEICHAI WP10.336E53 (EURO-5);
6-cylinder, in-line diesel with turbocharging;
Engine power, hp - 336;
Working volume of the engine, l - 9.7;
Maximum torque, Nm (rpm): 1500 (1200-1500);
Gearbox - Shaanxi Fast Gear 12JS160TA, mechanical, 12-speed, forward – 12 reverse – 2, synchronized;
Front axle: 7.5t (MAN license), spring, with hydraulic shock absorbers, with anti-roll bar
Rear truck: 16t (MAN license), balancer, with reactive rods, with anti-roll bar, two-stage retarder, with inter-axle and inter-wheel differential lock;
Power system:
Bosch Common Rail
Direct fuel injection with a common ramp;
Bosch fuel injection pumps and injectors;
Air filter: Fleetguard, centrifugal, dry type;
Clutch - EATON 430mm, dry, single disc with diaphragm spring;
Hydraulic drive with pneumatic amplifier;
Main gear: Two-stage gearbox with wheel planetary gear;
Gear ratio 5.262;
Hydraulic booster ZF 8098, integral type;(//tractor-service.com)
Brake system:
Working brake system: WABCO, pneumatic, two-circuit drive separately for front and rear wheel brakes, drum-type brake mechanisms on all wheels, AVS
Brake system: mechanical drive from spring energy accumulators towheels rear axle;
Spare braking system: motor brake-retarder with flap in the exhaust gas release system;
Tires - 315/80R22.5, tubeless;
Hydraulic cylinder of the front position (location behind the cabin);
Platform lifting angle up to 45°;
Dump platform:
Body volume, cubic meters: 19.3
All-metal U-shaped body with rear unloading, heated by exhaust gases;
Body dimensions: length / width / height, mm: 5600 / 2300 / 1500
The thickness of the metal of the bottom / sides, mm: 10 / 6;
Overall dimensions: 193
Длина / Ширина / Высота, мм: 8329 / 2490 / 3450;
Wheel base, mm: 3800 + 1350;
Track front/rear wheels, mm: 2036 / 1850;
Minimum clearance, mm - 314;
Maximum speed, km/h - 90;
Minimum turning diameter, m - 9;
The volume of the fuel tank, l - 380 (with electric heating);
AdBlue tank volume, l - 40;
Cabin: German MAN license, insulated, all-metal, two-seater, with one berth.
Pneumatic driver's seat with armrests, climate control, electric windows, heated rear view mirrors, tilt and height adjustable steering column, wide-angle rear view mirrors, LED daytime running lights, fog lights, MP3 / USB radio.
Cabin suspension - four shock absorbers, rear shock absorbers with a hydraulic lock, triplex windshield, three-speed windshield wipers.
