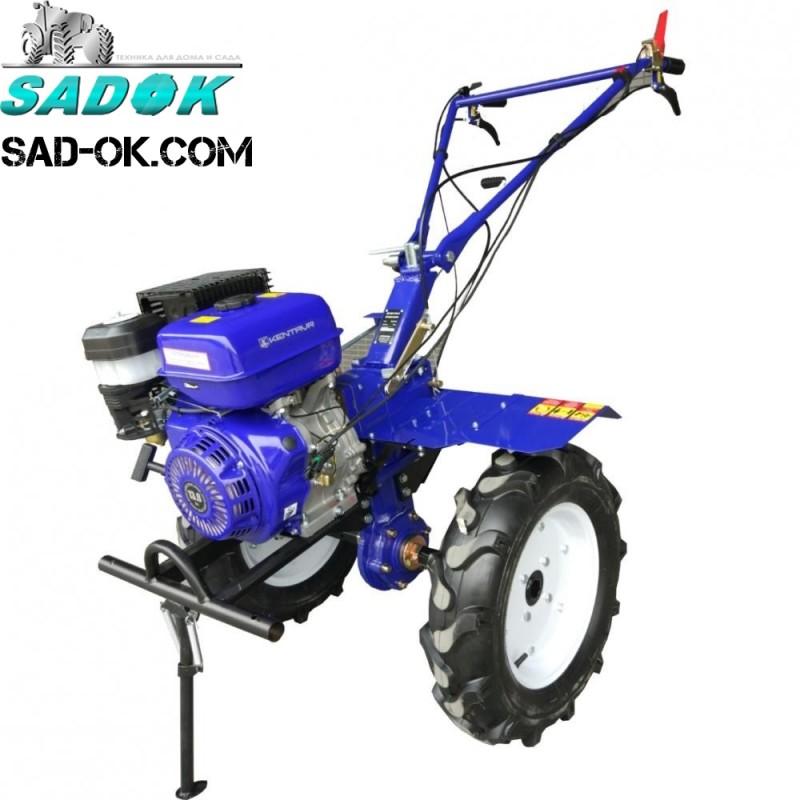

Motoblock Centaur MB 2017B-4 17 hp. Kolesa 5, 00-12 Gasoline, Zaporizhia region.

Instead of MB 2090B-3 walk-behind tractors, new models MB 2013 B-4 and MB 2017 B-4 (17 hp; gasoline; manual starter) came.

Characteristics of MB 2017B-4:

1) collapsible milling cutter (3+1+1)
2)wheels 5.00-12
3) piston diameter and stroke 88x64
4) manual starter
5) steering wheel adjustment left-right and up-down
6) filter with oil bath
7) muffler with protection against prixnovenia
8) soft handle
9) saber-shaped knives (thickness 6 mm, length 235 mm)
10) the thickness of the wings is 2 mm.

Centaur MB 2017B-4. This is an excellent unit that is ready for significant loads and a long service life. This is a novelty on the Ukrainian market, which is an excellent price solution. It is based on a gasoline four-stroke engine with a capacity of 17 hp. This power was chosen for a reason. Now there is even a heavy weight on the shoulder. The kit includes a collapsible milling cutter that is mounted in place of the wheels. When using the latter, the unit turns into an excellent conveyor. The start is manual, but it is carried out quite simply, since the transistor ignition perfectly copes with its tasks. Other control elements are placed on the steering wheel, so you don't have to reach for them. The holders are adjustable in height to choose the best parameters for the specific height of the owner. A filter with an oil bath prevents the penetration of various solid inclusions that could harm the piston. Excellent maneuverability in wet soil is due to the possibility of choosing one of two speeds forward and one backward.
Field of application:
Centaur MB 2017B-4 is an excellent device that will do almost all the processing during loosening, plowing and cultivation of the plot. Indispensable for home use, as well as for small farms.

Features and possibilities:

Compact dimensions;
Small weight;
Powerful engine;
Ease of management;
Several speeds of movement;
Filter in an oil bath;
Big wheels;
Collapsible cutter;
Saber-shaped knives;
Manual starter;
Muffler with touch protection.

Centaur MB 2017 B-4 motoblock is a reliable model with a good set of functions and excellent operational characteristics. Centaur MB 2017 B-4 does not require special skills from you to work, and it will easily cope with the tasks set before it. This model works on the basis of a four-stroke single-cylinder engine with a capacity of 17.0 hp. and with a cylinder volume of 389 cubic cm. Due to economical fuel consumption and a capacious 6.5 liter tank, this model is able to operate autonomously for a long time without stopping. Large wheels ensure good cross-country ability and ease of movement, and two forward and reverse gears guarantee good maneuverability. It should also be noted that the width of the grip for the Centaur MB 2017 B-4 is 140 cm, as well as its working depth in the range of 15-30 cm.

Motoblock Centaur MB 2017 B-4 is a self-propelled unit intended for work on medium and large plots of land with an area of 1 to 4 hectares.
A four-stroke single-cylinder gasoline engine with a high power of 17 hp is installed on the walk-behind tractor. It has a high working resource and provides high performance of the unit. The motor perfectly copes with heavy loads, as it is adapted to work in the mode of intensive operation in any weather conditions. It is also equipped with an automatic speed regulator. The air cooling system, which prevents the engine from overheating and premature wear, is the key to the correctness and stable operation of all engine elements.
The kit includes a cutter that is adjustable in width by sections 3+1+1, which allows you to adjust the processing width in 874-1136-1400 mm. Wheels with increased cross-country ability 5.00-12

Centaur MB2017B-4 motoblock is a self-propelled unit intended for work on medium and large plots of land with an area of 1 to 4 hectares. The operator participates in the operation of the machine as follows: he starts it, sets the direction and corrects it. Bringing the cultivator into action is carried out with the participation of a manual starter. Yes, the operator needs to pull a special manual cable to start the engine. Ease of use is due to the presence of height and width adjustable handles.Kentavr gasoline walk-behind tractor MB 2017 B-4 perfectly combines with various attachments and is used for: continuous plowing; training; inter-row cultivation; soil harrowing; weed removal; snow cleaning; cargo transportation; mowing the grass; other land works. Completeness of the model Centaur MB-2017 B-4 The presented Centaur motoblock is equipped with a four-stroke single-cylinder gasoline engine of high power (17 hp). It has an increased working resource and ensures high performance of the unit. The motor perfectly copes with heavy loads, as it is adapted to work in the mode of intensive operation in any weather conditions. It is also equipped with an automatic speed regulator. The key to the correctness and stable operation of all engine elements is the air cooling system, which prevents the engine temperature from rising to a high level and its premature wear. In the conditions of continuous operation, the MB-2017B-4 motoblock can work for more than two hours. The milling cutter is adjustable in width by sections 3+1+1, which allows you to adjust the processing width in 874-1136-1400 mm. Wheels with increased cross-country ability 5.00-12 Also included in the unit: an air-oil filter that prevents dirt and dust from entering the engine; protective covers over the cutter, preventing the splashing of mud and stones; stopping work when the operator releases the emergency stop handle; power take-off shaft for power transmission to additional equipment; wheels with deep treads; metal stop, used during a stop.

Centaur MB 2017B-4 gasoline motoblock is one of the most powerful gasoline-type motoblocks in the entire series of agricultural machinery from the Ukrainian manufacturer Centaur. This model is universal and high-powered, designed to work with areas up to 1.6 hectares, which makes it possible to use it not only in a private household, but also in agriculture or agrarian industry.

Centaur MB 2017B-4 gasoline motoblock is considered a multitasking device, in addition to inactive attachments, it is able to work with active attachments due to the presence of a power take-off shaft. Watering the garden, removing snow, mowing the lawn, harrowing the soil, cultivation and many other jobs, all this is quite possible when using the new model Centaur MB 2017B 4.

Regulation of width and depth of cultivation

The model provides for the possibility of adjusting the main parameters of the work in accordance with the tasks and the conditions of their performance when working in open areas, as well as in areas with a large key obstacle or limited access, a sectional set of cutters can be used to adjust the width of cultivation. The depth of soil cultivation is set by a forged coulter, which is securely fixed on the body of the walk-behind tractor.

Easy engine start

A manual starter system is used to start the engine. Despite its simple design, such a system is extremely reliable and guarantees an easy start, in addition, the "Easy Start" system guarantees a smooth and easy pulling of the cable.

Powerful engine

The model works on the basis of a gasoline four-stroke engine with an overhead valve system. Ego power is 17 hp. and it performs excellently in operation in any range of loads due to high-quality cooling and a large reserve of power.

Equipped withwheels

This walk-behind tractor comes complete with a set of pneumatic transport wheels 5.00-12 with a deep tread, which allows you to achieve the highest cross-country ability on any terrain.

Отличается економичностью

The engine consumes a record low amount of fuel, which makes the walk-behind tractor the most economical in its work.

Filter in an oil bath

Neither dust nor dirt will get into the engine system during the operation of the walk-behind tractor and will not disrupt its operation thanks to the high-quality air filter in the oil bath.

TECHNICAL PARAMETERS

Power 17 hp.

Power, kW 12.5
(//tractor-service.com)
Air cooling of the engine

Max. depth of cultivation, mm 300

The volume of oil in the engine crankcase, l 1.2

The volume of oil in the gearbox crankcase, l 2.6

Processing width, mm 1400

Adjustment of cultivation width Three adjustments

Piston stroke, mm 64

Number of gears back 1

The maximum frequency of revolutions of the crankshaft, rpm 4000

Engine brand DB 188F

Cylinder diameter, mm 88

Engine type Gasoline

Start type Manual starter

Engine volume, cubic cm 389

Drive Direct, through a multi-disk clutch

Transport wheels 5.00-12

The volume of the fuel tank, l 6

Min. depth of cultivation, mm 150

Number of forward gears 2

Clutch type Multi-disc in an oil bath

Transmission Gear reducer

Delivery in assembled form

4-stroke engine speed

Curb mass, kg 151

ADDITIONALLY

Manufacturer Centaur

Color Red, blue, green

Features

Designed for processing an area of up to 1.6 hectares; Tiller hubs are made of 3 + 1 + 1 sections; Easy engine start; It differs in economy; Equipped with an engine oil level sensor;

Cultivation width 880/1140/1400 mm.

Complete set

A walk-behind tractor, cutter and wheels are included.

The family of the brand Ukraine

Country of manufacture China

Warranty 12 months

Additionally

The characteristics and completeness of the product can be changed by the manufacturer without notice.

DIMENSIONS Height, mm 1080 Depth, mm 1730 Width, mm 985 Weight, kg 151 Weight of packaged goods, kg 151
