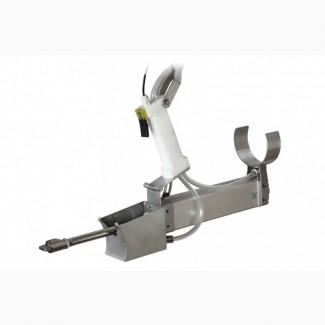

Pneumatic device for extracting ribs SFK SYSTEMS (Denmark), Lviv region.

Pneumatic device for rib removal, electric power.
The device is made entirely of corrosion-resistant materials and is approved for use in the production of food products.
Used pneumatic drive DZH - 40 FESTO.
It works when connected to the mains (230 V) and compressed air.
The device allows you to extract ribs with minimal loss of meat weight.
This makes work easier and speeds up the rib cutting process.

Technical characteristics:
Power: Electric, 230
Size: 460mm / 140mm / 380mm
Weight: 3.2 kg
Used drive: FESTO DZH 40
Piston stroke: 200 mm(//tractor-service.com)
Valve: electromagnetic FESTO compact version 24V DC
Power sources: electricity
Voltage: 220 - 240 V AC
Frequency: 50-60 Hz
Fuse: 1 A / 250 V
Pneumatic power supply
Necessary air pressure: 6 bar, clean and dry air
Minimum air consumption: 2.5 liters with full movement of the piston rod
Sensor type: Kontaktron SATEL
Operating parameters
Time of one full movement: 0.25 seconds
The average speed of the piston during movement: 1.0 m / s
The maximum speed of the piston movement during movement: 1.2 m / s. activities
